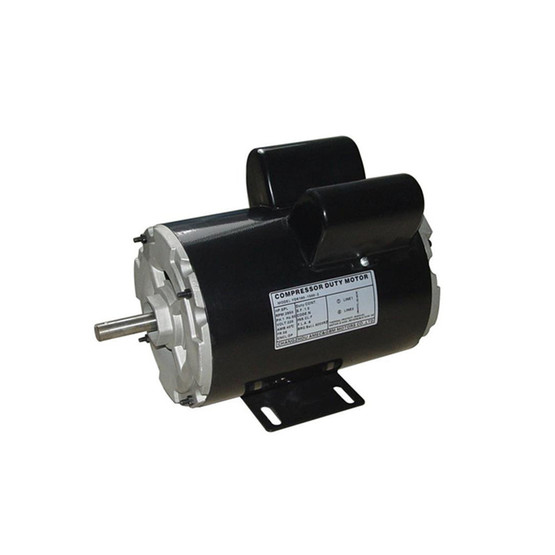

160mm frame size single phase AC motors capacitor - start 2-3 horsepower

Basic Info

Model No.: 160mm frame size single phase AC motors capacitor - start 2-3 horsepower

Product Description

Certification:	TS-16949/UL
Model Number:	YDK160

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 69.00-79.00
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	30000pcs/month

Features:

These series of motors are of single-phase AC ones with an outer diameter at 166/160cm for the stator.
This range of single phase AC motors is having the advantage of easy-to-install, stable running, low noise and long servicing life.
With one or more capacitors installed outside the motor, it is popular among our customers by having the performance of a big starting torque but with a small starting current.
The motor capacitance can be variable so as to ensure a perfect fit with your existing applications.
Insulation Class F is available upon request.

Applications:

The single phase AC motors can be widely applied to the industrial ventilation facilities, air compressors as well as some other mechanical systems.

Specifications:

Model	Voltage (VAC)	Frequency (Hz)	Output Power (HP)	Rated Speed (rpm)	ROT	Insulation Grade
YDK160-185-4A	115/127	50/60	1/4	1425/1725	CW-SE	B
YDK160-185-4A2	220/230	50/60	1/4	1425/1725	CW-SE	B
YDK160-245-4A	115/127	50/60	1/3	1425/1725	CW-SE	B
YDK160-245-4A2	220/230	50/60	1/3	1425/1725	CW-SE	B
YDK160-375-4A	115/127	50/60	1/2	1425/1725	CW-SE	B
YDK160-375-4A2	220/230	50/60	1/2	1425/1725	CW-SE	B
YDK160-550-4A	115/127	50/60	3/4	1425/1725	CW-SE	B
YDK160-550-4A2	220/230	50/60	3/4	1425/1725	CW-SE	B
YDK160-735-4A	115/127	50/60	1	1425/1725	CW-SE	B
YDK160-735-4A2	220/230	50/60	1	1425/1725	CW-SE	B

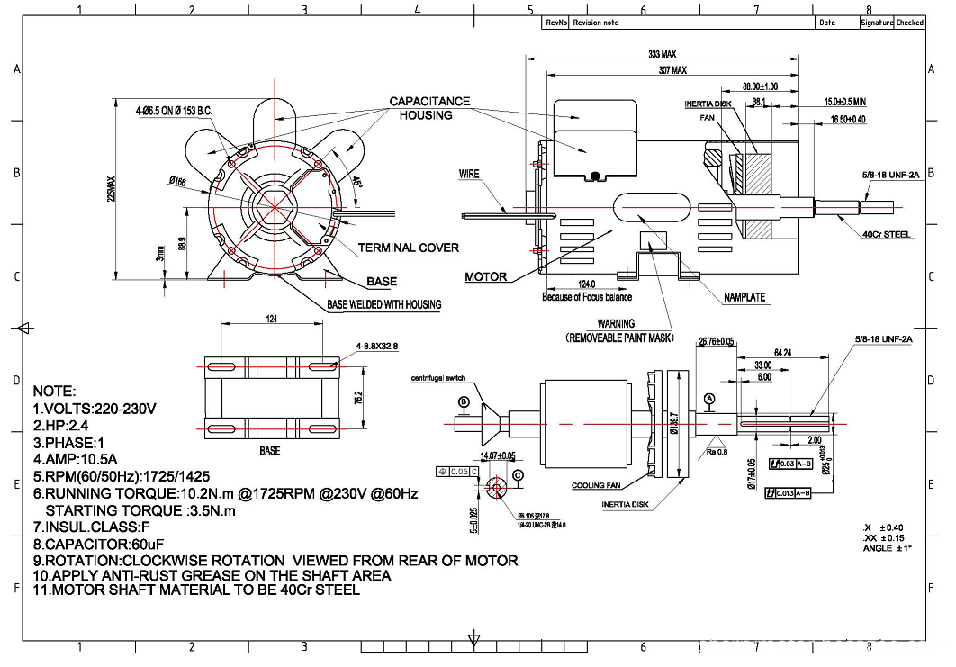

Outline Drawings:

Start 2 3 Horsepower Ac Motor 160mm Frame Size Single Phase 50/60hz Motor Insulation Grade B
