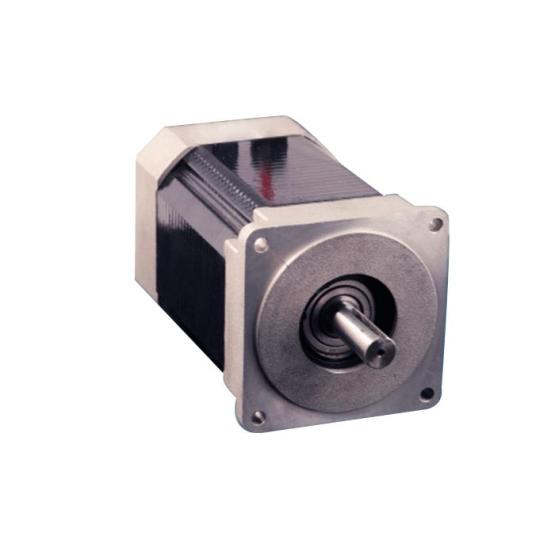

83BLF brushless dc motor/ 83mm brushless motor for 12v ventilating fan

Basic Info


Model No.: 83BLF brushless dc motor/ 83mm brushless motor for 12v ventilating fan


Product Description

Features:



1.    Precise workshop

2.    Smooth Operation

3.    Convenient Drive

4.    Huge Force Torque



Rated Voltage: 24VDC~310VDC

Rated Torque: 1N.m~2N.m

Rated Power: 200W~600W

Rated Speed: 2500RPM~4500RPM

Motor Length: 90mm~140mm

Motor Weight: 2KG~4KG

Winding Temperature: 155℃

Poles of Rotor: 8 poles

Accessories: encoders, brakes, drivers as well as gearboxes are available according to your requirements.



Specifications:

Model

83BLF-01

83BLF-02

Rated Power (w)

200

250

Rated Voltage (VDC)

  24 /36

  24 /36

Rated Speed (rpm)

1800

1950

Rated Current (A)

 11/7.5

13.5/9

Rated Torque (N.m)

1

1.2

Max Power (W)

400

450

Max Torque (N.m)

4.5

5

Peak Current (A)

 21 /14

22 /15

Insulation Grade

E

E

Level of Protection

IP33

IP33

Leadwire Length (mm)

200

200

Wheel Diameter (mm)

83/90

83/90

Wheel Material

PU

PU





1.Strong ability hub motor
2.Low noise hub motor
3.Ost energy-saving hub motor
4.Long live hub motor

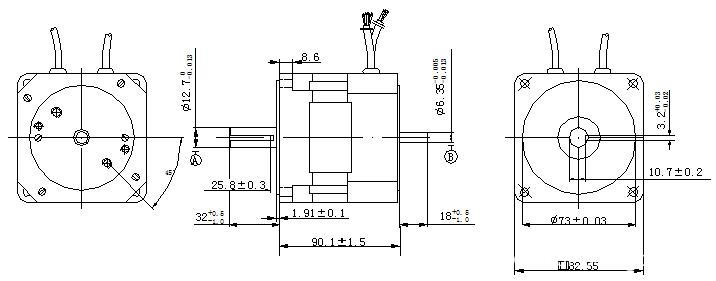

Dimension
