42BYHJ-S geared pm stepper motor/ frame size 42mm stepper motor with spur gearbox

Basic Info


Model No.: 42BYHJ-S geared pm stepper motor/ frame size 42mm stepper motor with spur gearbox


Product Description

Product Code: 42mm PM Stepper Motor with Spur Gearbox

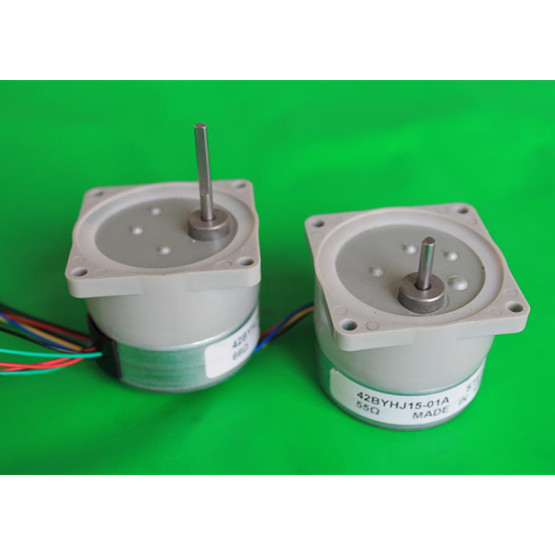

42BYHJ-S geared pm stepper motor/ frame size 42mm stepper motor with spur gearbox



Features:

By using the existing motor body in frame size 42mm, our PM stepper motors are especially R&D for some of portable medical equipment, such as dialysis machines and IV pumps which often require efficient torque and power from a motor small enough to fit in these devices.



Worth mentioning inhere, the housing is constructed in POM which makes the motor more lighter in weight as well as endures a temperature rise of 80°C when our spur gearbox PM stepper motor is fully operating.



The POM housing itself has also become one of the portions in the spur gearbox as the outer shell to make the complete motor more compact in size. Currently we are offering more options in speed ratio like 1:10, 1:20 and 1:50 while custom extended shaft is available upon request. The step angle is set up either at 7.5 degrees or at 15 degrees offering a position resolution on the order of ±7%.



We always take a compulsary inspection in dielectric strength at the end of assembly line to make sure that each of our products passes 600VAC/second at the leakage current of 1mA to safeguard the motor’s working safety.



Applications:

Our spur gear PM stepper motors are ideal for medical, instrumentation and valve applications.





Specification:

Model

Step Angle

(°)

No. of Phase

Voltage

(V)

Current

(A)

Resistance

(Ω)

Max. Holding Torque

(g.cm)

Starting Frequency

(PPS)

Starting Torque

(g.cm)

(PPS)

42BYHJ01

7.5/24

4-2

12

0.44

27

13000

380

1600

200

42BYHJ02

7.5/24

4-2

12

0.13

90

9000

260

3000

100

42BYHJ02L-01

7.5/24

4-2

12

0.17

70

10000

360

1500

200

42BYHJ02L-01

7.5/24

4-2

12

0.17

70

10000

360

1500

200

42BYHJ02L-02

7.5/24

4-2

12

0.17

70

10000

360

1500

200

42BYHJ03

7.5/24

4-2

12

0.4

30

11000

350

2100

200

42BYHJ03L

15/24

4-2

5

0.5

10

8000

320

1400

200
