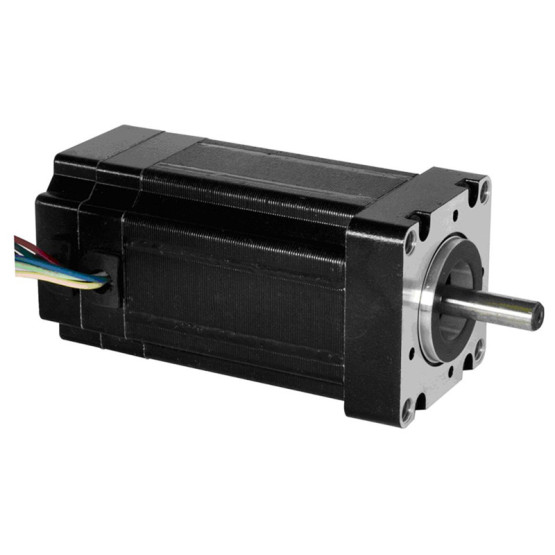

Square Flange NEMA Size 17 Brushless DC Motor

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Delivery Time: 45 Days

Basic Info


Model No.: Square Flange NEMA Size 17 Brushless DC Motor

Application: Power Tools, Car, Household Appliances, Industrial, Universal

Operating Speed: High Speed

Function: Control

Casing Protection: Protection Type

Certification: ISO9001, CCC


Additional Info


Transportation: Ocean,Air

Port: Shanghai


Product Description

The product general information:

Brand Name:

Sherry Motors

Model Number:

42BLFX

Certification:



Place of Origin:

China





Product commerce clause:

Minimum Order Quantity:



Price:



Payment Terms:

T/T or negotiation

Supply Ability:



Delivery Time:



Packaging Details:

Carton or negotiation



Features

1.     Our NEAM Size 17 brushless DC motors, to be with square flange, features wider speed ranges and higher dynamic responses.

2.     Especially set up at he rated voltage of 48VDC with the configuration of 8-ploe and 3-phase, our brushless DC motors can achieve a better motion control by and between positioning and speed feedback.

3.     The black powder-coated stator lamination stacks, and the mirror finish for the end caps enables our BLDC motors to operate in harsh, humid environments, and endure continuous working hours of 20,000.

4.     NMB or SKF ball bearings, dynamically balanced rotor, well-known name brand magnets greatly contributes to high-performance and high-speed BLDC motor,

5.     Low audible and magnetic noise will be preferred by application-engineers.

6.     Without any adoption of brushless or a commutator, our brushless DC motors are having a longer life in servicing, compared with the same size brushed ones.



Applications

This range of products can be applied to but not limited to the industry of instrumentation, medical, household appliances as well as automotive.


Specifications

Model

42BLFX01

42BLFX02

Number of Poles

8

Number of Phase

3

Rated Voltage               VDC

48

48

Rated Speed               RPM

4000

4000

Rated Torque               N-m

0.12

0.2

Rated Current               Amps

1.2

2.1

Output Power               Watts

50

84

Peak Torque               N-m

0.36

0.6

Peak Current               Amps

3.6

6.3

Torque Constant            N-m/Amps

0.108

0.104

Counter EMF Constant            V/kRPM

11.3

10.9

Rotor Inertia              g·cm2

62

123

Motor Length                 mm

59

84

Weight                    kg

0.35

0.5

Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor

damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.

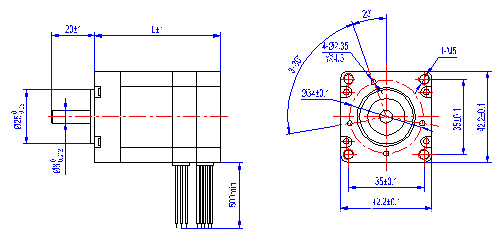

Outline Dimensions (Unit=mm)

 Dimension

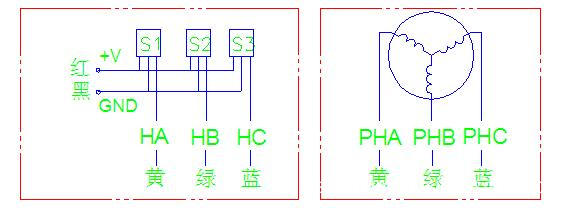

Wiring Diagram

Wiring diagram


Attention: Hall Operation Voltage: +5VDC~+20VDC

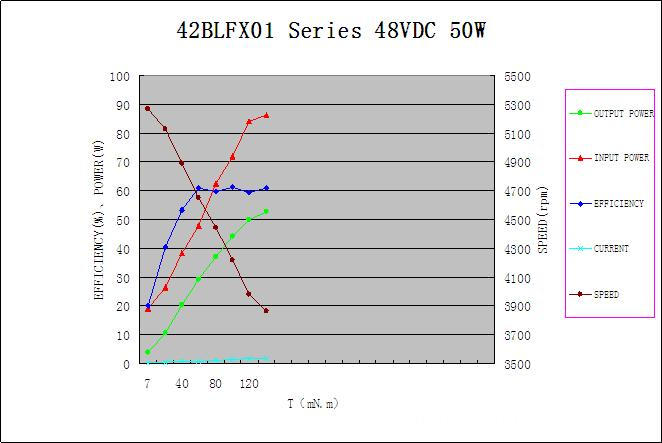

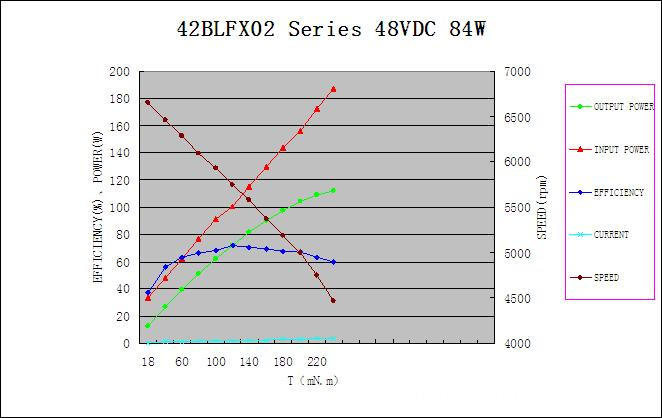

Mechanical Characteristics

Mechanical Characteristics


2
