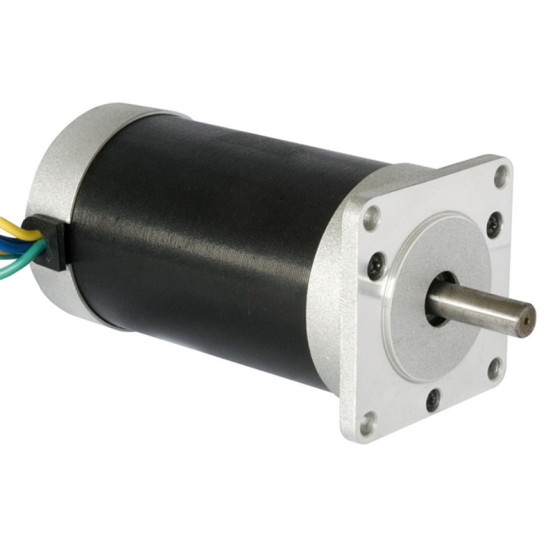

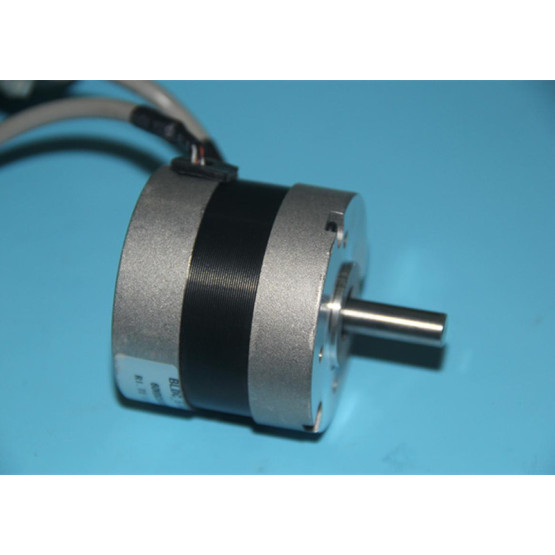

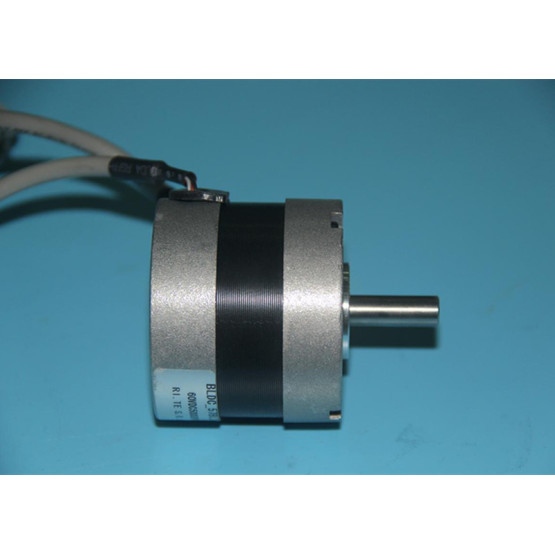

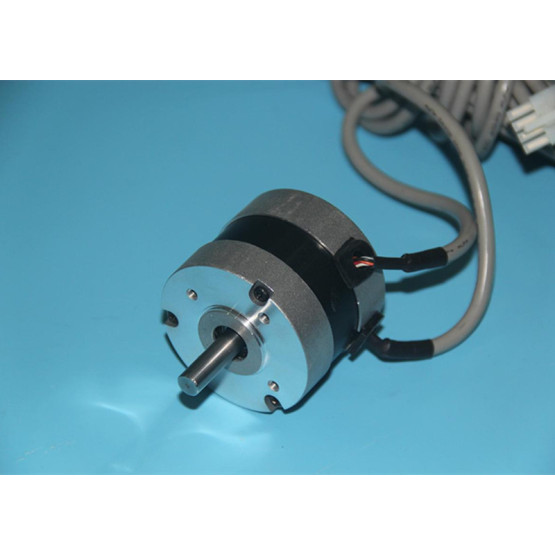

57BLY Brushless DC Motor

Basic Info


Model No.: 57BLY Brushless DC Motor


Product Description

Applications:

The 57mm brushless DC motor offers ideal power solution for pumps in aquariums, outdoors firefighting equipment, and instrumentation.





Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No. of Pole

No.

of Phase

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

BackEMS(V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length (L)

57BLY01

24

≤1.2

3000

4

3

0.057

3.6

≤3.6

0.074

7.75

32

37

57BLY02

24

≤2.3

3000

4

3

0.11

6.8

≤6.8

0.059

6.2

42

47

57BLY03

24

≤3.0

3000

4

3

0.165

9

≤9.0

0.06

6.3

58

57

57BLY04

24

≤4.4

3000

4

3

0.22

13.2

≤13.2

0.062

6.5

72

67

57BLY05

24

≤6.6

3000

4

3

0.33

19.8

≤19.8

0.062

6.5

106

87

57BLY06

24

≤8.6

3000

4

3

0.44

25.8

≤25.8

0.063

6.6

140

107



Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.

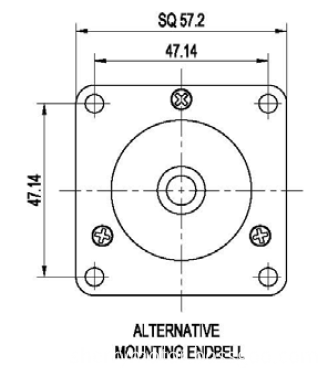

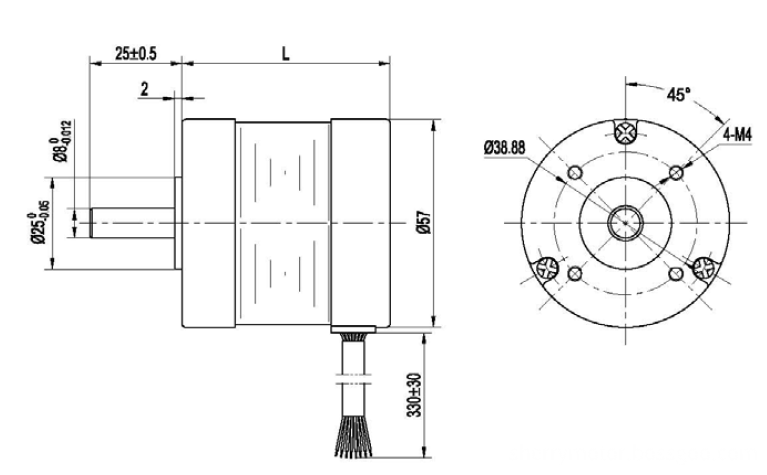

Dimensions:
(Unit=mm)

57BLY Brushless DC Motor

57BLY Brushless DC Motor



Features:

  1. NEMA Size 23 BLDC motors, tubular housing at 57mm in diameter, square flange.
  2. Our brushless DC motors are designed to operate at a lower rated current ranging from 1.2Amps to 8.6Amps, which obtains a satisfied temperature rise and a less consumption of power supply.
  3. In a configuration of 4-pole and 3-phase, this range of motor products is cleaner and more powerful, and it requires less maintenance than the brushed motor.
  4. Designed to work at the rated voltage of 24VDC with Wye-windings, our motors can endure over 20,000 hours in motor life.
  5. A hall-effect commutation encoder or a variety of optical encoders can be properly selected for higher precision applications.

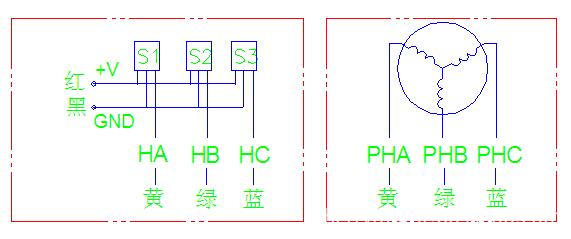

Wiring Diagram:

Wiring

                           Attention: Hall Operation Voltage: +5VDC~+20VDC


                           Attention: Hall Operation Voltage: +5VDC~+20VDC


-->
