31ZYT micro brushed dc motor/ office printers high-gauge steel housing motor 31mm

Basic Info


Model No.: 31ZYT micro brushed dc motor/ office printers high-gauge steel housing motor 31mm


Product Description

Certification:

TS-16949/RoHS/ISO14001/REACH

Model Number:

RH-497/ RH-487/ RH-477/ RH-457

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 6.00-9.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation,, T/T

Supply Ability:

50,000pcs/month





Features:

  1. 31mm series micro brushed motors are having more options in nominal voltage to suit a proper working of end-applications.
  2. As the product code indicates, our small DC motors offer a housing diameter of 31mm and they are optimized both in structure and in performance to internationally meet any overseas demands.
  3. The output power can reach as much as 37W with low noise and less vibrations.
  4. The compact size and reliable performance make our small DC motors more competitive both in price and in quality.
  5. Additionally, uniform motor components help us to improve both our production efficiency and products quality. This also enables us to offer a fast after-sales servicing.



Applications:
They are widely applied to office printers, openers of rear box of automobiles as well as seats moving for automobiles.

Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (g.cm)

SH-31ZYT-2165

24

≤0.42

3650

≤0.07

4250

191.4

SH-31ZYT-4218

12

≤2.07

7830

≤0.21

8630

234

SH-31ZYT-2840

24

≤2.11

7090

≤0.3

8100

531.4

SH-31ZYT-3036

12

≤0.87

3510

≤0.11

3950

220

SH-31ZYT-4016

9

≤2.37

5950

≤0.30

6700

259

SH-31ZYT-2172

9

≤0.45

3490

≤0.06

3900

231

SH-31ZYT-2548

13.5

≤0.62

3910

≤0.11

4615

142

SH-31ZYT-2170

12

≤0.38

3050

≤0.07

3600

100

SH-31ZYT-15132

24

≤0.22

3180

≤0.045

3800

110

SH-31ZYT-4020

12

≤1.1

5275

≤0.14

5950

180

SH-31ZYT-13150

24

≤0.35

2900

≤0.10

3200

120

SH-31ZYT-1580

13.5

≤0.36

3350

≤0.09

4150

83.5

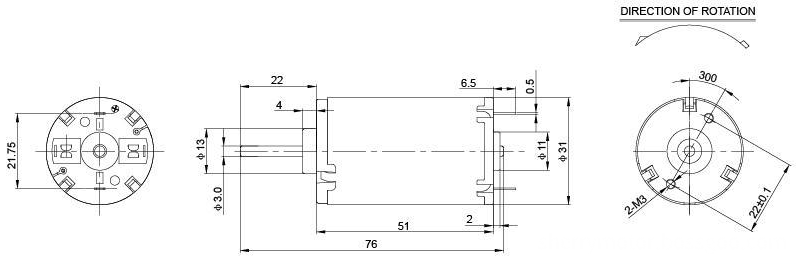

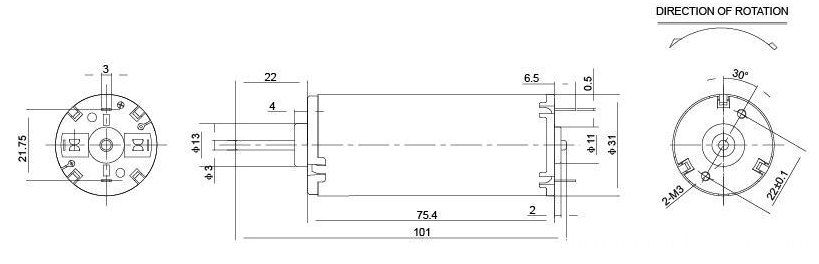

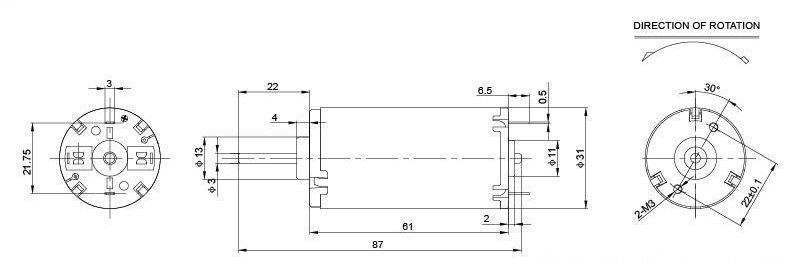

Dimensions:
(Unit=mm)


Dimensions

Dimensions


Dimensions
