55ZYT brushed dc motor/ copper windings 55mm permanent magnet dc motors sealed ball bearings

Basic Info


Model No.: 55ZYT brushed dc motor/ copper windings 55mm permanent magnet dc motors sealed ball bearings


Product Description

Certification:

TS-16949/RoHS/ISO14001

Model Number:

55ZYT

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:

Packaging Details:

Carton or negotiation

Delivery Time:

30 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

10,000pcs/month





Features:

  1. Motor diameter is determined at 55mm.
  2. Aluminium die cast endbells to decrease the motor body weight, especially suits some portable devices. The pilot and mounting hole pattern can be variable to fit individual application.
  3. The motor housing is powder-coated in black for anti-rust and anti-moisture to prolong the motor life.
  4. Upon request, the extended shaft can be machine-turned either in a screw way or in a keyslot.
  5. NMB or SKF ball bearings could be introduced to improve the motor performance.
  6. Spur or planetary gearhead could also be OEM to meet your requirements in application.

Applications:

   They are widely applied to battery-powered facilities like wheelchairs, power tools, conveyors as well as door openers.



Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (N.m)

55ZYT001

24

≤2.7

2700

≤0.8

4200

0.1

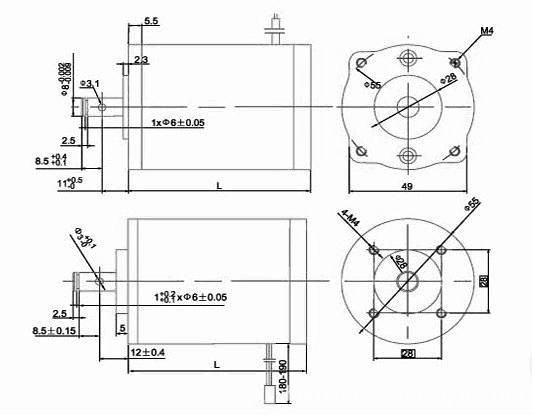

Dimensions:

(Unit=mm)



Dimension
