DS series ac linear actuator / high load capacity optional stroke linear motor for lift from China

Location: Home >AC Linear Actuator > DS series ac linear actuator / high load capacity optional stroke linear motor for lift

DS series ac linear actuator / high load capacity optional stroke linear motor for lift

Basic Info

Model No.: DS series AC Linear Actuator

Product Description

Features of our DS series AC linear actuator:

1.Light, small, and heavy load.
2.Equipped with a temperature sensor to keep from burnout.
3.Positioners (Optional)-Encoder, Limit switches, VR.

Model				DS series AC Linear Actuator
Input		24VDC
Load Capacity		4000N-6000N
Speed		5~10mm/s(Option)
Limit Switch		Inner
Standard Stroke		100mm,150mm,200mm,250mm,300mm,350mm,400mm(Option)

Min.Install Dimension		S+170
Duty Cycle		10% 2 mins continuous Max
Ambient Temperature		-5℃~40℃
Protection Class		IP42
Color		Back shell and silver tube
Relative humidity		20%-75%
Option		All power supply and handset from Sunlight
Certificate		ROSH CE

DS series ac linear actuator/ high load capacity, optional stroke linear motor for lift

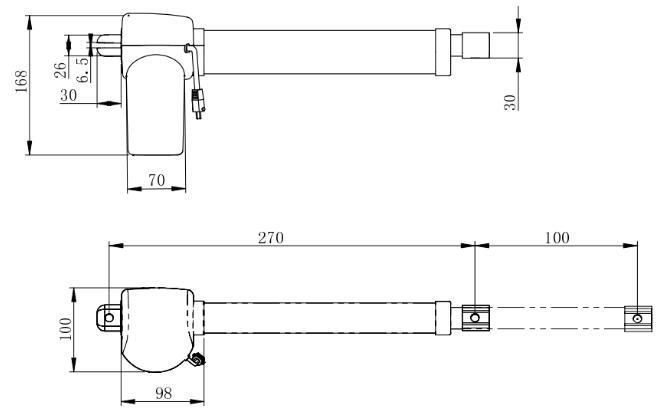

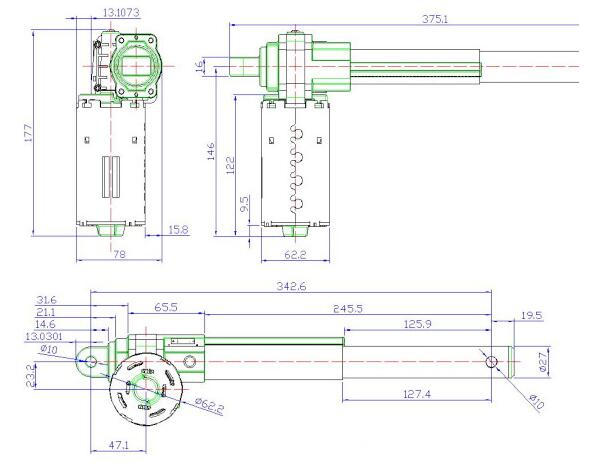

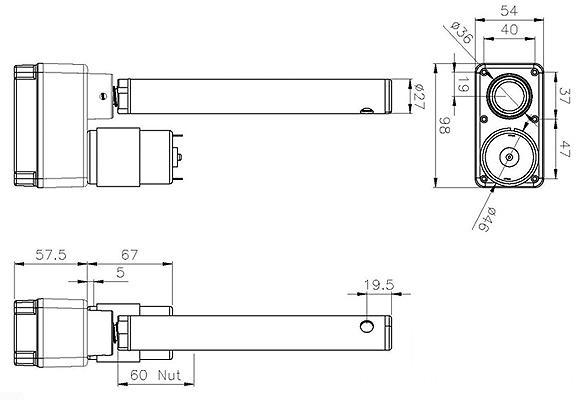

DS series ac linear actuator/ dimension

DS series ac linear actuator/ gm-p

DS series ac linear actuator/ packing

DS series ac linear actuator/ packing

DS Series AC Linear Actuator HC Linear Actuator High Load Capacity Optional Stroke
