2 phase small PM stepper motors with permanent magents for Fax machine

Basic Info


Model No.: 2 phase small PM stepper motors with permanent magents for Fax machine


Product Description



Certification:

TS-16949/RoHS/ISO14001

Model Number:

15BYHJ

Payment & Shipping Terms:

Minimum Order Quantity:

1000pcs

Price:

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

100,000pcs/month





Features:

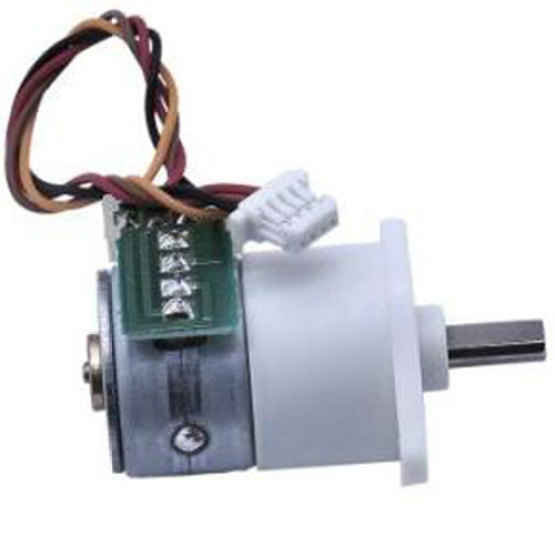

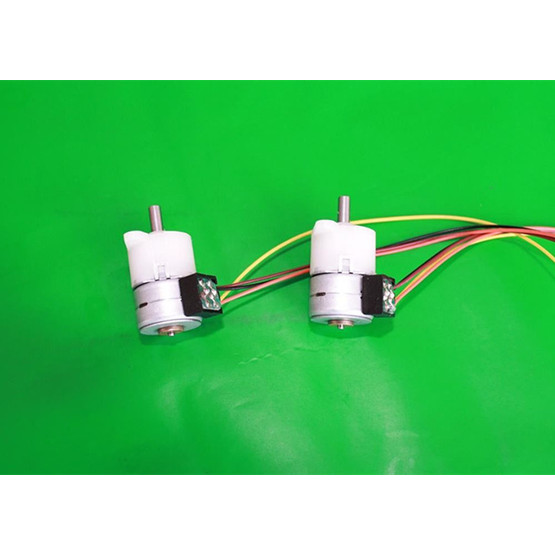

1. 15mm series of PM stepper motors use permanent magnet rotors and are commanded by electrical pulses.

2. The motors are constructed with the housing at the diameter of 15mm.

3. The step angle was initially to be 18° and the motor itself rotated by having the holding torque as much as 40g.cm maximally.

4. Motor has been assembled with a planetary gearbox made from POM while the gear ratio is determined at 1:50.

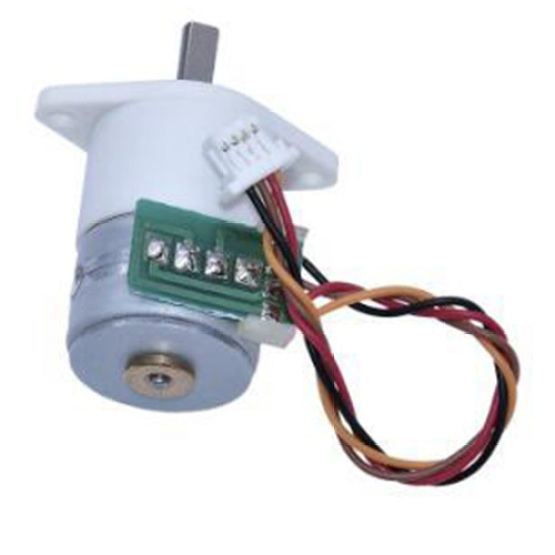

5. Due to the space constraint inside the motor, a PCB (printed circuit board for short) is put outside and welded with the out leads.

6. Around the PCB, a black cover made from PBT is especially used to prevent any dusts to ensure the PM stepper motor can operate properly in a good working condition for a longer term.



Applications:

Typical applications of our PM stepping motors are in Fax machine, scanner, copy machine, IP camera as well as healthcare products.



Specifications:






Model

Step Angle

 ( °)

No. of Phase

Voltage

 (VDC)

Current

 (A)

Resistance

 (Ω)

Inductance

 (mH)

Holding Torque

 (g.cm)

Detent Torque

(g.cm)

Rotor Inertia

(g/cm²)

Leads

15BYHJ50

18/50

2

5

0.5

10

2.3

1/50

1380

1280

280(At 200pps)

15BYHJ102.5

18/102.5

2

5

0. 5

10

2.3

1/102.5

1200

1000

350(At 200pps)

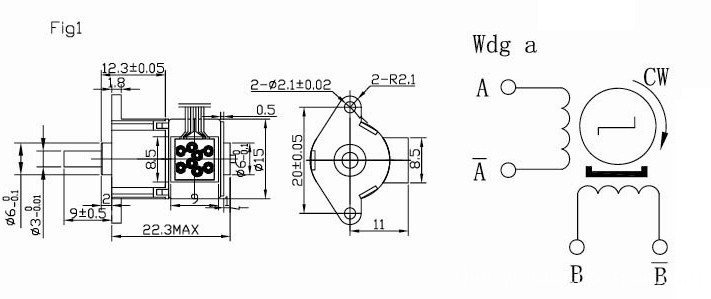

Dimensions:

(Unit=mm)


2 phase small PM stepper motors with permanent magents for Fax machine
