25BYHJ-S geared pm stepper motor/ installed spur gearbox for rotary lasers

Contact Now

Basic Info

Model No.: 25BYHJ-S geared pm stepper motor/ installed spur gearbox for rotary lasers

Product Description

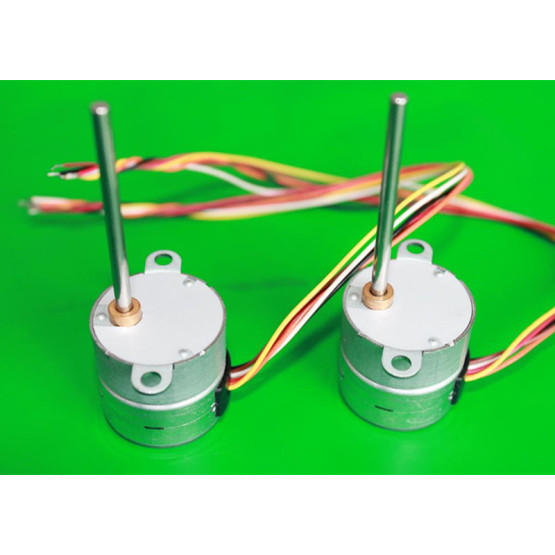

Product Code: 25mm PM Stepper Motor with Spur Gearbox

25BYHJ-S geared pm stepper motor/ installed spur gearbox for rotary lasers

Features:

With an introduction of spur gearboxes into our basic products lines, 25mm series of PM stepper motors are now richer in motor versions except from the basic parameters like the voltage and current.

Currently our spur gears are typically constructed in metals such as steel or brass while they are made with straight teeth mounted onto a parallel shaft. The noise level of spur gears is relatively high due to colliding teeth of the gears which make spur gear teeth prone to wear.

The application engineers sometimes still prefer using our PM stepper motor with spur gearbox because the spur gears take advantages of high speed ratios and high torque output. Please do not hesitate to turn to our technical teams to know more details about the motor performance either before or after an installment of spur gearbox.

Applications:

They are widely applied to rotary lasers, monitoring instruments and packaging machines.

Specification:

Model	Step Angle (°)	No.of Phase	Voltage (V)	Current (A)	Resistance (Ω)	Max. Holding Torque (g.cm)	Starting Frequency (PPS)	Starting Torque		Detent Torque (g.cm)
Model	Step Angle (°)	No.of Phase	Voltage (V)	Current (A)	Resistance (Ω)	Max. Holding Torque (g.cm)	Starting Frequency (PPS)	g.cm	PPS	Detent Torque (g.cm)
25BYHJ01-10	0.75	4-2	5	0.5	10	1100	720	400	100	450
25BYHJ10-01	0.75	4-2	5	0.5	10	1100	720	400	100	450
25BYHJ20-A	0.75	2-2	12	0.08	150	100	600	500	200
25BYHJ30-01	0.25	2-2	13.3	0.11	120	4000	680	750	300	1400
25BYHJ05-02	3	2-2	3.5	0.36	9.6	500	420	100	200	150
25BYHJ05-03	7.5	4-1	12	0.1	120	500	620	100	300	1500

25BYHJ S Geared Pm Stepper Motor Installed Spur Gearbox for Rotary Lasers Applied to Rotary Lasers
