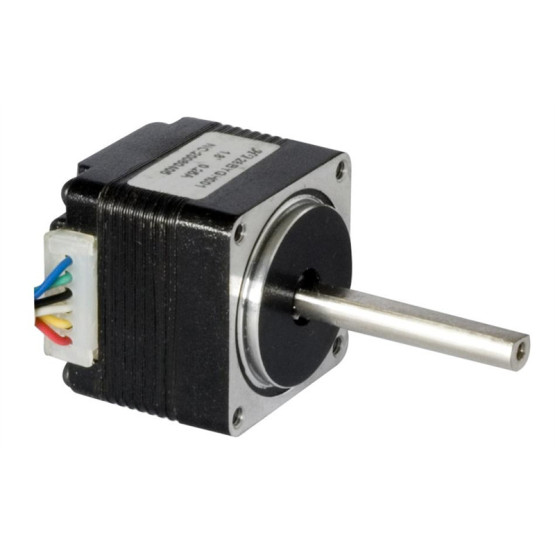

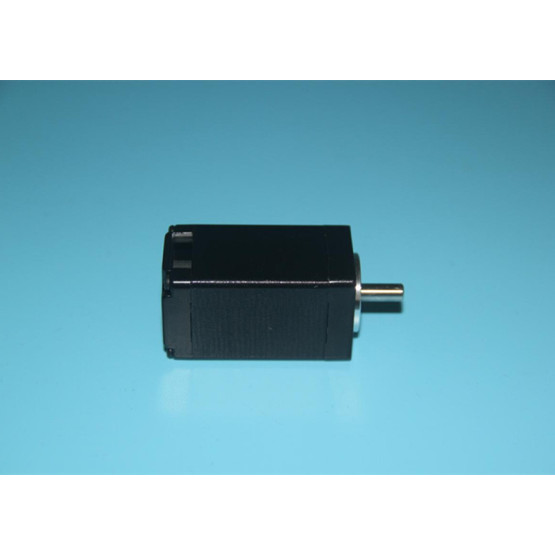

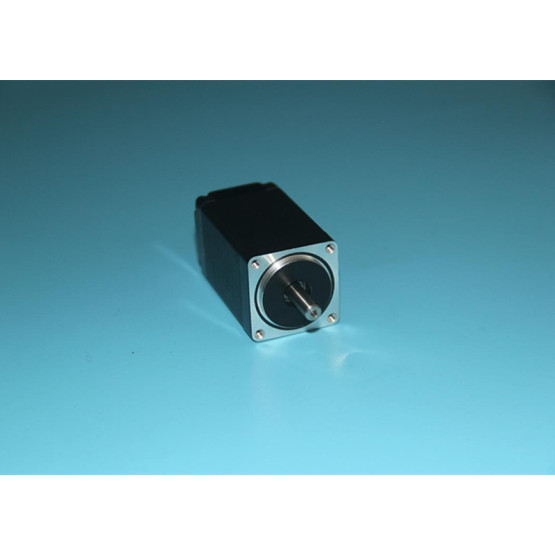

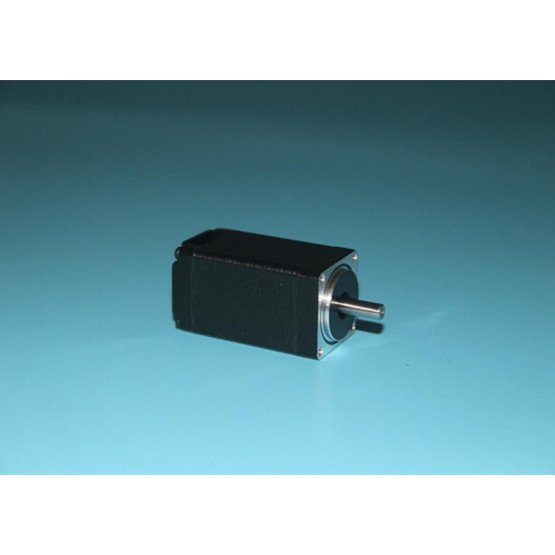

28BYGH Hybrid Stepper Motor

Basic Info


Model No.: 28BYGH stand hybrid stepper motor/ small motor with diameter 28mm, step angle 1.8°


Product Description

Product commerce clause

28BYGH series hybrid stepping motors are design with high precision, low noise, speed, long service life.

Widely used in banking office equipment, telecommunications equipment, printers, photocopiers, fax machines, scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and stage lighting, automotive, monitoring systems, electric advertising, electric curtains, science and education Equipment, air conditioning and other fields.



General Description

Step Angle Error………………………………………±5%

Peak Temperature Rise…………………………………………80℃ Max

AmbientTemperatureRange……………………………………-20℃~+50℃

Insulation Resistance…………………………………100MΩMin.500VC DC

Dielectric Strength…………………………………………500V AC for 1 minute



Specifications

Model

Step Angle

 ( ° )

Motor Length

L(mm)

Phase Voltage

 (V)

Phase

Current

 (A)

Phase

Resistance

 (Ω)

Phase Inductance

 (mH)

Holding Torque

 (g.cm)

Lead Wire

 (NO.)

Rotor Inertia

(kg.m²)

Weight

(kg)

28BYGH102

1.8

32

3.9

0.67

5.8

3.2

600

4

9×10

0.11

28BYGH105

1.8

2.66

0.95

2.8

1.0

430

6

28BYGH301

1.8

45

4.56

0.67

6.8

4.9

950

4

12×10

0.14

28BYGH303

1.8

3.4

0.95

3.4

1.2

750

6

28BYGH501

1.8

51

8.04

0.67

12

7.2

1200

4

18×10

0.2

28BYGH502

1.8

3.8

0.95

4.0

1.1

900

6















*The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

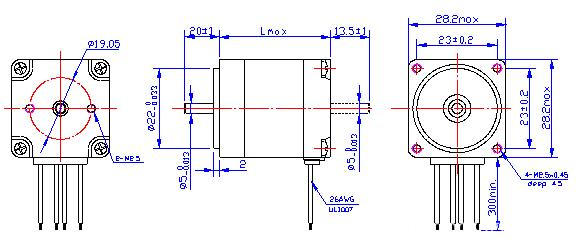

Outline Dimensions (Unit=mm)


Dimension


Wiring Diagram

Wiring

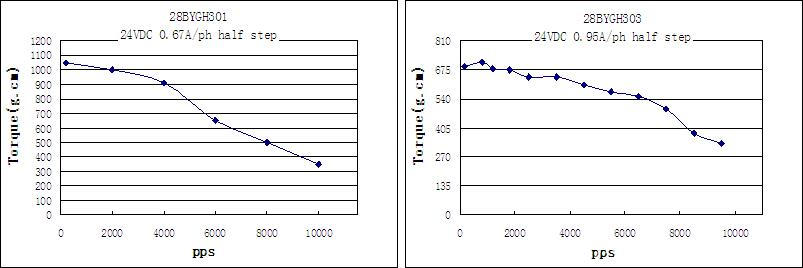

Torque-Frequency Characteristics

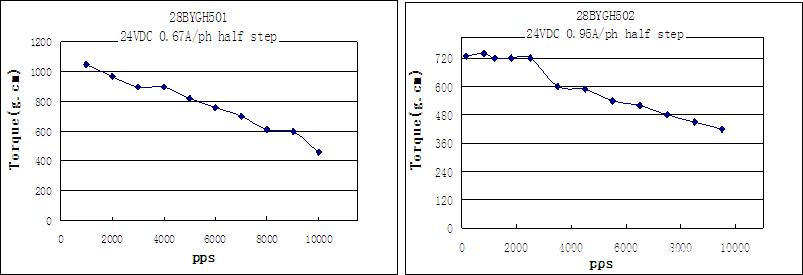

Torque-Frequency Characteristics

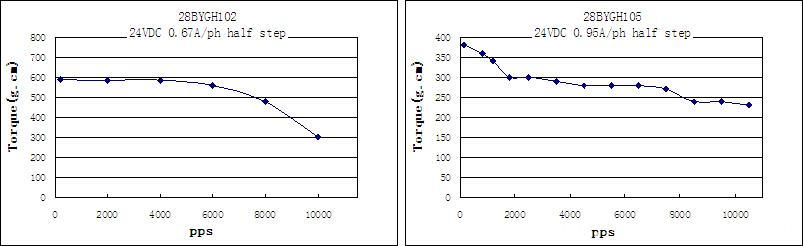

Torque-Frequency Characteristics

Torque-Frequency Characteristics
