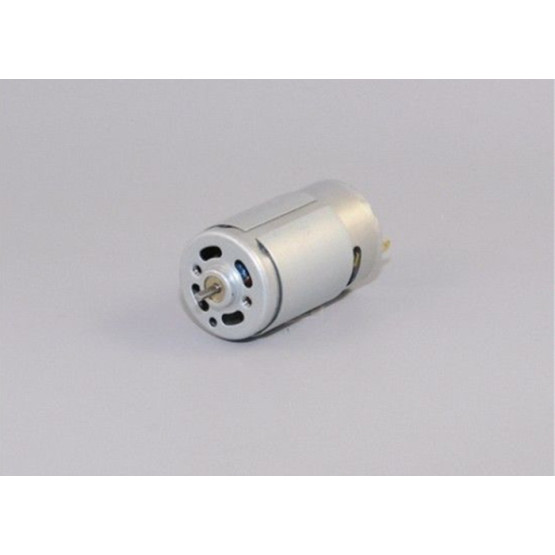

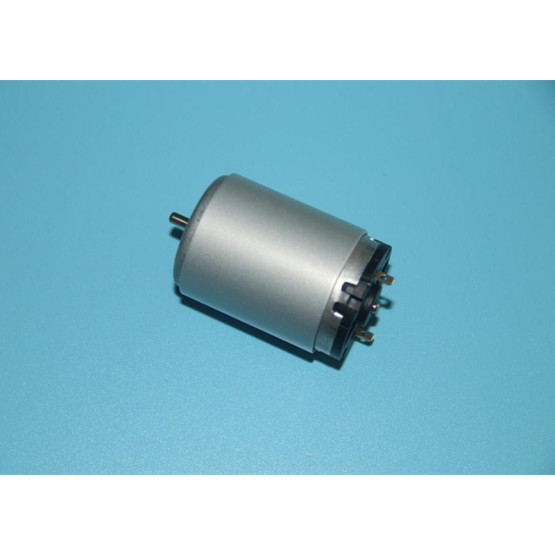

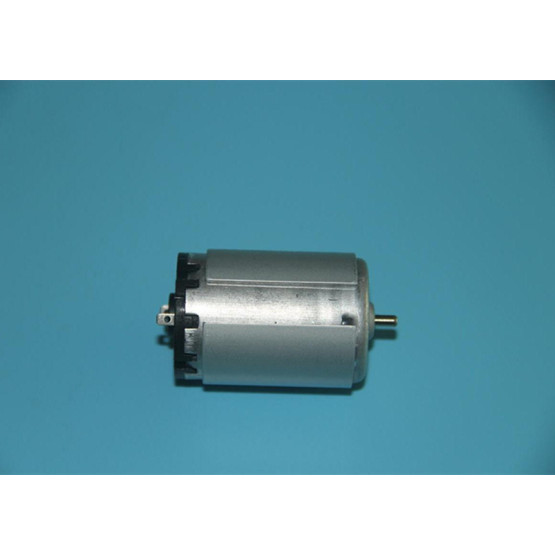

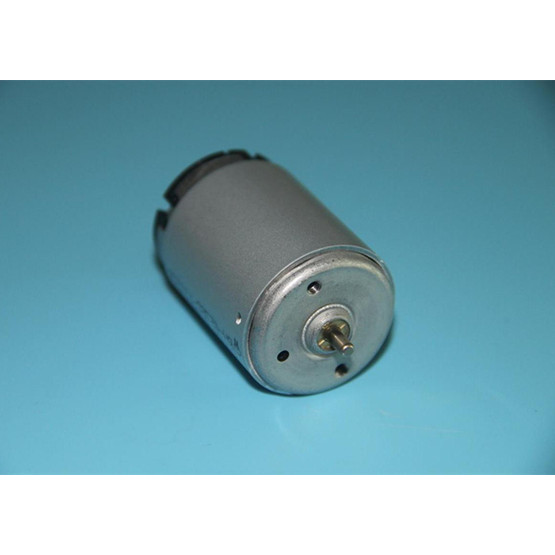

29mm Brushed DC Motors dynamically balanced armatures with fully punched housing

Basic Info


Model No.: 29mm Brushed DC Motors dynamically balanced armatures with fully punched housing


Product Description

Certification:

TS-16949/RoHS/ISO14001/REACH

Model Number:

RS-395PA

Payment & Shipping Terms:

Minimum Order Quantity:

3000pcs

Price:

USD 5.00-7.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation,, T/T

Supply Ability:

100,000pcs/month





Features

  1. 29mm micro brushed motor with compact design, is especially constructed with sufficient ventilation exits in the housing.
  2. These ventilation holes make it possible to naturally cool down our small DC motor, thus achieving a decline in temperature rise during its constant running.
  3. It lies in an extra shielding cover around the outside of motor housing, which effectively eliminates the electromagnetic interference.
  4. The end-consumers would like to install this series of micro brushed motors into their appliances because of both safety working voltage at 12VDC and a low stall current.

Applications:

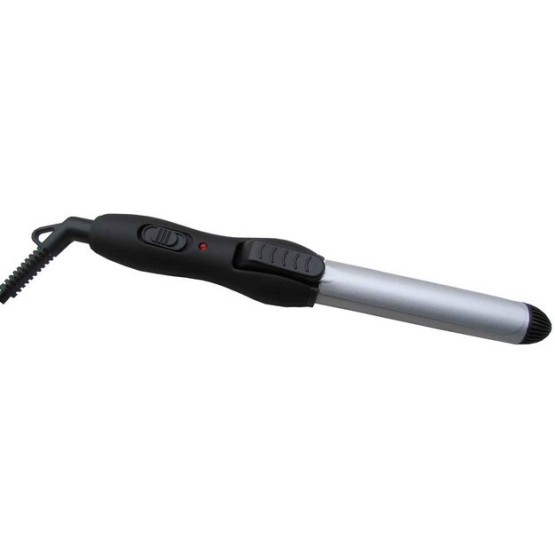

  29mm micro small DC brushed motors are widely applied to hair dryers, hair curlers and massage chairs.

Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (g.cm)

RS-395PA-1798

12

≤0.389

4080

≤0.089

5015

76.6

RS-395PA-16105

12

≤0.333

3740

≤0.080

4640

69.8

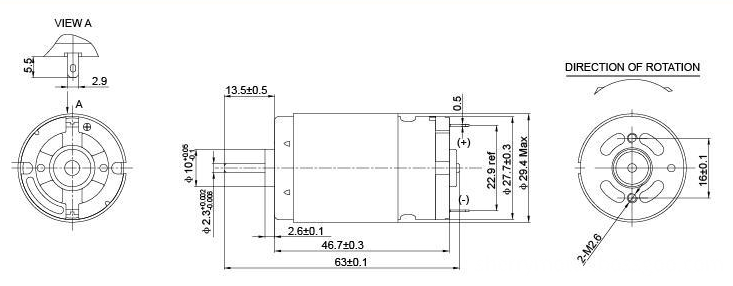

Dimensions:
(Unit=mm)


Dimensions
