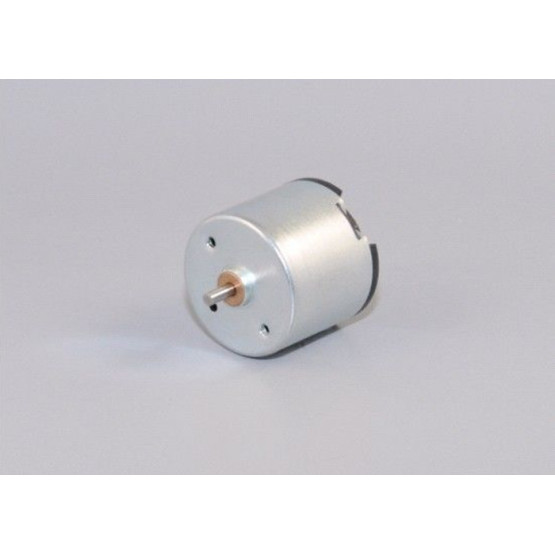

34mm frame size brushed 12v dc motors low voltage economical design

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF

Basic Info


Model No.: 34mm frame size brushed 12v dc motors low voltage economical design

Application: Industrial

Operating Speed: High Speed

Excitation Mode: Excited

Function: Control


Additional Info


Transportation: Ocean,Air


Product Description

Certification:

TS-16949/RoHS/ISO14001/REACH

Model Number:

PK-510SA

Payment & Shipping Terms:

Minimum Order Quantity:

3000pcs

Price:

negotiation

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

100,000pcs/month



Applications:


They are widely applied to portable vacuum cleaners, power brushes, brush roller and the head of gear box.

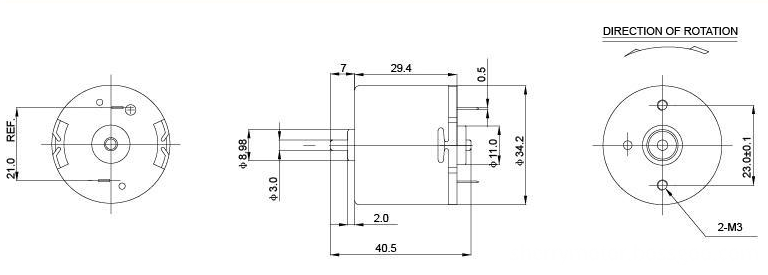

Dimensions:
(Unit=mm)

 34mm frame size brushed 12v dc motors low voltage economical design

Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (g.cm)

SH-34ZYT-19190

12

≤0.631

5985

≤0.156

7460

93.6

SH-34ZYT-23150

12

≤0.829

8025

≤0.154

9515

87.2

SH-34ZYT-15380

24

≤0.361

6250

≤0.075

7550

98.5

SH-34ZYT-12580

24

≤0.236

4030

≤0.050

4885

76.3





Features:

  1. 34mm series of micro brushed motors supports an operation at a broad range of power supply from 9VDC to 30VDC.
  2. The housing diameter is measured at 34.2mm and its mechanical tolerances are guaranteed by high-speed & high-precision punching machines.
  3. The housing and the front end bell are produced in the same single lot of punching to form them an integral whole, which improves a lot the motor quality due to a less involvement of manual labouring.
  4. Moreover, some other key motor components like sleeve bearings and ferrite magnets have been well selected in quality to prolong the motor life.

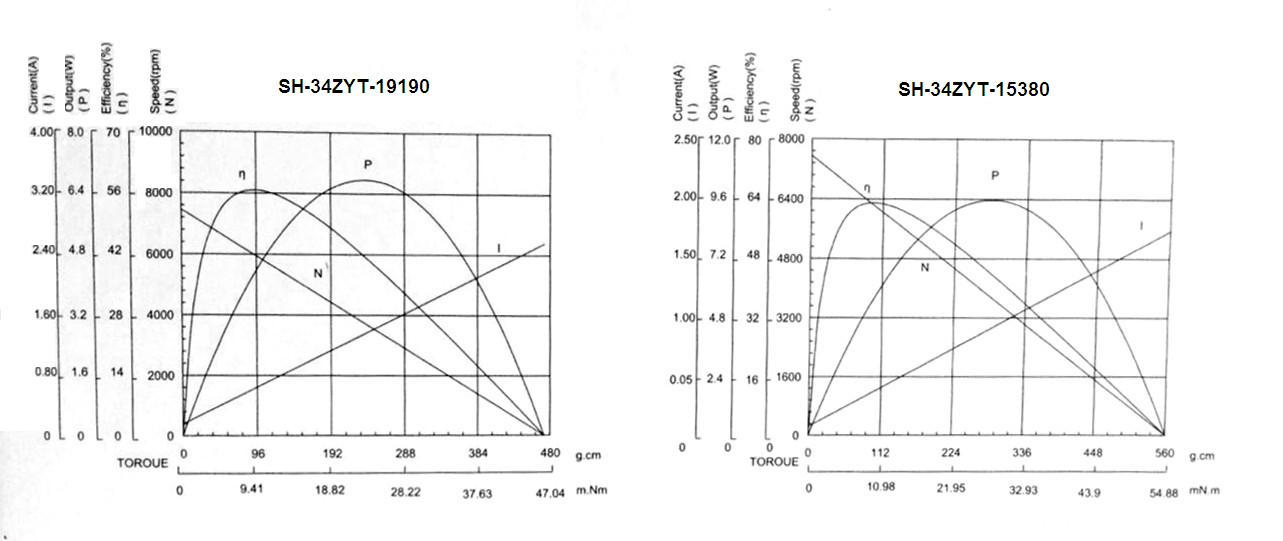

Mechanical Characteristics:

Mechanical Characteristics
