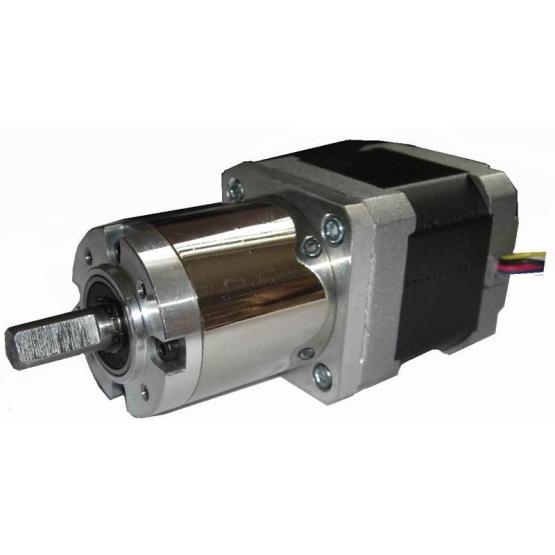

42H planet geared hybrid stepper motor/ high torque copper windings for embroidery machines

Contact Now

Basic Info

Model No.: 42H planet geared hybrid stepper motor/ high torque copper windings for embroidery machines

Product Description

Certification:	TS16949/RoHS
Model Number:	42BYGH243

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 21.00-25.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	50,000pcs/month

Features:

High quality copper windings to endure temperature rise 80℃ Max.
Ambient temperature ranges from -20℃ to +50℃ to please different working conditions.
Low voltage, low current and low phase resistance to pass through EMC testing.
A planetary gearhead with round flange can be better coupled with your final applications while producing a higher holding torque.

Applications:

Our hybrid stepping motor, with planetary gearhead, is widely applied to embroidery machines, lifting machines and light stage facilities.

General Description:

Step Angle Error………………………………………………±5%

Peak Temperature Rise…………………………………………80℃ Max

AmbientTemperatureRange…………………………………-20℃~+50℃

Insulation Resistance………………………………100MΩMin.500VC DC

Dielectric Strength…………………………………………500V AC 1S

Model

Step Angle

( °)

Motor

Length

L1(mm)

Phase Voltage

(V)

Phase Current

(A)

Phase Resistance

(Ω)

Phase Inductance

(mH)

Holding Torque

(Kg.cm)

Lead Wire

(NO.)

Detent Torque

(kg.cm)

Rotor Inertia

(kg.cm²)

Reduction Ratio

Weight

(kg)

42BYGH243 AG5.18

1.8

2.6

1.0

2.6

3.2

1.8

0.2

0.034

5.18:1

0.3

42BYGH243 AG26.8

1.8

2.6

1.0

2.6

3.2

1.8

0.2

0.034

26.8:1

0.3

Specifications:

* Various reduction ratios are alternative.

Reduction Ratio	5.18	13.6	19.2	26.8	51	71	99.5
L2(mm) Motor Length	26	34	34	34	42	42	42

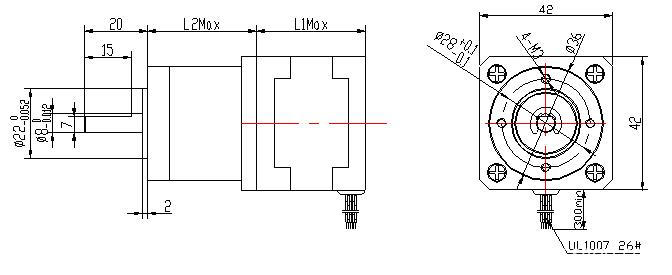

Dimensions (Unit=mm):

Wiring Diagram:

Planet Geared Hybrid Stepper Motor High Torque Copper Winding Motor For Embroidery Machines
