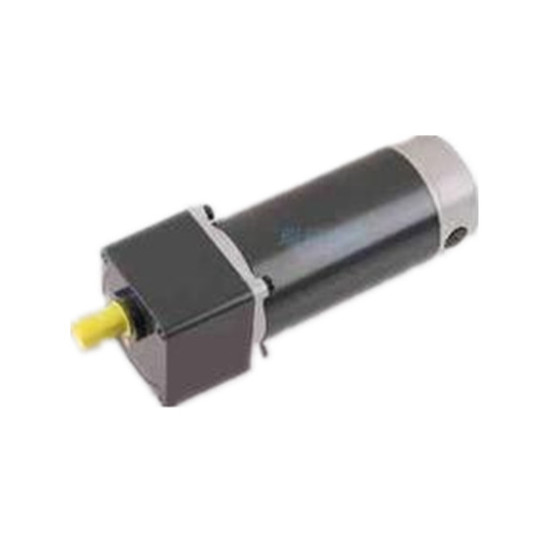

    70JB-57ZYN brushed dc gear motor/ wheelchairs 24v geared motors square flange spur gear motor

    Contact Now

    Basic Info


    Model No.: 70JB-57ZYN brushed dc gear motor/ wheelchairs 24v geared motors square flange,spur gear motor


    Product Description

    70JB-57ZYN brushed dc gear motor/ wheelchairs 24v geared motors square flange, spur gear motor





    Certification:

    TS16949/RoHS

    Model Number:

    70JB-57ZYN

    Payment & Shipping Terms:

    Minimum Order Quantity:

    500pcs

    Price:

    USD 49.00-59.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    50,000pcs/month





    Features:

    1. Initially the nominal voltage is set up 24VDC or it can be revised to fit your final applications.
    2. Rugged and high-gauge steel housing to enable the complete motor operate in the extreme working conditions.
    3. Dynamically balanced armatures are critical to keep a consistent quality.
    4. Spur gearhead with a square flange to upgrade the motor performance.
    5. Replaceable carbon brushes to extend the life cycle of our motors.

    Applications:

    They are widely applied to the door openers, wheelchairs, pick& place machines.



    Specifications:




                              Ratio

    Torque(kg.cm)

    1/10

    1/15

    1/20

    1/25

    1/40

    1/75

    1/100

    Rated Voltage

    (VDC)

    No load Current

    (mA)

    On load Current

    (mA)

    Length

    (mm)



    20

    30

    40

    50

    80

    80

    80

    Model

    Speed(r/min)

    70JB-57ZYN01J1000

    100

    66

    50

    40

    25

    13

    10

    24

    ≤300

    ≤1.7

    131



    70JB-57ZYN01J2000

    200

    133

    100

    80

    50

    26

    20

    24

    ≤500

    ≤3.4

    131



    70JB-57ZYN01J3000

    300

    200

    150

    120

    75

    40

    30

    24

    ≤700

    ≤5.1

    131



                              Ratio

    Torque(kg.cm)

    1/10

    1/15

    1/20

    1/25

    1/40

    1/75

    1/100

    Rated Voltage

    (VDC)

    No load Current

    (mA)

    On load Current

    (mA)

    Length

    (mm)

    15

    20

    30

    35

    55

    80

    80

    Model

    Speed(r/min)

    70JB-57ZYN02J1000

    100

    66

    50

    40

    25

    13

    10

    24

    ≤300

    ≤1.2

    121



    70JB-57ZYN02J2000

    200

    133

    100

    80

    50

    26

    20

    24

    ≤500

    ≤2.4

    121



    70JB-57ZYN02J3000

    300

    200

    150

    120

    75

    40

    30

    24

    ≤700

    ≤3.6

    121

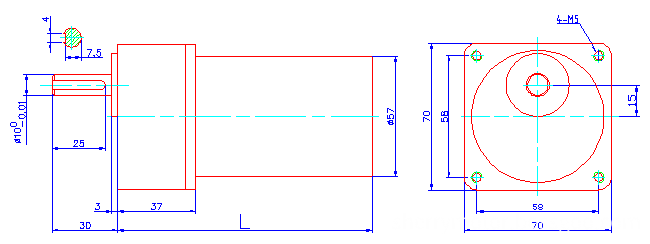

     Outline Drawing:

    (Unit=mm)


    70JB-57ZYN brushed dc gear motor/ wheelchairs 24v geared motors square flange, spur gear motor


    Spur Gear Motor 24v For Wheelchair Door Openner Square Flange Spur Gear
