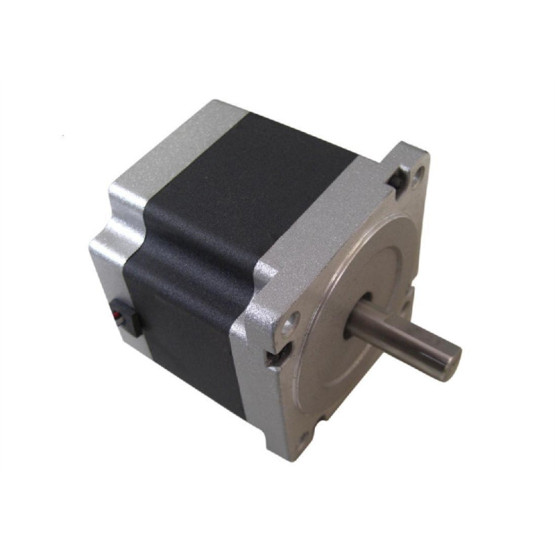

85HS hybrid stepper motor/ high precision motor with length flexible 68 to 155mm

Basic Info

Model No.: 85HS hybrid stepper motor/ high precision motor with length flexible 68 to 155mm

Product Description

The product general information:

Brand Name:	Sherry Motors
Model Number:	85HS
Certification:
Place of Origin:	China

Product commerce clause:

Minimum Order Quantity:
Price:
Payment Terms:	T/T or negotiation
Supply Ability:
Delivery Time:
Packaging Details:	Carton or negotiation

Features

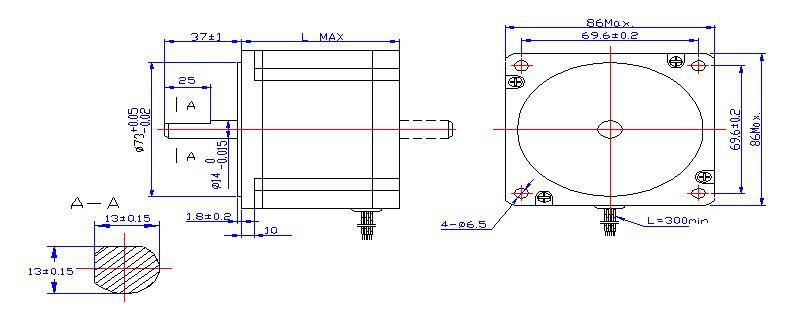

1. This 85mm HS hybrid stepper motor features two endbells at the front and rear end of the motor. Each endbell measures a maximum of 86mm in size, It allows the motor to be easily contacted to the mechanical load.

2. The 85mm HS series of hybrid stepper motor has been optimized in design but incorporating the high-precision rotor and stator into it. This fundamentally improves the motor performance both in step angle accuracy and in reliability.

3. The motor body length is variable from 68mm to 155mm to give the application designers more freedom to choose the specific holding torque for his or her end applications.

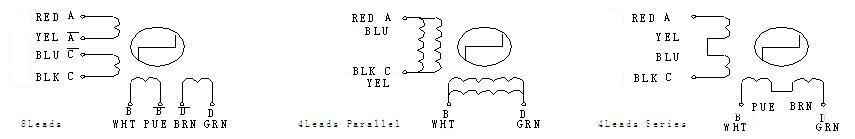

4. The stepper motor is having a wild range of holding torques from 2.8N.m, which also can be slightly changed for your custom designs. Currently, 4-lead, 6-lead and 8-lead of wiring connection are available to make the stepper motors widely fit with different applications among all walks of life.

Applications

They are widely applied to adhesive dispensing equipment, plastic dropping machines, coil wind machines as well as diamond grinding machines.

General Description

Step Angle Error…………………………………………………±5%

Peak Temperature Rise…………………………………………80℃Max

AmbientTemperatureRange…………………………………-20℃－+50℃

Insulation Resistance…………………………………100MΩMin.500VC DC

Dielectric Strength……………………………………500V AC for 1 minute

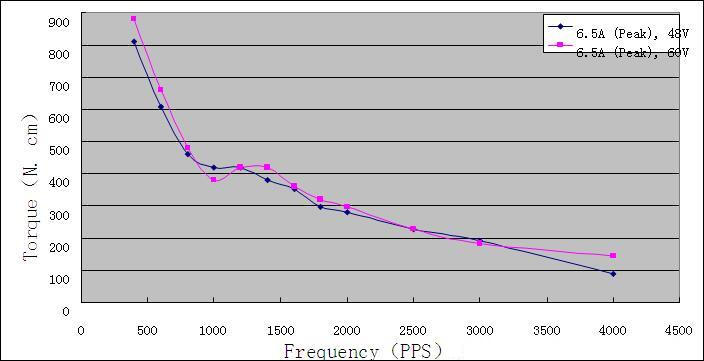

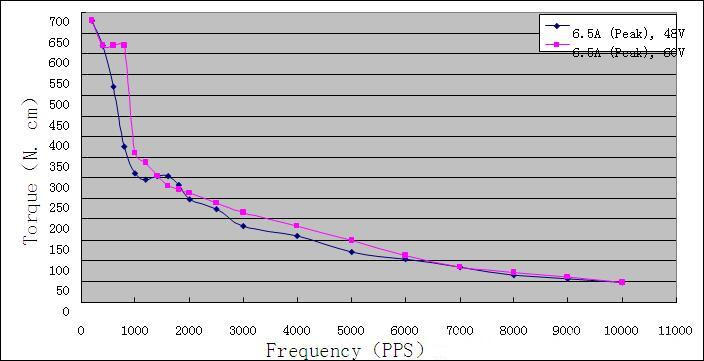

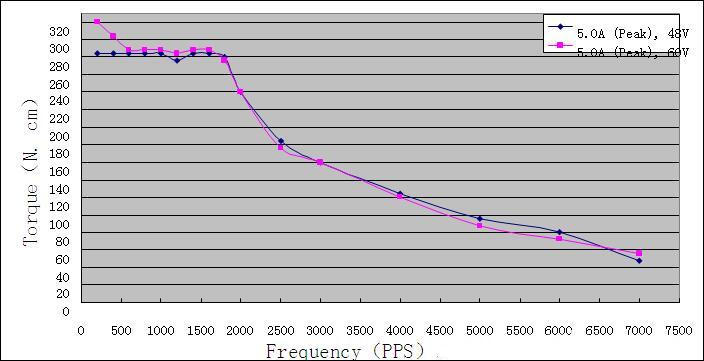

Specifications

Model	Step Angle ( °)	Motor Length L(mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.m)	Lead Wire (NO.)	Rotor Inertia (kg.cm)	Weight (kg)
85HS68-1404-xx	1.8	68	5.6	1.4	4	24	2.8	4	1	1.8
85HS68-4004-xx	1.8	68	2.4	4	0.6	2.8	2.8	4	1	1.8
85HS80-4208-001	1.8	80	4.6	2.97	1.55	6.76	3.2	8	1.4	2.3
85HS80-5504-001	1.8	80	2.2	5.5	0.4	3.5	4.5	4	1.4	2.3
85HS97-3008-001	1.8	97	4.8	3	1.6	8	5	8	1.8	2.8
85HS97-4006-001	1.8	97	3.4	4	0.85	5	4.4	6	1.8	2.8
85HS116-4208-001	1.8	116	5	4.2	1.2	6.5	6	8	2.7	3.6
85HS116-5004-001	1.8	116	5	5	1	11	8.5	4	2.7	3.6
85HS126-6404A-xx	1.8	126	1.8	6.4	0.28	2.85	7	4	3	3.8
85HS126-4008-001	1.8	126	6	4	1.5	8	6.8	8	3	3.8
85HS131-7004-xx	1.8	131	2.8	7	0.4	4	9	4	3.3	4.2
85HS131-3004-xx	1.8	131	5.1	3	1.7	18	9	4	3.3	4.2
85HS155-5004-001	1.8	155	4	5	0.8	10	11	4	3.6	5
85HS155-6504-001	1.8	155	3.9	6.5	0.6	7	11	4	3.6	5
