Basic Info

Model No.: 86BYGX

Product Description

General Description：

Step Angle Error………………………………………±5%

Peak Temperature Rise…………………………………………80℃Max

AmbientTemperatureRange………………………………-20℃~50℃

Insulation Resistance………………………………100MΩMin.500VC DC

Dielectric Strength……………………………………500V AC for 1 minute

Specifications:

* The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

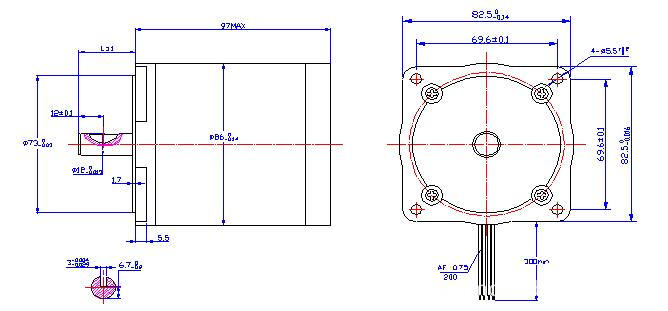

Outline Dimensions:

(Unit=mm)

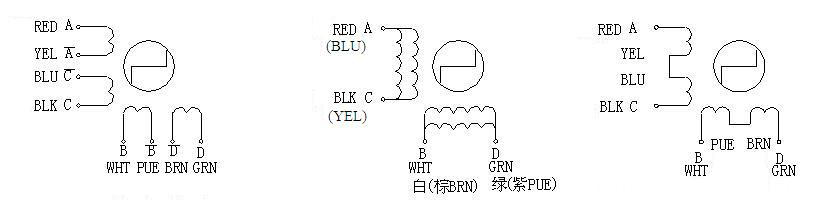

Wiring Diagram:

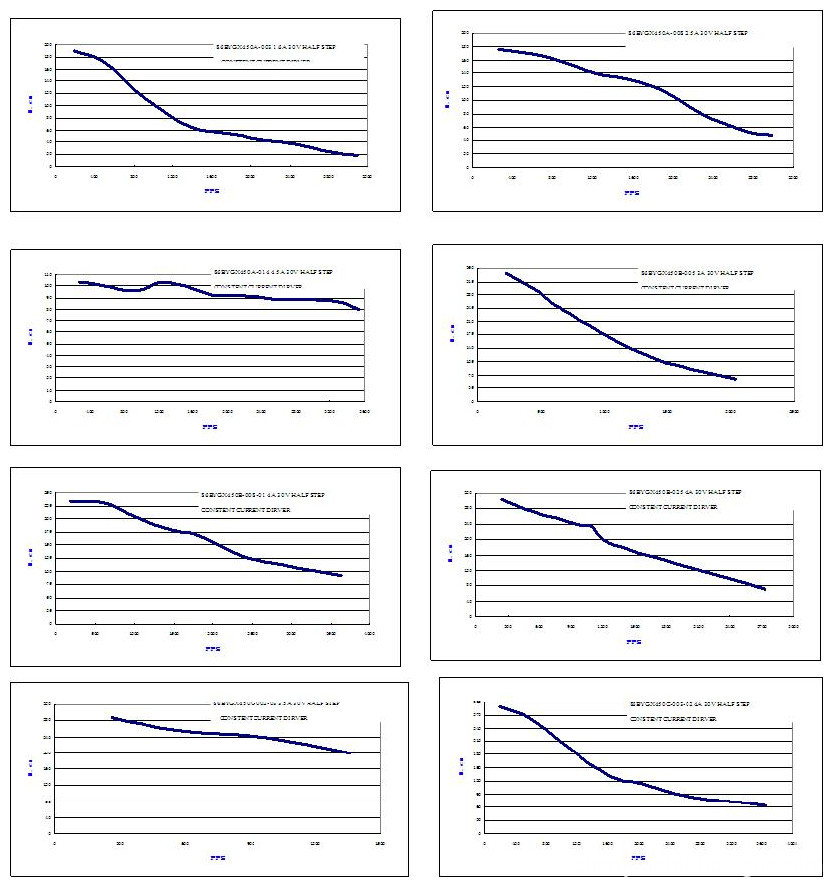

Torque-frequency Characteristics：
