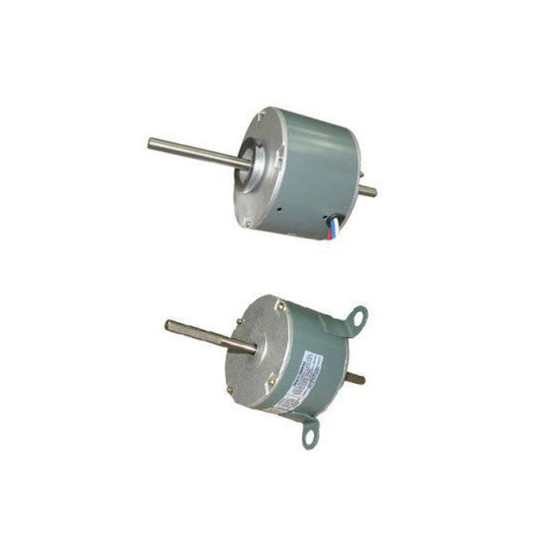

    Cast Aluminum rotor single phase AC motors 140mm for indoor / outdoor units

    Contact Now

    Basic Info


    Model No.: Cast Aluminum rotor single phase AC motors 140mm for indoor / outdoor units


    Product Description



    Certification:

    TS16949/UL

    Model Number:

    140AC-01

    Payment & Shipping Terms:

    Minimum Order Quantity:

    1000pcs

    Price:

    USD 29.00-36.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    50000pcs/month







    Features:

    1. This series single phase AC motors typically has independent housing rolled and formed by high quality steel plate.
    2. The front and rear end shields are of aluminum die-cast, which reduces a lot the motor body weight.
    3. Some of our motors are especially designed with 3 mounting ears welded at the outside of housing, so as to be further assembled with the final applications.
    4. Currently a version of double-shaft extension is available, and the maximum output power can reach 1HP.

    Applications:

    This range of single phase AC motors can be widely applied to indoor/outdoor units for more powerful split air conditioners.



    Specification:

    Model

    Voltage

    (VDC)

    Frequency

    (Hz)

    Power

    (HP)

    Rated Speed

    (rpm)

    ROT

    Cap.

    (μF)

    YDK140-90-6A

    208-230

    60

    1/8

    1075

    CW-LE

    4/370

    YDK140-120-6A

    208-230

    60

    1/6

    1075/2SPD

    REVERSIBLE

    5/370

    YDK140-120-6A5

    208-230

    60

    1/6

    1075

    REVERSIBLE

    5/370

    YDK140-120-6A6

    208-230

    60

    1/6

    1075

    REVERSIBLE

    5/370

    YDK140-120-6a41

    208-230

    50

    1/6

    900/3SPD

    CCW-SE

    5/370

    YDK140/25-6-120

    115

    60

    1/6

    950/3SPD

    CE

    5/370

    YDK140-150-6A5

    208-230

    50/60

    1/5

    1075/3SPD

    CW/CCW

    5/370

    YDK140/23-6-150

    208-230

    60

    1/5

    1075



    3/5/370

    YDK140-185-4A28

    220

    50

    1/4

    1450



    7.5/370

    YDK140-185-4A35

    230

    50

    1/4

    1350

    REVERSIBLE

    5/370

    YDK140-185-6A

    208-230

    50/60

    1/4

    1050/900

    CCW-LE

    7.5/370

    YDK140-185-6A3

    208-230

    60

    1/4

    1075

    REVERSIBLE

    5/370

    YDK140-185-6A5

    208-230

    50/60

    1/4

    1075/3SPD

    CW/CCW

    5/370

    YDK140-185-6A6

    208-230

    60

    1/4

    1075

    REVERSIBLE

    5/370

    YDK140-185-6A7

    208-230

    60

    1/4

    1075/3SPD

    REVERSIBLE

    7.5/370

    YSK140-120-6A13

    208-230

    50/60

    1/6

    1000/2SPD

    CW-LE

    5/370

    YSK140-120-6A14

    208-230

    50/60

    1/6

    1050/3SPD

    CW-LE

    5/370

    YSK140-120-6A15

    208-230

    50/60

    1/6

    1095/3SPD

    CCW-LE

    5/370

    YSK140-120-6A16

    208-230

    50/60

    1/6

    1050/3SPD

    CW-LE

    5/370

    YSK140-120-6A17

    208-230

    50/60

    1/6

    1050/3SPD

    CW-LE

    5/370

    YSK140-120-6A18

    208-230

    50/60

    1/6

    1000/2SPD

    CW-LE

    5/370

    YSK140-120-6A22

    208-230

    60

    1/6

    1050/3SPD

    CCW-LE

    5/370



    Cast Aluminum Rotor Single Phase AC Motors 140mm for Indoor Units Double shaft Extension Available
