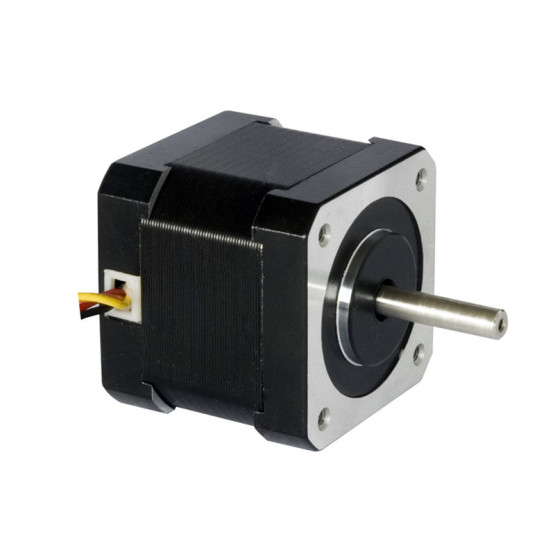

Hybrid stepping motors NEMA 17 mirror inished endcaps strengthened shaft

Basic Info

Model No.: Hybrid stepping motors NEMA 17 mirror inished endcaps strengthened shaft

Product Description

General Introduction:

The 42BYGHM series hybrid stepper motor rotates only 0.9°at a time. This makes it suitable for use in applications where precise positioning is required.

Both the rotor and stators are made of iron sheets that are stacked and riveted together by high-precision, double-rotation progressive punching machine. This ensures precision and the consistency of the motor armatures while maintaining the step angle accuracy of +/-5% for the complete stepper motor.

The motor body length ranges from 34mm to 38mm, and the holding torque can reach as much as 0.48N.m. Custom windings and outleads are also available for OEM applications.

Features:

Frame size at NEMA Size 17 with a step angle of 0.9 degrees.
Both the rotor and the stator lamination stacks are formed in a single lot by the high-precision and dual-rotary progressive punching machines, which will safeguard both the precision and the quality consistency of the motor armatures to retain +/-5% step angle accuracy for the complete stepping motor.
The outside of stator lamination stacks has been well powder-coated in black to survive the temp. rise Max. 80 degrees centigrade.

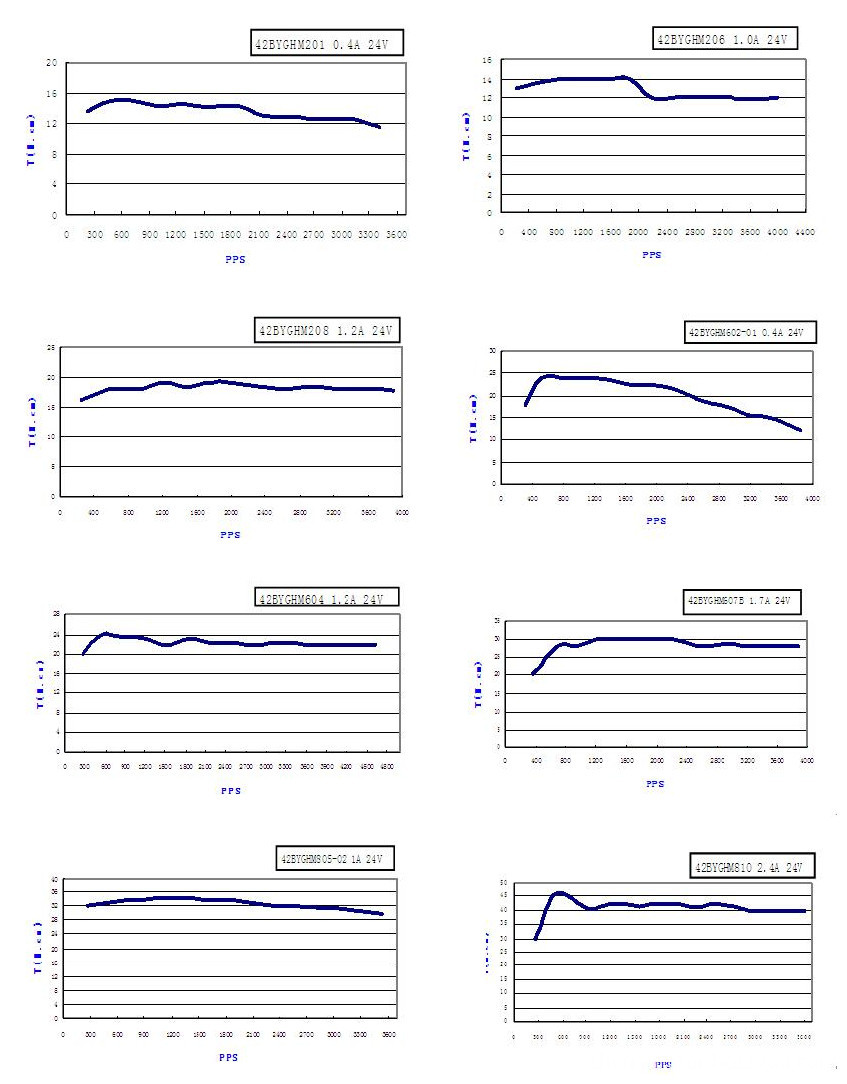

A nice pull-out torque curve can be an index to one of your evaluations on our Hybrid stepper motors.
Custom windings, terminals and connectors, extended shaft can also be available for OEM applications.

Applications:
The hybrid stepping motors are extensively applied to engraving machines, stage lighting facilities, medical instruments as well as textile machinery.

Specifications:

Model	Step Angle (°)	Motor Length (mm)	Rated Voltage (V)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (g.cm)	Lead Wire (NO.)	Rotor Inertia (g.cm2)	Detent Torque (g.cm)
42BYGHM201	0.9	34	5	0.4	12.5	21	1600	4	34	180
42BYGHM206	0.9	34	3.6	1	3.6	3.3	1400	6	34	180
42BYGHM208	0.9	34	2.5	1.2	2.1	5	2100	4	34	180
42BYGHM602	0.9	40	11.2	0.4	28	30	2600	6	54	220
42BYGHM604	0.9	40	3.6	1.2	3	3.5	2600	6	54	220
42BYGHM607	0.9	40	2.6	1.7	1.5	3.2	3200	4	54	220
42BYGHM805	0.9	48	3.5	1	3.5	7.6	3700	4	68	260
42BYGHM809	0.9	48	2.7	1.68	1.6	3.5	4200	4	68	260
42BYGHM810	0.9	48	2.4	2.4	1	1.8	4800	4	68	260

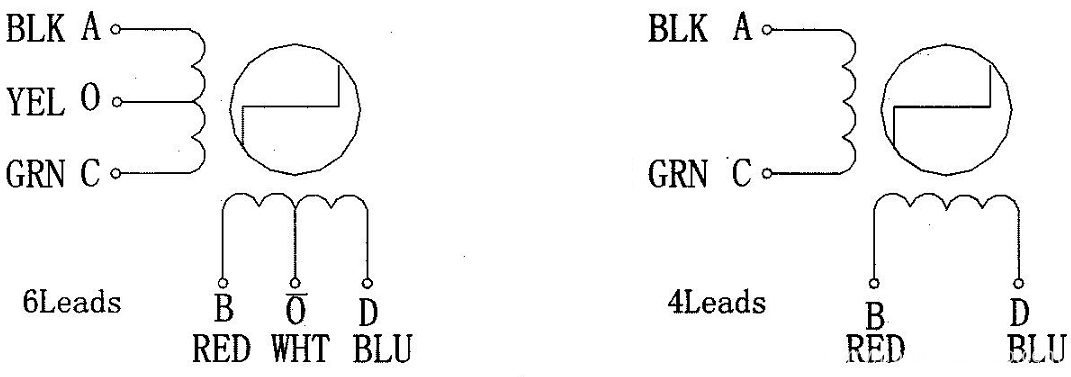

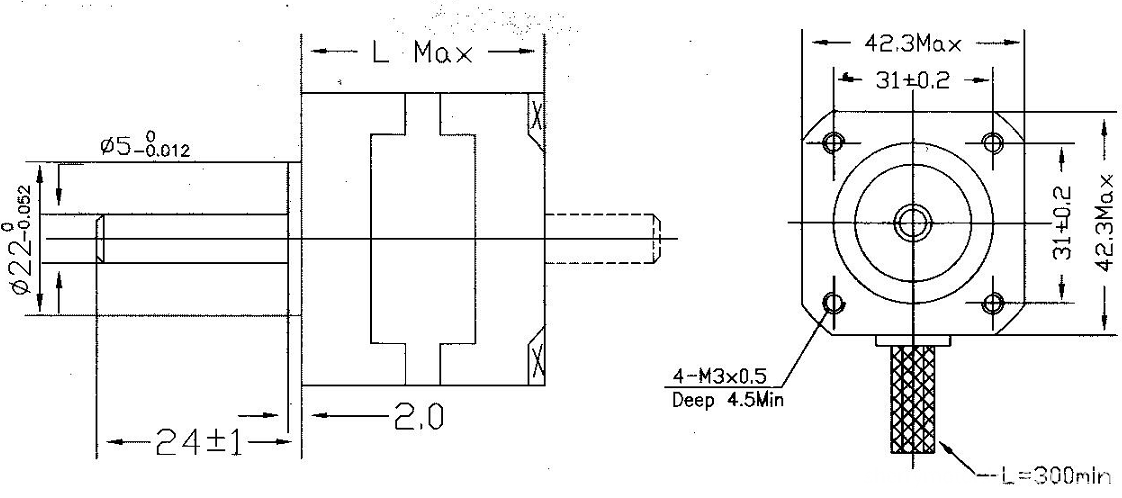

Dimensions:

(Unit=mm)

Hybrid stepping motors NEMA 17 mirror inished endcaps strengthened shaft

Endcaps Strengthened Shaft Motor Body Length 34mm to 38mm Step Angle of 0.9 Degrees
