Micro 5v 12v PM stepper motors with less noise and vibrations from China

Location: Home >PM Stepper Motor > Micro 5v 12v PM stepper motors with less noise and vibrations

Micro 5v 12v PM stepper motors with less noise and vibrations

Basic Info

Model No.: Micro 5v 12v PM stepper motors with less noise and vibrations

Product Description

1、Product Code： housing size is 15mm / step angle of 18° with 2-phase / holding torque currently ranges from 25g.cm to 40 g.cm / external flexible printed circuit / can assembled with a brass synchronous pulley / can be modified to your OEM designs

2、Product Details:

Brand Name:	Sherry Motors
Model Number:	15BY20L
Certification:	TS-16949/ROHS/ISO14001/UL/TÜV
Place of Origin:	China

3、 Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Price:	negotiation
Payment Terms:	negotiation
Supply Ability:	200000pcs/month
Delivery Time:	30 working days after received your payment
Packaging Details:	Carton or negotiation

4、Detailed Product Description：

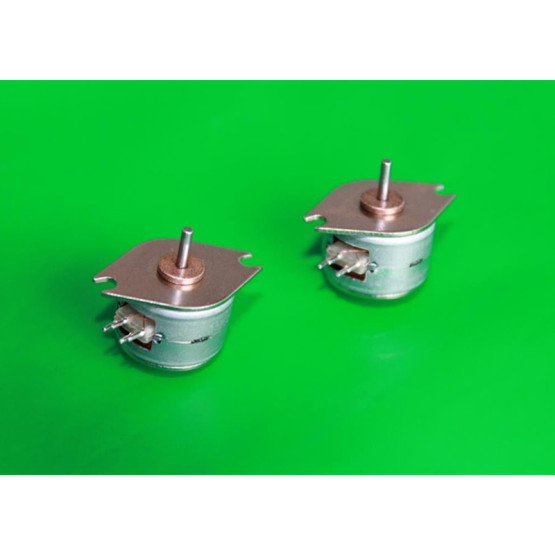

1、 The housing size at 15mm.

2、 PM stepper motors are comprised of permanent magnet rotors with no teeth, which are magnetized perpendicular to the axis of rotation.

3、 15mm PM stepper motors are formatted at the step angle of 18°with 2-phase.

4、 The holding torque currently ranges from 25g.cm to 40 g.cm or it can be modified to your OEM designs.

5、 Have been optimized in construction by building up with the external flexible printed circuit (FPC for short).

6、 The end of extended shaft is assembled with a brass synchronous pulley,

7、 Operates with a less noise and vibration while the holding torque can be accordingly increased 10 times if the speed ratio is normally determined at 1:10.

5、Applications:

They are widely used in scanners, fax machines, printers as well as copy machines, digital cameras, video machines, check machines and automotive instrumentations.

6、Specifications:

Model	Step Angle ( °)	No. of Phase	Voltage (VDC)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding Torque (g.cm)	Detent Torque (g.cm)	Rotor Inertia (g/cm²)
15BY20L01	18	2	5	0.5	10	2	27	10	0.3
15BY20L02	18	2	12	0.065	190	37	24	10	0.3
15BY20L08	18	2	7.2	0.15	50	9.5	25	10	0.3
15BY20L017	18	2	5	0.33	15	3	25	5	0.3
15BY20L018	18	2	12	0.04	300	58	25	6	0.3

7、

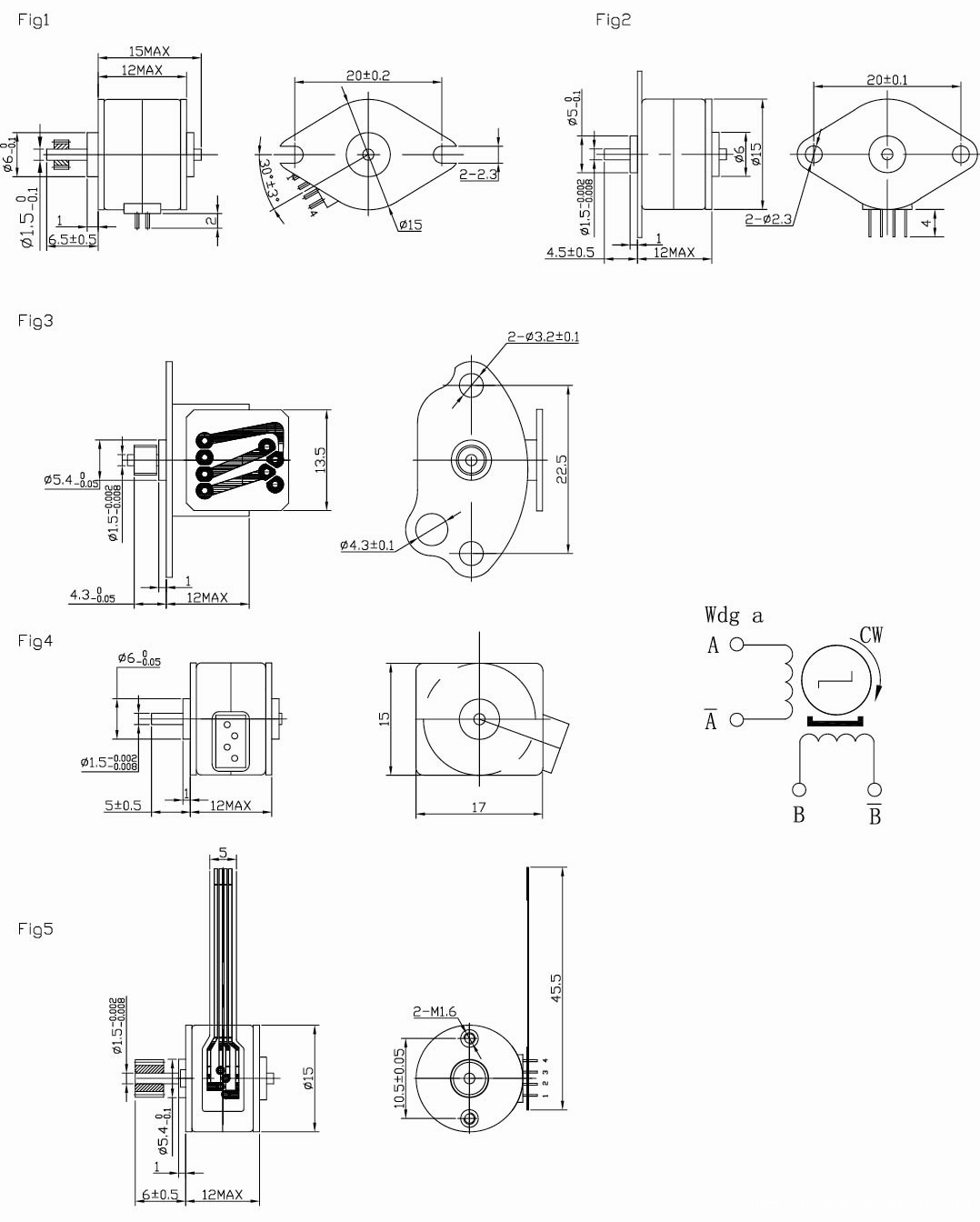

Dimensions:

(Unit=mm)

Micro Pm Stepper Motor 5v 12v Low Noise Motor Holding Torque 25g.cm to 40 G.cm
