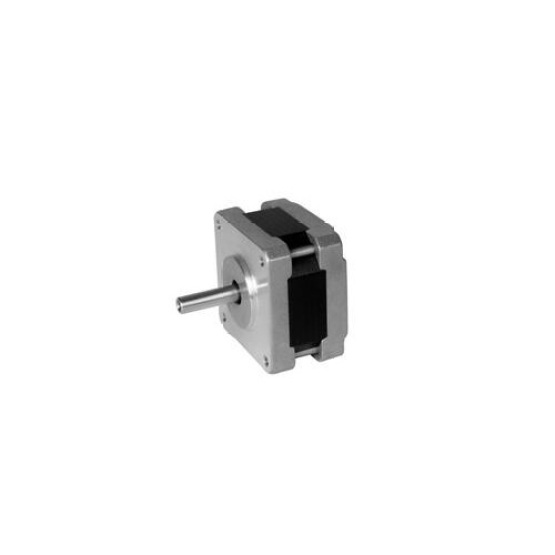

Micro stepper motors square 39mm sub-contracted and uniform endcaps

Basic Info

Model No.: Micro stepper motors square 39mm sub-contracted and uniform endcaps

Product Description

Certification:	TS-16949/RoHS/ISO14001
Model Number:	39BYG

Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Price:
Packaging Details:	Carton or negotiation
Delivery Time:	40 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

The motor frame size is at 39mm.
Being constructed at a step angle of either 1.8 degrees or 0.9 degrees.
The holding torque ranges from 550g.cm to 2800g.cm, which will be mostly evaluated by the design engineers.
Endures the ambient temperature from -20 to +50 degrees centigrade.
Pass through a breakdown testing at 500VAC for 1 minute before delivery.
Custom windings, shaft modifications as well as mounting configurations are available.

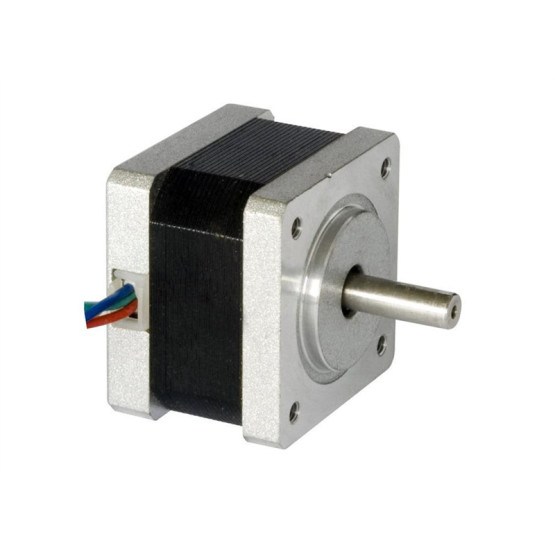

General Introduction:

The 39mm series hybrid stepper motor rotates at a step angle of either 1.8 degrees or 0.9 degrees. It measures 39mm in frame size, and its motor body length is variable from 20mm to 45mm.

This 2-phase hybrid step motor is capable of delivering a holding torque ranging from 550g.cm to 2800g.cm. Choices of holding torques will be made by the design engineers during model selection.

Custom windings, shaft modifications, and mounting configurations are available for OEM applications. Before a delivery, we will especially inspect one by one the hybrid stepper motors by enduring a dielectric strength of 500VAC for one minute. This inspection process is necessary because it ensures the working safety of the motor when it is connected to appliances.

Applications:
They are widely applied to printers, fax machines, engraving machines and many more.

Specifications:

Model	Motor Length L(mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (g .m)	Lead Wire (NO.)	Rotor Inertia (g.cm)	Detent Torque (g.cm)	Weight (Kg)
39BYG003-03	20	12	0.48	25	26	1000	4	11	50	0.12
39BYG013	20	2.72	0.4	6.8	6.5	550	4	11	50	0.12
39BYG104-01	26	6.3	0.42	15	7.3	880	6	13	70	0.14
39BYG301	31	4.5	0.5	9.0	4.0	1000	6	18	100	0.16
39BYG215	34	12	0.4	30	34	2100	4	20	120	0.18
39BYG221	34	5.0	1.0	5.0	3.0	1800	4	20	120	0.18
39BYG404-13	38	6.0	0.8	7.5	7.0	2000	6	24	180	0.2
39BYG408-02	38	13	0.5	26	30	1800	4	24	180	0.2
39BYG601	45	12	0.3	40	60	2800	4	40	250	0.25

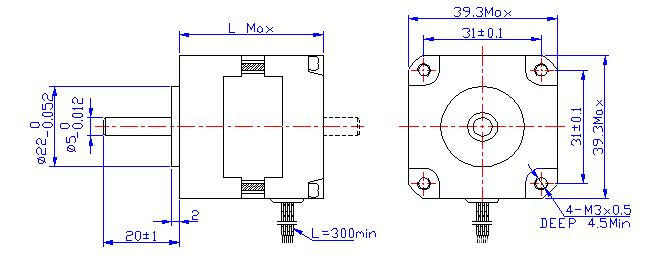

Dimensions and Wiring Diagram:

(Unit=mm)

Square Hybrid Stepper Motor Micro Stepper Motor Stepper Degree 1.8 or 0.9
