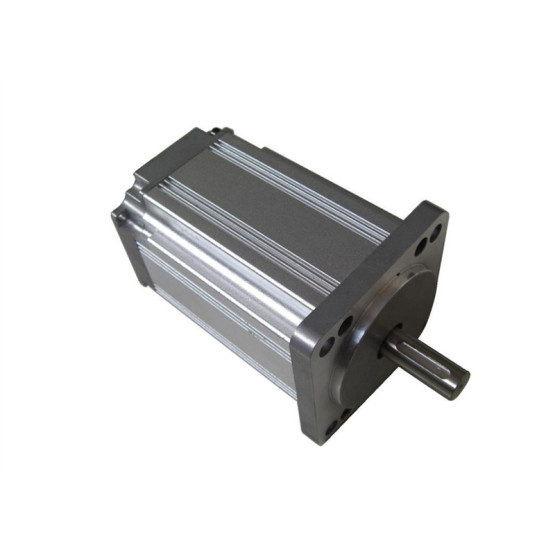

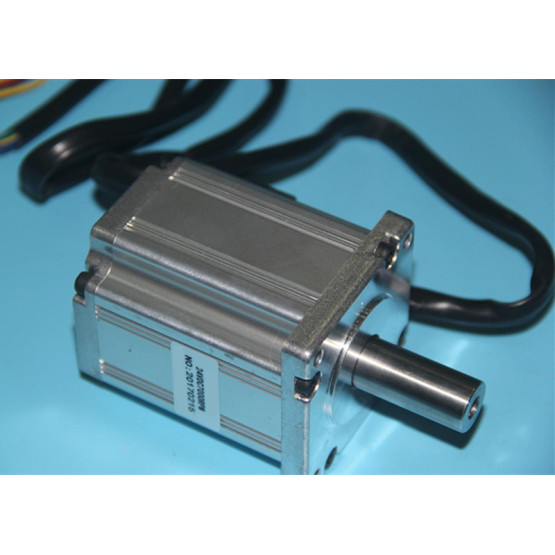

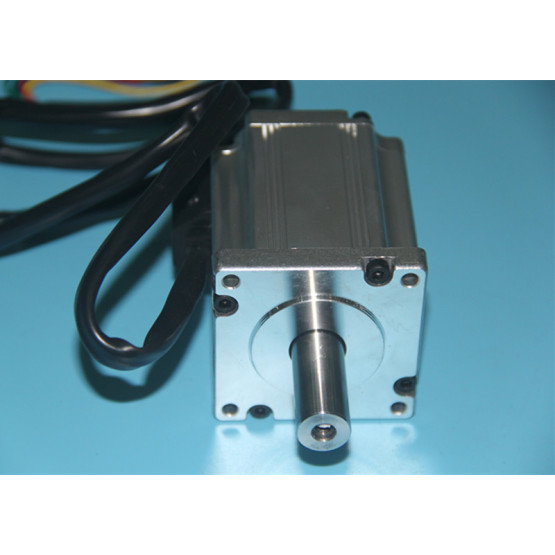

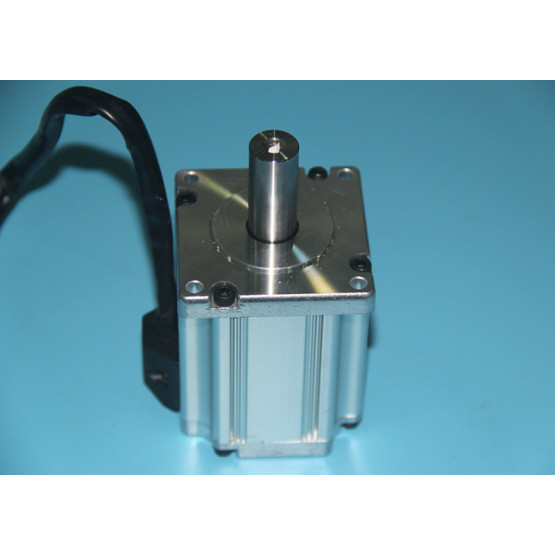

Nd-Fe-B magnets brushless dc motors NMB ball bearings / 80mm BLDC motors

Basic Info


Model No.: Nd-Fe-B magnets brushless dc motors NMB ball bearings / 80mm BLDC motors


Product Description

Certification:

TS-16949/RoHS/ISO14001

Model Number:

80BL

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 72.00-82.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

8,000pcs/month



Features:

  1. Frame size at 80mm with a square flange.
  2. Aluminium alloy extruded housing, being accompanied with aluminium die cast end caps, greatly decreases the motor body weight to make it possible to fit some of portable devices.
  3. Insulation Class B is assured, with excellent performance in harsh, humid environments.
  4. Dynamically balanced rotor, Nd-Fe-B magnets and NMB ball bearings must be thanked for having extended the life-cycle.
  5. In a format of 4-pole and 3-phase, this range of brushless dc motors, with Wye-windings, runs optionally at 36VDC, 48VDC, 220VDC and even 310VDC
  6. Flexible motor body length, customized extended shaft and pilot are also available..

Applications:

Our 80mm brushless DC motors are especially designed for cutting& welding machines, solar facilities, as well as the pump & valve industry.




Specifications:

Model

80BL01

80BL02

80BL03

Number of Poles

4

4

4

Number of Phase

3

3

3

Rated Voltage       VDC

48

310

310

Rated Speed       RPM

3000

3000

3000

Rated Torque       N-m

0.7

1.1

1.6

Rated Current      Amps

8.5

1.9

2.2

Output Power      Watts

220

350

500

Peak Torque      N-m

2.45

3.5

6.6

Peak Current     Amps

25

6.5

7

Torque Constant     N-m/Amps

0.115

0.741

0.74

Counter EMF Constant    V/kRPM

1.2

77.5

77.5

Motor Length      mm

111

131

161

Weight          kg

3

4.5

6

Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.

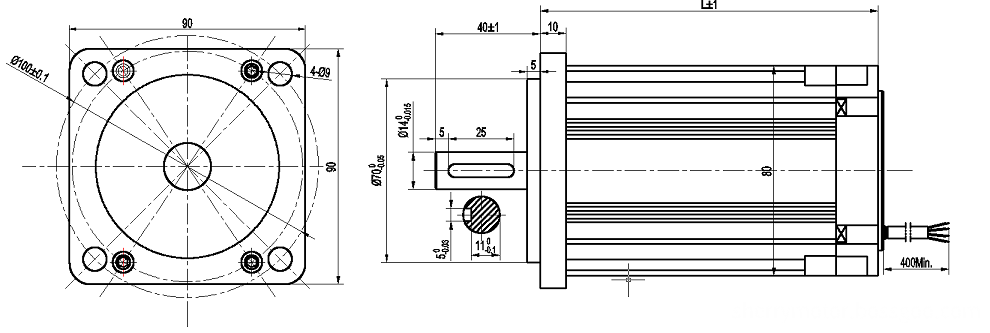

Dimensions:
(Unit=mm)

 Dimension

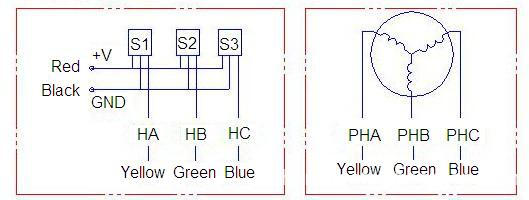

Wiring Diagram:

Wiring

Attention: Hall Operation Voltage: +5VDC~+20VDC
