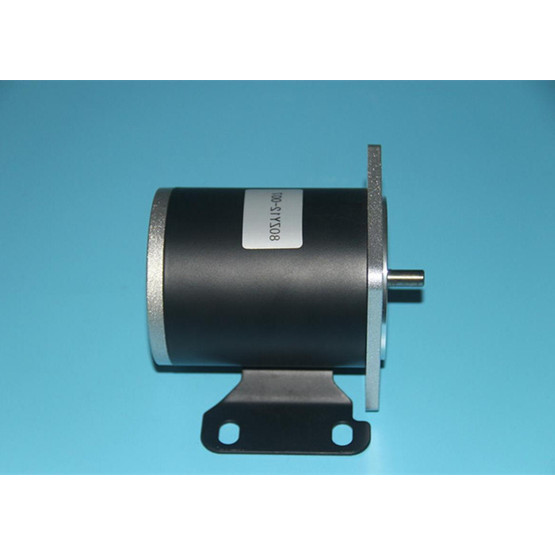

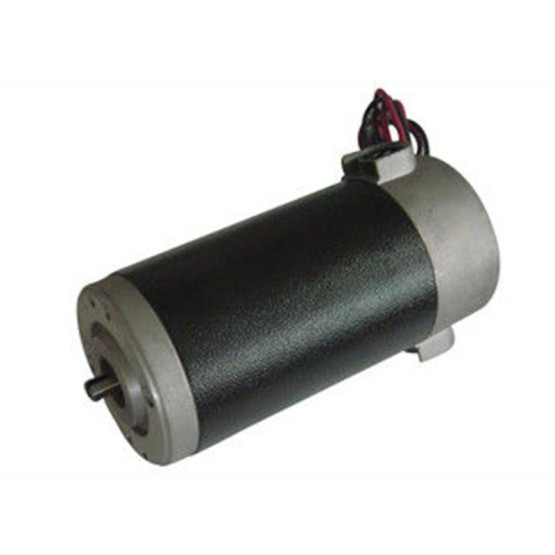

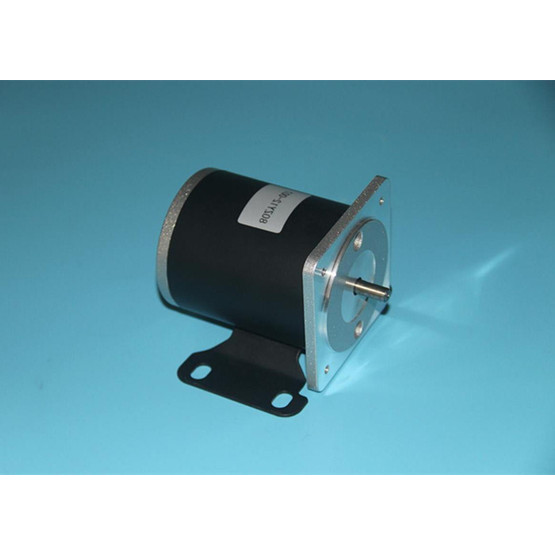

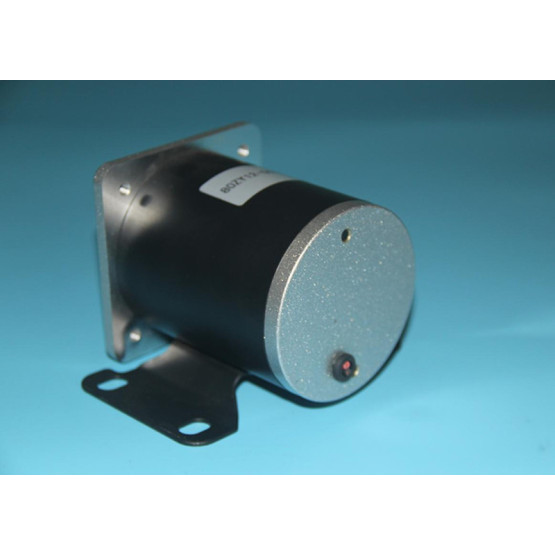

Rare earth magnets 80mm brushed DC motors with copper windings / steel housing

Basic Info

Model No.: Rare earth magnets 80mm brushed DC motors with copper windings / steel housing

Product Description

Certification:	TS-16949/RoHS/ISO14001
Model Number:	80ZYT

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:
Packaging Details:	Carton or negotiation
Delivery Time:	35 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	6,000pcs/month

General Introduction:

The motor diameter is determined at 77.7mm. The nominal voltage is optional at 12VDC, 24VDC, 36VDC or even at 240VDC. NMB or SKF namebrand ball bearings are adopted to improve the motor performance.

The motor body length is flexible to better fit your final applications. Replaceable carbon brushes are available to prolong the motor servicing life. Customized extended shaft and winding configurations are possible upon request.

Features:

1. Basic ways to punch and stack the rotor laminations has made the production cost cheaper to win more marketing shares.

2. Customized and high-efficiency winding machines also help us with a large-scale production to save the winding cost,

3. The working voltage varies from 12VDC to maximally 180VDC, whose voltage range allows the design engineer to have great flexibility during his or her R&D of light duty machines,

4. Replaceable carton brushes and NMB or SKF dual ball bearing contribute a lot in our ways to improve our PMDC motor performance.

5. Different insulation classes of raw materials are available to keep up with your target purchasing budgets.

6. Worm gear boxes can also be introduced to upgrade the rated torque.

Applications:

They are widely applied to auto fans, door openers, pumping equipment and polishers.

Specifications:

Model	Rated Voltage (V)	Rated Current (A)	Rated Speed (rpm)	No-load Current (A)	No-load Speed (rpm)	Rated Torque (N.m)	Motor Body Length (mm)
80ZYT001	12	≤16.5	3000	≤3.5	3600	0.4	147
80ZYT002	24	≤10	3373	≤1.6	3539	0.5	174
80ZYT003	24	≤10.5	2700	≤2	3000	0.7	174
80ZYT004	24	≤11.5	2660	≤2	3100	0.6	143
80ZYT005	36	≤5	2600	≤0.9	2800	0.5	179
80ZYT0131	24	≤18	3800	≤3	4200	0.7	169
80ZYT0132	24	≤20	4050	≤3	4500	0.7	169
80ZYT014	12	≤20.5	1900	≤1.5	2500	0.8	143
80ZYT039	90	≤7.5	4100	≤0.8	4600	1.2	174

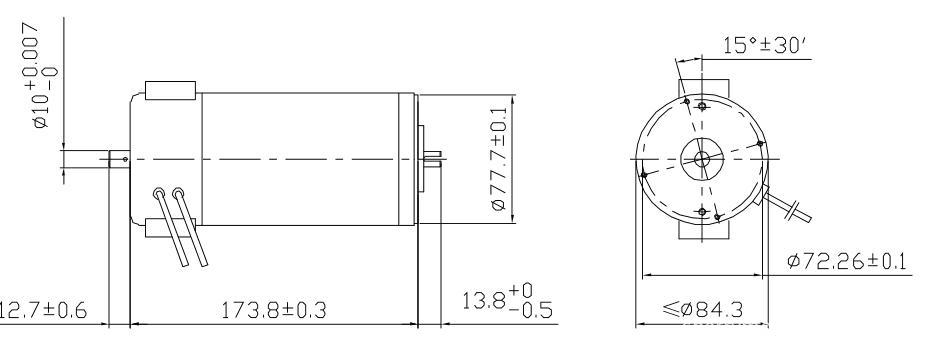

Dimension

Steel Housing Brushed 80mm Motor Motor with Copper Winding Motor Determined at 77.7mm
