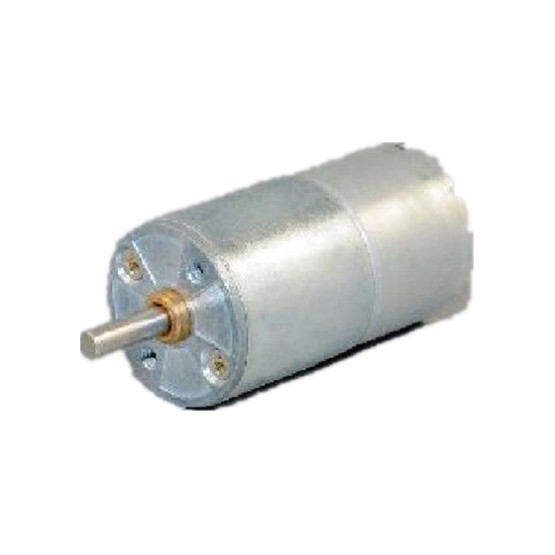

RF-310TA brushed dc gear motor/ 24.4mm 3VDC or 5VDC motor with planetary gearhead

Basic Info


Model No.: RF-310TA brushed dc gear motor/ 24.4mm 3VDC or 5VDC motor with planetary gearhead


Product Description

RF-310TA brushed dc gear motor/ 24.4mm 3VDC or 5VDC motor with planetary gearhead



Certification:

TS16949/RoHS

Model Number:

RF-310TA

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 13.95-15.95 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

50,000pcs/month





Features:

  1. Low nominal voltage as low as either 3VDC or 5VDC.
  2. Dual ball bearings can be introduced for a more reliable performance.
  3. The housings with zinc paint can survive the extreme working conditions.
  4. More options in gear ratio is offered for your choice in application.

Applications:

Our small PMDC motor, with a planetary gearhead, is widely applied to power tools, industrial valves and some other light manufacturing.



Specifications:





Model

Voltage (VDC)

No Load

At Max. Efficiency

Stall

Operating Range

Nominal

Speed

(r/min)

Current

(A)

Speed

(r/min)

Current

(A)

Torque

(g.cm)

Output Power

(W)

Torque

(g,cm)

Current

(A)

RF-310TA-12340

2.0~4.0

3.0

3540

0.030

2670

0.092

5.2

0.13

21.1

0.283

RF-310TA-11400

4.0~6.0

5.0

4800

0.030

3764

0.109

7.9

0.29

36.6

0.39



Rated Voltage

(VDC)

Reduction Rate

1/5.68

1/12.5

1/32

1/83.44

1/215

3V

Rated Torque (kg.cm)

0.20

0.05

0.10

0.25

0.57

Rated Speed (rpm)

470.25

213.68

83.47

32.01

12.42

5V

Rated Torque (kg.cm)

0.04

0.07

0.17

0.39

0.91

Rated Speed (rpm)

662.68

301.12

117.63

45.11

17.51




Reduction Ratio

L(mm)

1/5.68

17.5

1/12.5

21.5

1/32

24

1/83.44

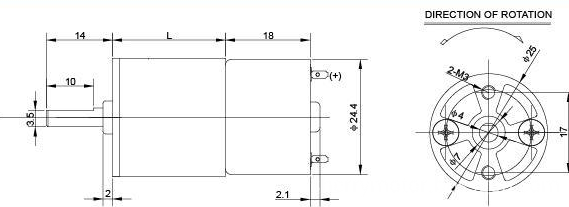

 Outline drawing:

(Unit=mm)


RF-310TA brushed dc gear motor/ 24.4mm 3VDC or 5VDC motor with planetary gearhead
