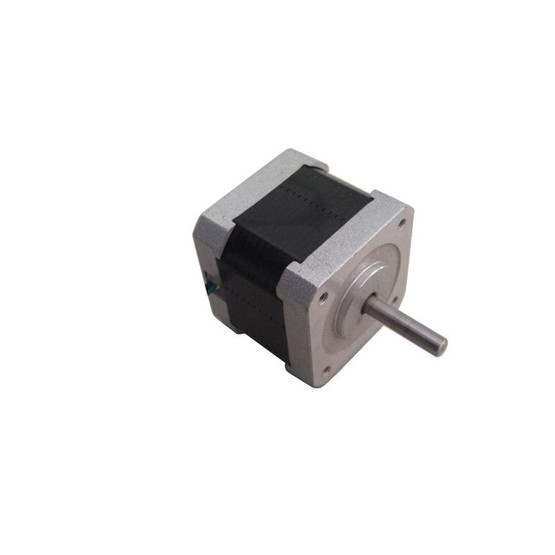

Square flange nema 17 hybrid stepper motor for printers 12v stepper motor

Basic Info


Model No.: Square flange nema 17 hybrid stepper motor for printers , 12v stepper motor


Product Description

Certification:

TS-16949/RoHS/ISO14001

Model Number:

42BYGH

Payment & Shipping Terms:

Minimum Order Quantity:

3000pcs

Price:

USD 8.50-10.50 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

200,000pcs/month



General Introduction:

True to its name, the 42BYGH hybrid stepper motor has a frame size of 42mm. It is internationally called as NEMA 17. The product runs at a step angle of 1.8 degrees with an accuracy of +/-5%.



This 2-phase stepping motor is available in various body lengths including 34mm, 40mm and 44mm. It delivers a holding torque somewhere between 0.095N and 0.52N. Upon your request, we can add a gearbox to the motor in order to increase its holding torque.



Please make sure that the motor runs at an ambient temperature between -20℃ and 50℃ for prolonged service life.



Features

  1. The motor frame size is internationally called as NEMA Size 17.
  2. Runs at the step angle of 1.8 degrees with a step angle accuracy of +/-5%.
  3. The motor body length is optional at 34mm, 40mm, 44mm and 48mm to allow you more design freedom in application.
  4. Low current, low rotor inertia but with a big holding torque.
  5. Our hybrid stepping motor delivers a holding torque between 0.095N.m to and 0.52N.m, which also can be greatly increased by properly adding some sorts of gearboxes.

Applications:
   They are widely applied to the fine positioning applications, such as copying machines, printers, plotters and high-end office equipment.



Specifications:



Model

Step Angle (°)

Motor Length (mm)

Rated Voltage (V)

Rated Current (A)

Phase Resistance  (Ω)

Phase Inductance  (mH)

Holding Torque (g.cm)

Lead Wire  (NO.)

Rotor Inertia (g.cm2)

Detent Torque

(g.cm)

42BYGH201

1.8

34

12

0.16

75

42

950

5

34

200

42BYGH202

1.8

34

12

0.3

40

22

1250

6

34

200

42BYGH610

1.8

40

3.6

1.2

3

3.3

3000

6

54

220

42BYGH613

1.8

40

2.4

1.7

1.5

2.5

3500

4

54

220

42BYGH616

1.8

40

4.1

0.5

8

15

2600

4

54

220

42BYGH718

1.8

44

8.9

0.5

18

23

2900

6

50

250

42BYGH721

1.8

44

10

0.25

40

36

2000

6

50

250

42BYGH722A

1.8

44

12

0.38

31.6

32

3200

6

50

250

42BYGH801

1.8

48

12

0.4

30

28

3800

6

68

280

42BYGH803

1.8

48

5.6

0.8

7

4

2600

6

68

280

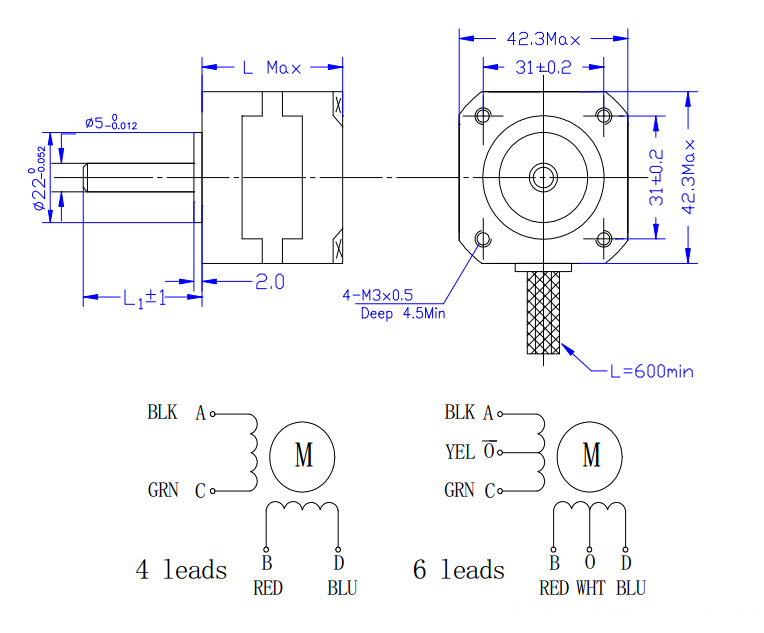

Dimensions:

(Unit=mm)


Square flange nema 17 hybrid stepper motor for printers , 12v stepper motor
