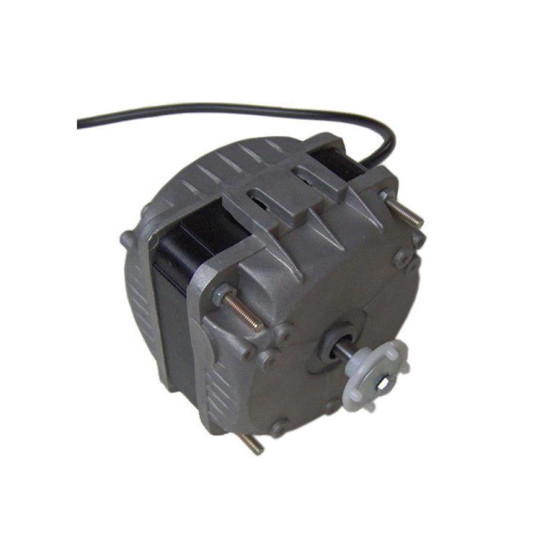

Model No.: Steel stator anti-rust steel shaded pole induction motor / water-cooling motor

Product Description

Payment & Shipping Terms:

Features:

1. The side length of stator lamination stacks is designed at 84mm
2. The stator lamination stacks are well surface-treated for anti-rust and anti-moisture performances
3. Aluminium die cast endcaps enables the motor body weight decreased to some extent to save the whole cost in mass production
4. As one type of the unique induction motors, our AC motor is having copper shade windings, which do not receive any direct electrical charge. Instead, it is the magnetic flux created by the interactions of the windings in the pole with the moving rotor that further increases the torque once started
5. A plastic injection component is added to the front end of extended shaft for a further assembly with your applications

Applications:

Our small shaed-pole motors are widely applied to water-cooling facilities, air-cooling facilities as well as air cleaners.

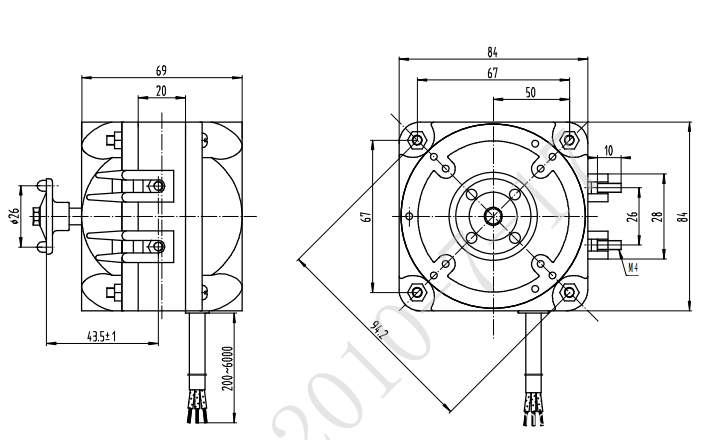

Outline Drawings:

(Unit=mm)
