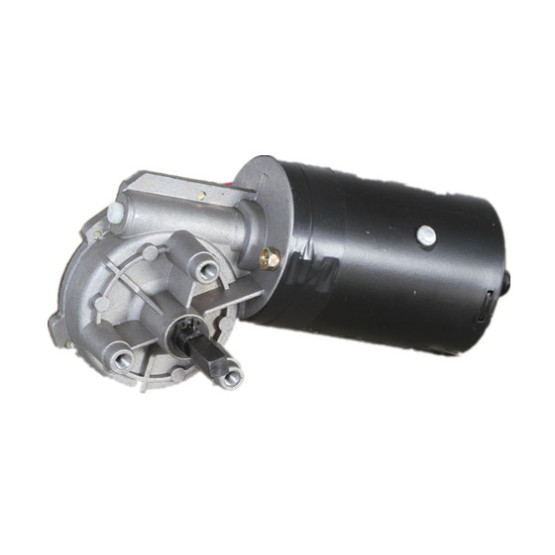

ZDM1531 brushed dc gear motor/ 12v with SKF or NMB ball bearing for door openers

Basic Info


Model No.: ZDM1531 brushed dc gear motor/ 12v with SKF or NMB ball bearing for door openers


Product Description

ZDM1531 brushed dc gear motor/ 12v with SKF or NMB ball bearing for door openers





Certification:

TS16949/RoHS

Model Number:

ZDM1531

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:


Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

30,000pcs/month





Features:

  1. Dynamically balanced armatures to ensure a smooth and reliable operation.
  2. Well machine-turned commutators to Max. eliminate any extra noise.
  3. Well-known namebrand of rare earth magnets to improve the motor performance.
  4. High-precision worm gearbox with dedicated workmanships to be couple with the motor body to achieve a bigger torque.

Applications:

Our worm geared PMDC motors are Widely applied to rain wipers in small cars and door openers.



Specifications:

Model

Voltage

(VDC)

No-load Current

(A)

No-load Speed

(RPM)

Torque

(N.m)

Rated Current

(A)

Rated Speed

(RPM)

Rated Power

(W)

Length

(mm)

ZDM1531A

12

1.5

40

5.8

8

35

40

175

ZDM1531B

12

0.8

300

0.6

3

220

40

175

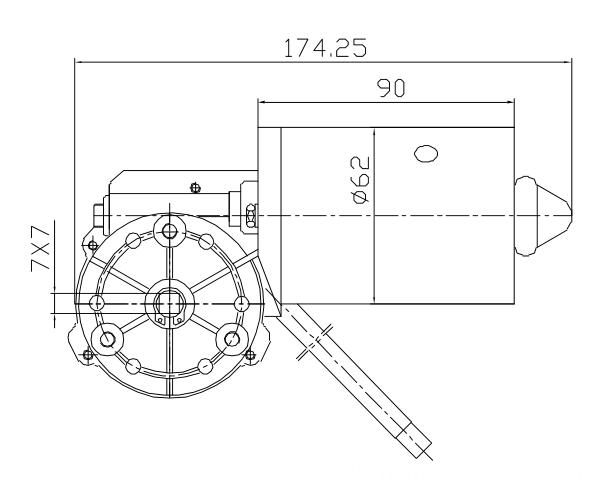

Outline drawing:

(Unit=mm)

ZDM1531 brushed dc gear motor/ 12v with SKF or NMB ball bearing for door openers
