12V PM high torque stepper motors 35mm / 2 phase stepper motor

Basic Info

Model No.: 12V PM high torque stepper motors 35mm , 2 phase stepper motor

Product Description

Certification:	TS-16949/RoHS/ISO14001
Model Number:	35BY

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 11.00-14.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

Frame size at 35mm by having the basic performances of PM stepping motor.
Quality ball bearings and Nd-Fe-B magnets to produce more reliable performances.
A rotating nut and a leadscrew are combined into a linear actuator with a help of the motor technology.
Compact designs and a good output torque.
The captive shaft configurations can be optional upon request.

Applications:

The involvement shall cover medical diagnostics, inspection and security devices, pump flow control and metal fabrication.

Specifications:

Model

Step Angle

(°)

No. of Phase

Voltage

(V)

Current

(A)

Resistance

(Ω)

Travel Per Step Avail

(mm)

The Mark Thrust

(N)

The Mark Pull

(N)

After All Journey

(mm)

35BY32Z-01

11.5

2

12

1.45

8.3

0.036

25(At 250Hz)

10.8

35BY32Z-02

15

2

0.5

8

0.036

55(At 400Hz)

12.5

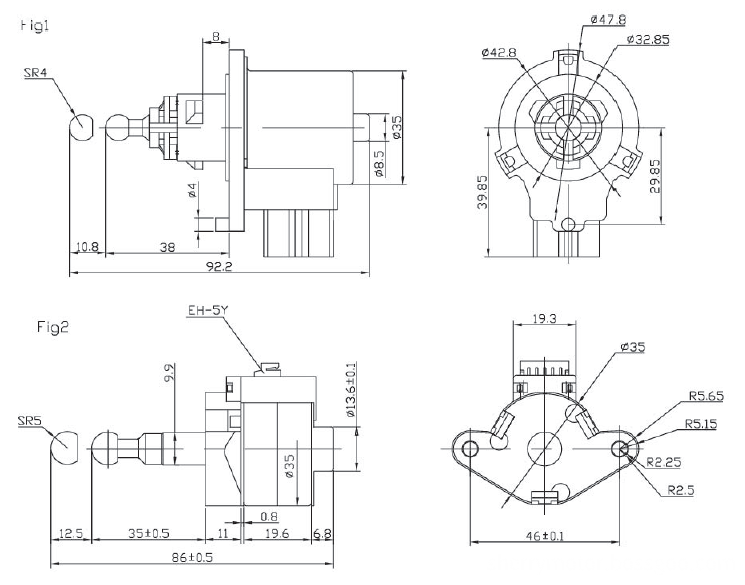

Outline drawing:
(Unit=mm)

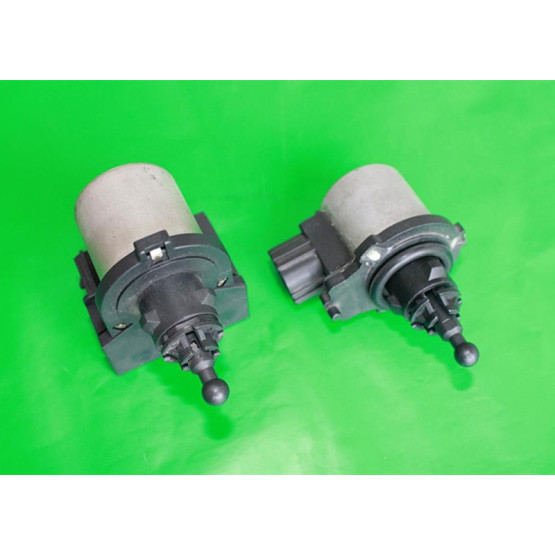

12V PM high torque stepper motors 35mm , 2 phase stepper motor

12V PM High Torque Stepper Motor 2 Phase Stepper Motor Frame Size at 35mm
