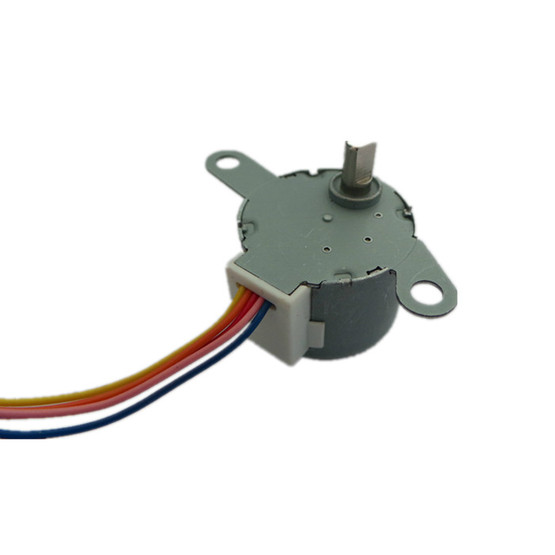

24 V PM stepper motors 28mm frame size / nema stepping motor

Basic Info

Model No.: 24 V PM stepper motors 28mm frame size / nema stepping motor

Product Description

Certification:	TS-16949/RoHS/ISO14001
Model Number:	28BYZ

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 9.50-12.50 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

2-phase windings with 15° in step angle.
Being facilitated with a captive or non-captive linear shaft, the motor journey ranges from 12mm to 98mm.
Our PM stepper motor internally converts rotary linear motion via a rotating nut and a leadscrew. This construction will eliminate the need for other rotary-to-linear conversions such as belts and pulleys, rack and pinions, or external ball screws.
Simple motion designs, lower production cost and enhanced product life.

Applications:

Our 28mm PM stepper motors, with captive or non-captive shaft, can meet your requirements in different applications such as pumps, robotics and heat supply facilities as well as valve actuators. Also they are often seen in the applications covering coffee grinding machines, telecommunication equipment and curtain machines.

Specifications:

Model	Step Angle (°)	No. of Phase	Voltage (VAC)	Current (A)	Resistance (Ω)	Inductance (mH)	Step Avail (mm)	Push Torque (N/HZ)	Journey (mm)
28BYZ-A01	15	2	24	0.16	150	85	0.0417	65/100	12
28BYZ-A02	15	2	24	1	24	85	0.0417	90/100	12
28BYZ-A04	15	2	24	0.24	100	44	0.0417	50/100	37
28BYZ-A05	15	2	24	0.16	150	85	0.0417	65/100	12
28BYZ-A07	15	2	24	0.16	150	85	0.0417	65/100	12
28BYZ-01	15	2	12	0.133	90	47.6	0.0417	22/100	98
28BYZ-05	15	4	5	0.14	35		0.0417	4.9/100	98

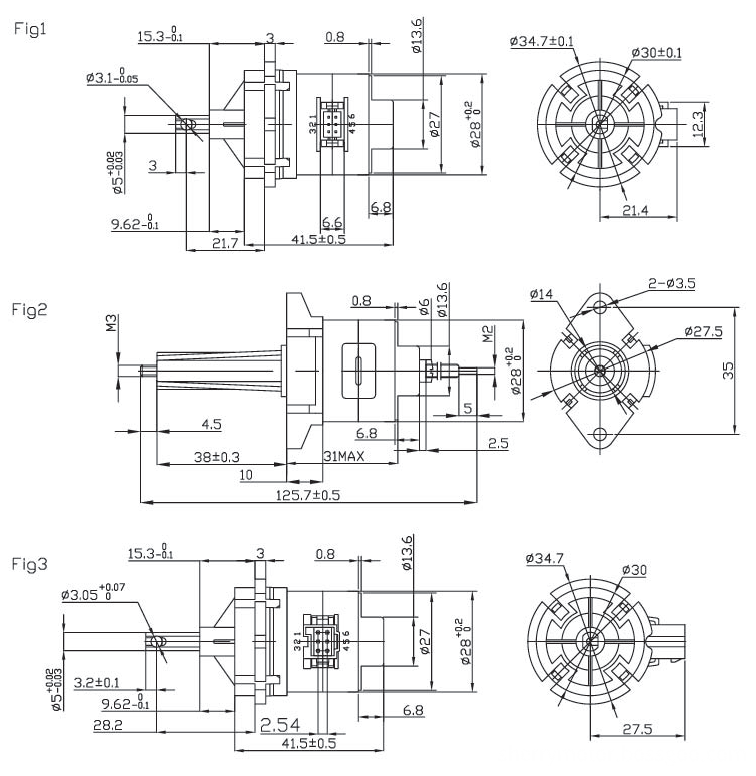

Dimensions:

(Unit=mm)

24v Pm Stepper Motor 28mm Frame Size Stepper Step Angle 15 High Resistance
