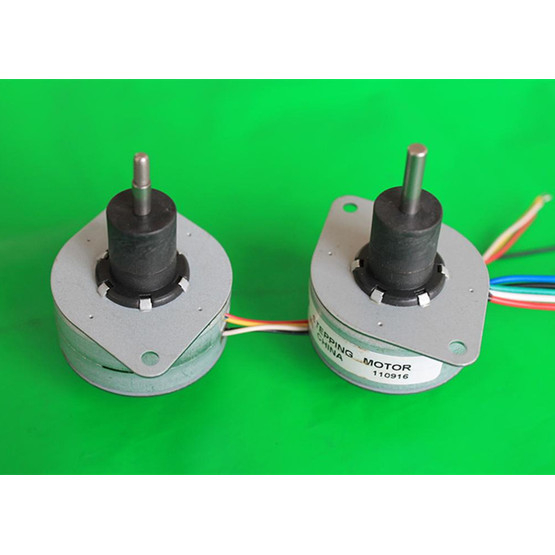

35mm PM Stepper Motor with Captive Shaft

Basic Info


Model No.: 35BYZ-A linear pm stepper motor/ step 7.5° resistance 11Ω, 2-phase windings


Product Description

Produce Code: 35mm PM Stepper Motor with Captive Shaft



35BYZ-A linear pm stepper motor/ step 7.5° resistance 11Ω, 2-phase windings



Features:

Being revised from our basic products lines of PM stepper motors with a frame size of 35mm, the captive linear PM stepper motors combine screwlead technology, nut technology and motor technology to achieve proportional linear movement. Inside the body of PM stepper motor, it lies in a rotating nut and a leadscrew to convert rotary linear motion.



Then the mechanical package of screwlead and nut seems the most important one in workmanships among the rest of motor components. The applications engineers prefer to use our captive linear PM stepper motors for their target application because of the compact size as well as a good torque output.



Our standard motor specifications read as follows: 24VDC for the rated voltage, 2-phase windings, 7.5°±7% for the step angle and IP30 for working safety. Custom designs are available to meet your OEM applications.



Applications:

The involvement shall cover medical diagnostics, inspection and security devices, pump flow control and metal fabrication.





Specification:

Model

Step Angle

(°)

No. of Phase

Voltage

(VDC)

Current

(A)

Resistance

(Ω)

Inductance

(mH)

Step Avail

(mm)

Pull Torque

(N.m)

Journey

(mm)

35YC25Z-A02

7.5

2

12

0.6

11

8.2

0.0254

100

5.3

35BYZ25Z-B01F

7.5

4

5

0.46

11

/

0.0254

40

75
