35mm PM Stepper Motor with Non-captive Shaft

Basic Info


Model No.: 35BYZ-B linear pm stepper motor/ 35mm simple design motor for medical equipment


Product Description

Product Code: 35mm PM Stepper Motor with Non-captive Shaft



35BYZ-B linear pm stepper motor/ 35mm simple design motor for medical equipment



Features:

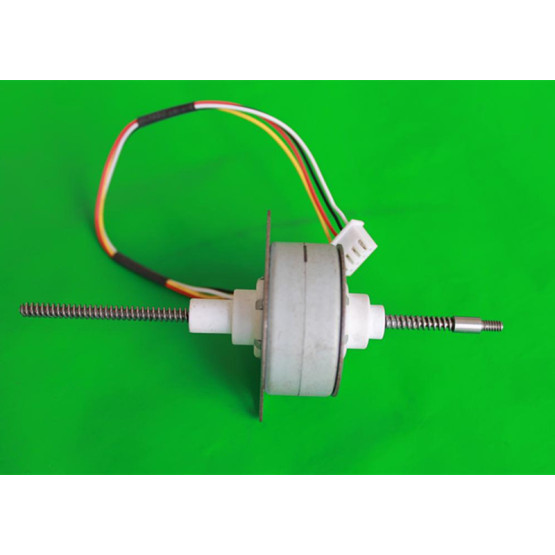

Being measured at 35mm in diameter, our PM stepper motors exhibit the traditional advantage of low cost construction because of their extremely high-volume and simple design. In the picture, you see that our PM stepper motor has been updated in motion control by installing a non-captive shaft, which actually is of a compact package of the screwlead and the nut.



This layout of integrated leadscrew and nut has made the journey longer than the captive one. The leadscrew is made from the stainless steel of 1Cr18Ni9Ti and the nut is made from POM. As one of the most important motor components, this package of linear motion mechanism has eliminated the need for other conversions such as belts and pulleys, rack and pinions, or external ball screws.



With a configuration of both 24VDC and 2-phase windings, our 35mm linear non-captive PM stepper motors can be customized to perfectly match your voltage, current and maximum operating speed.



Applications:

The end consumers would like to use them to fit the applications such as the medical equipment, constant spacing conveyors, Cut to Length and material filling machines.



Specification

Model

Step Angle

(°)

No. of Phase

Voltage

(VDC)

Current

(A)

Resistance

(Ω)

Inductance

(mH)

Step Avail

(mm)

Pull Torque

(N.m)

Journey

(mm)

35YC25Z-A02

7.5

2

12

0.6

11

8.2

0.0254

100

5.3

35BYZ25Z-B01F

7.5

4

5

0.46

11

/

0.0254

40

75
