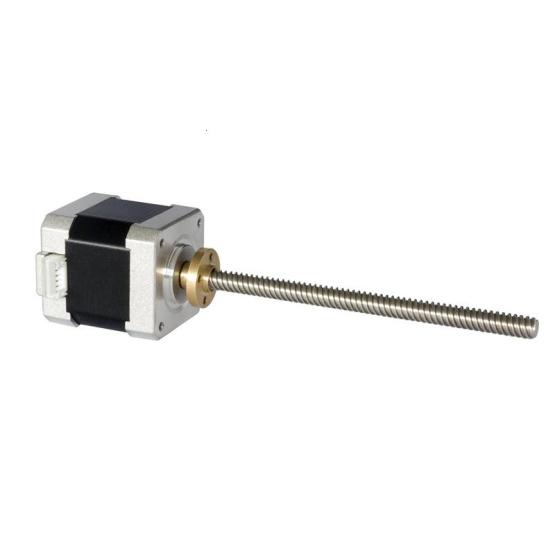

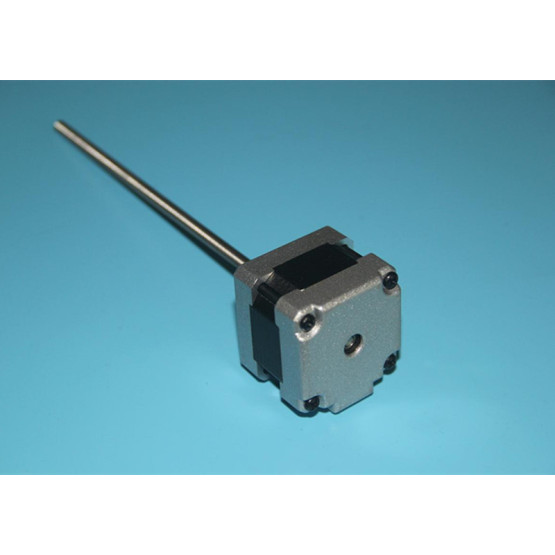

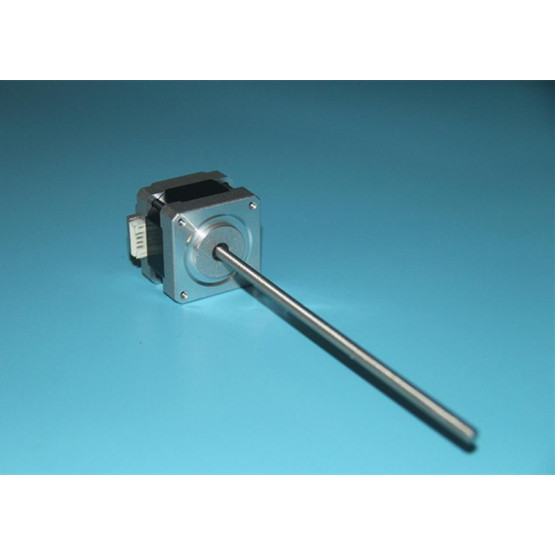

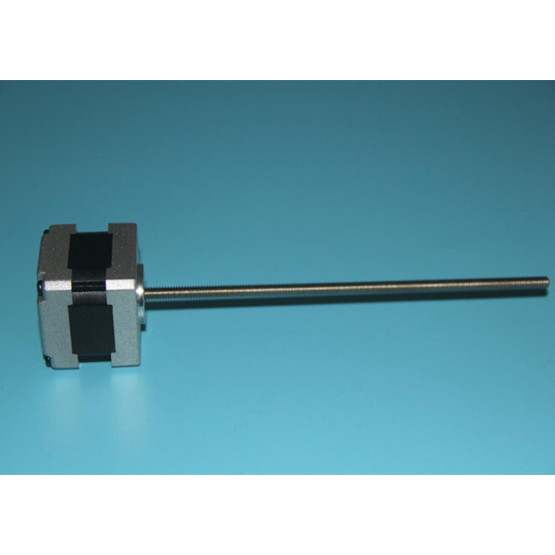

42BYGHL Hybrid Stepper Motor
Basic Info
Model No.: 42BYGHL Hybrid Stepper Motor
Product Description
Features：
1. Simple structure, light weight and small size.
2. The use of computer control improves the positioning accuracy of the entire system.
3. Magnetic levitation support of mover keeps a certain gap between the mover and the stator to eliminate friction, so the system features quick reaction, high sensitivity and good follow-up.
4. Safe and reliable operation, long service life and less failure.
General Description
Step Angle Error………………………………………±5%
Peak Temperature Rise………………………………………80℃ Max
AmbientTemperatureRange………………………………-20℃~+50℃
Insulation Resistance………………………………100MΩMin.500VC DC
Dielectric Strength……………………………………500V AC for 1 minute
Specifications
|
Model |
Step Width mm/step |
Motor Length L(mm) |
Phase Voltage (V) |
Phase Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (kg.cm) |
Lead Wire (NO.) |
Detent Torque (kg.cm) |
Rotor Inertia (kg.cm²) |
Weight (kg) |
|
42BYGH L240 |
0.01 |
34 |
5.4 |
0.8 |
6.7 |
9.5 |
2.5 |
4 |
0.2 |
0.034 |
0.2 |
|
42BYGH L602 |
0.02 |
40 |
12 |
0.4 |
26 |
23 |
3 |
6 |
0.22 |
0.054 |
0.26 |
|
42BYGH L801 |
0.04 |
48 |
12 |
0.4 |
30 |
22 |
3.8 |
6 |
0.28 |
0.068 |
0.36 |
* The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

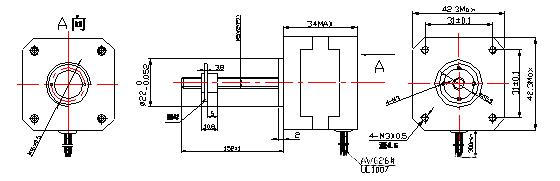

Outline Dimensions:
(Unit=mm)

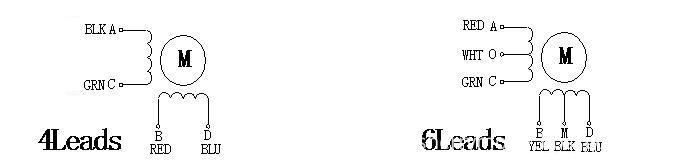

Wiring Diagram:
