BYGL 39mm Hybrid Stepper Motor from China

Location: Home >Linear Stepper Motor > BYGL 39mm Hybrid Stepper Motor

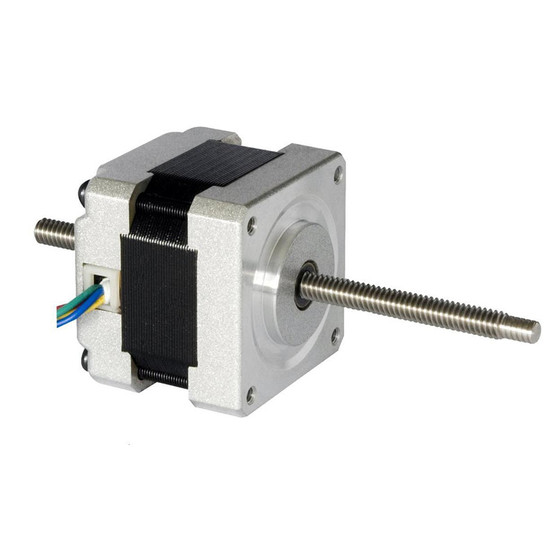

BYGL 39mm Hybrid Stepper Motor

Contact Now

Basic Info

Model No.: BYGL 39mm Hybrid Stepper Motor

Product Description

General Description：

Step Angle Error………………………………………±5%

Peak Temperature Rise…………………………………………80℃ Max

AmbientTemperatureRange…………………………………-20℃~+50℃

Insulation Resistance……………………………………100MΩMin.500VC DC

Dielectric Strength………………………………………………500V AC 1S

Model

Step Width

mm/step

Motor Length

L(mm)

Phase Voltage

(V)

Phase Current

(A)

Phase Resistance

(Ω)

Phase Inductance

(mH)

Holding Torque

(N.m)

Lead Wire

(NO.)

Detent Torque (kg.cm)

Rotor Inertia

(kg.cm²)

Weight

(kg)

39BYGL

215A

0.01

34

12

0.4

30

42

0.21

4

0.12

0.02

0.18

Technical Specifications:

* The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

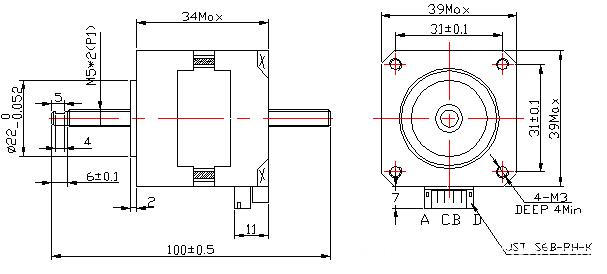

Outline Dimensions：

Wiring Diagram:

39mm Hybrid Stepper Motor 0.01mm Step Width Linear Stepper Motor 34mm Length
