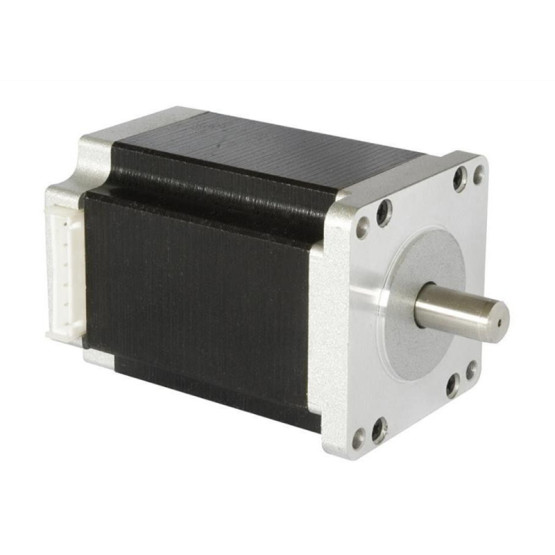

60mm heavy duty stepper motor die-cast endbells/2-phase stepper motor

Basic Info


Model No.: 60mm heavy duty stepper motor die-cast endbells/2-phase stepper motor


Product Description



Certification:

TS-16949/RoHS/ISO14001

Model Number:

60BYGH

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:

USD 17.50-23.50 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T,

Supply Ability:

50,000pcs/month



Features:

  1. Being named after the outer square length at 60mm, our hybrid stepping motors will also fit some specific applications even though they are not of any NEMA frame sizes.
  2. The hybrid stepping motor is having a full step angle of 1.8 degrees by allowing an accuracy of +/-5% per step and this error can be non-cumulative from one step to the next.
  3. Currently the motor body is constructed in size of either 57mm or 87mm. Various holding torques ranging from 1N.m to 2.3N.m can be produced throughed different winding configurations,
  4. Low current, low phase resistance.
  5. A JST namebrand female connector is installed to simplify the connection by and between the motor itself and the driver or power supply..
  6. Our 60mm BYGH series of stepping motors can also be supplied with the corresponding mating plug assembly and screened cables to maintain the high EMC performance.

Applications:
   Because of their low cost, high reliability, high torque at low speed and a simple, rugged construction, the Hybrid stepper motors are widely used to the fine positioning industries of electric power supply, mining and petroleum as well as metallurgical.



Specifications:



Model

Step Angle (°)

Motor Length (mm)

Rated Voltage (V)

Rated Current (A)

Phase Resistance  (Ω)

Phase Inductance  (mH)

Holding Torque (N.m)

Lead Wire  (NO.)

Rotor Inertia (g.cm2)

Detent Torque

(Kg.cm)

60BYGH402A-XX

1.8

57

2.4

3

0.8

1.6

1

6

300

0.6

60BYGH403A-XX

1.8

57

3.9

3

1.3

4.3

1.4

4

300

0.6

60BYGH408A-XX

1.8

57

4

2

2

3.5

1.2

6

300

0.6

60BYGH801A

1.8

87

5.6

2

2.8

6

1.8

6

840

1.1

60BYGH805A

1.8

87

2.8

4

0.7

3.5

2.3

4

840

1.1

60BYGH806A

1.8

87

4.2

3

1.4

4.3

2

6

840

1.1





Model

Step Angle

 ( °)

Motor Length

L(mm)

Phase Voltage

 (V)

Phase Current

 (A)

Phase Resistance

 (Ω)

Phase Inductance

 (mH)

Holding Torque

 (N.m)

Lead Wire

 (NO.)

Rotor Inertia

(g.cm)

Detent Torque

(Kg.cm)

Weight

 (kg)

60BYGH

402A

1.8

57

2.4

3

0.8

1.6

1

6

300

0.6

0.77

60BYGH

403A

1.8

57

3.9

3

1.3

4.3

1.4

4

300

0.6

0.77

60BYGH

408A

1.8

57

4

2

2

3.5

1.2

6

300

0.6

0.77

60BYGH

801A

1.8

87

5.6

2

2.8

6

1.8

6

840

1.1

1.34

60BYGH

805A

1.8

87

2.8

4

0.7

3.5

2.3

4

840

1.1

1.34

60BYGH

806A

1.8

87

4.2

3

1.4

4.3

2.0

6

840

1.1

1.34



















Technical Specifications:

* The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

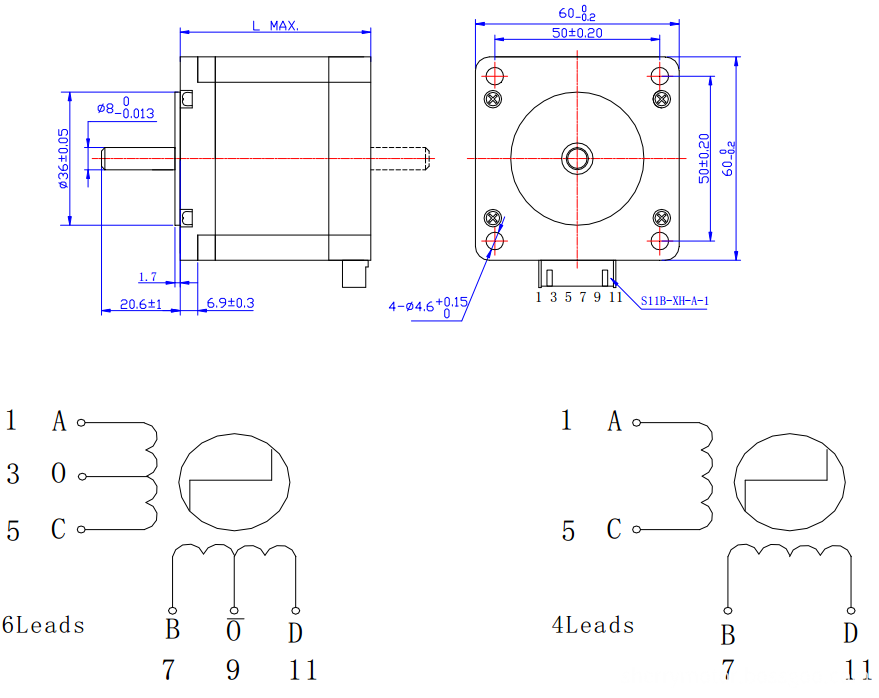

Dimensions:

(Unit=mm)


60mm heavy duty stepper motor die-cast endbells/2-phase stepper motor


Torque-frequency Characteristics

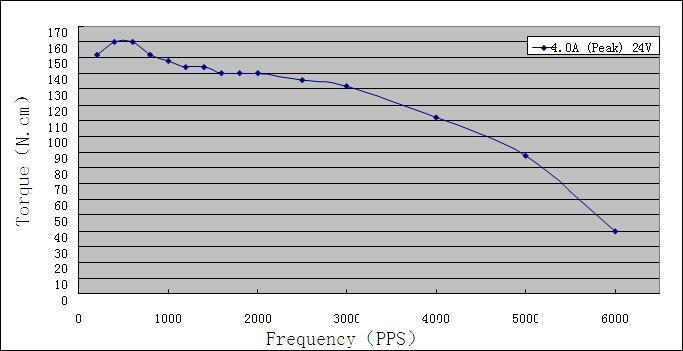

Motor Type:60BYGH805-01

Driver Type:SD-2H044MA

Driver Mode:4 subdivision


Torque-frequency Characteristics

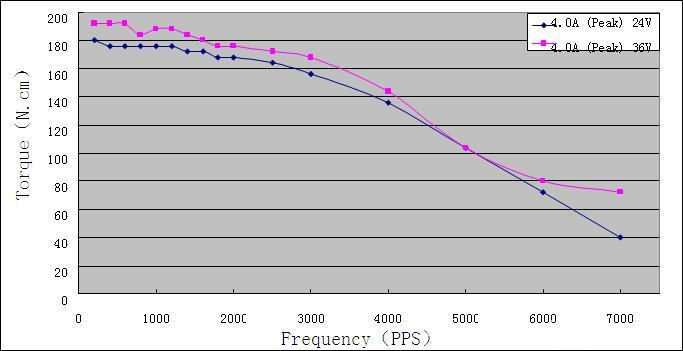

Motor Type:60BYGH806A

Driver Type:SD-2H044MA

Driver Mode:4 subdivision

Torque-frequency Characteristics
