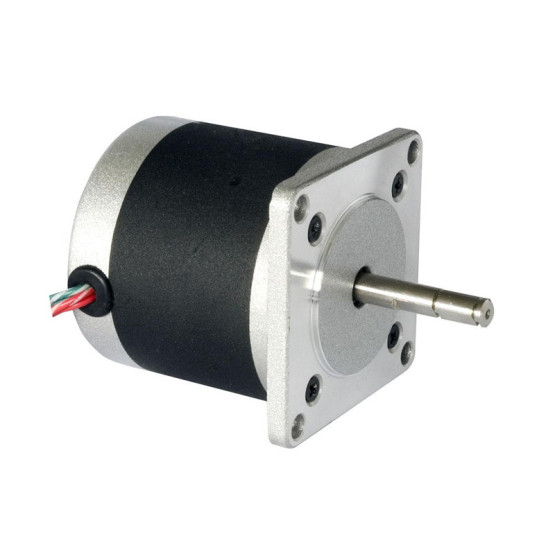

8 leads nema 23 stepper motors / uni polar bipolar stepper motors

Basic Info


Model No.: 8 leads nema 23 stepper motors / uni polar bipolar stepper motors


Product Description



Certification:

TS-16949/RoHS/ISO14001

Model Number:

57BYG

Payment & Shipping Terms:

Minimum Order Quantity:

2000pcs

Price:

USD 13.00-15.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

50,000pcs/month



General Introduction:

As one of the basic product lines from our products catalogue, 57BYG series of hybrid stepper motors have a long history of more than 30 years. It has become one of our fundamental products, which has won a remarkable reputation throughout both domestic and overseas markets.



The 2-phase hybrid stepper motor rotates 1.8 degree per step. This means 200 steps are needed to complete one revolution. Currently the motor body lengths cover 5 different sized, including 41mm, 51mm, 57mm, 76mm and 100mm. The frame size is internationally called NEMA 23.



The motor varies from 3.0kg.cm to 12.5kg.cm in holding torques. Choices of holding torques will be decided by the design engineers during model selection. What’s more, 8 leads for unipolar or bipolar operation as well as single or double shaft extension or even non-standard customized versions are available for special orders.



Features:

  1. One of the basic lines of motor products in our motor catalogues throughout several versions.
  2. NEMA Size 23 frame size to have won remarkable reputations among both domestic and overseas customers.
  3. 2-phase windings with a step angle of 1.8 degrees and 200 steps per revolution.
  4. The motor body length is flexible covering different 5 lengths like 41mm, 51mm, 57mm, 76mm and 100mm to ease your headache of constraints on inner space inside the applications.
  5. The holding torques varying from 3kg.cm to 12.5kg.cm will be well evaluated by your design engineers before a final decision on motor performance is made.

Applications:
   Hybrid stepper motors are used in a wide variety of industrial and scientific applications including robotics, machine tools, automated wire cutting& bonding machines and even precise fluid control devices.



Specifications:


Model

Step Angle °

Motor Length L(mm)

Phase Voltage (V)

Phase Current

(A)

Phase Resistance (Ω)

Phase Inductance (mH)

Holding Torque (kg.cm)

Lead Wire

(No.)

Rotor Inertia (g.cm²)

Detent Torque

(Kg.cm)

Weight

(kg)

57BYG001-02

1.8

41

12.2

0.38

32

30

3.0

6

57

0.18

0.54

57BYG003-01

1.8

41

12

0.6

20

18

3.3

6

57

0.18

0.54

57BYG006-01

1.8

41

3.96

1.1

3.6

3.5

3.0

8

57

0.18

0.54

57BYG202-04

1.8

51

12.2

0.38

32

30

3.5

6

110

0.18

0.54

57BYG220

1.8

51

3.3

1.5

2.2

8.5

5.8

4

110

0.35

0.6

57BYG241

1.8

51

1.68

3

0.56

1.8

6.0

4

110

0.35

0.6

57BYG402

1.8

57

12

0.6

20

27

5.8

6

135

0.35

0.6

57BYG410

1.8

57

2.4

2.4

1.0

2.0

6.0

6

135

0.42

0.65

57BYG424

1.8

57

3.2

1

3.2

5.5

4.5

4

135

0.42

0.65

57BYG601-01

1.8

76

12

0.6

20

25

9.0

6

200

0.42

0.65

57BYG606

1.8

76

5.4

1.5

3.6

6.2

8.8

6

200

0.72

0.95

57BYG621

1.8

76

3.96

2.2

1.8

6.0

12.5

4

200

0.72

0.95

57BYG100-001

1.8

100

2.1

2

1.1

4.5

12

4

300

0.95

1.25

*The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

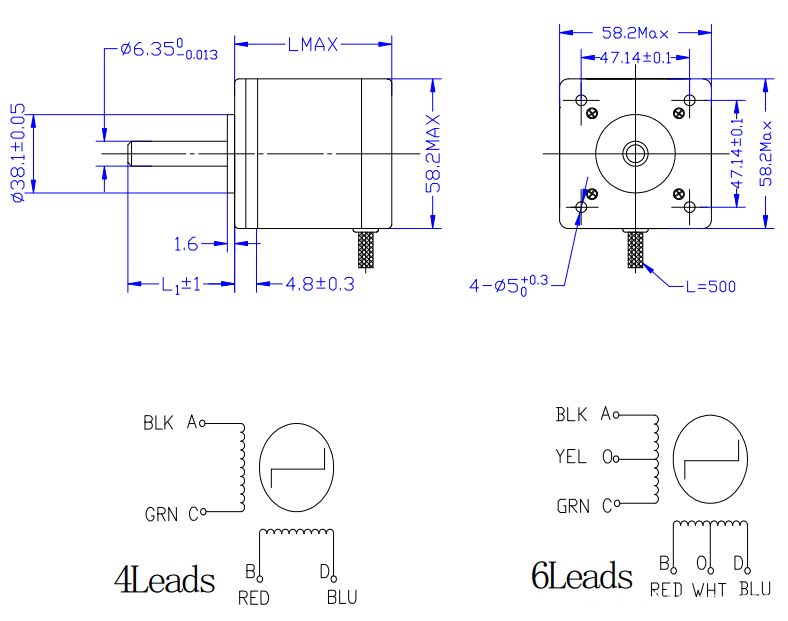

Dimensions:

(Unit=mm)

8 leads nema 23 stepper motors / uni polar bipolar stepper motors

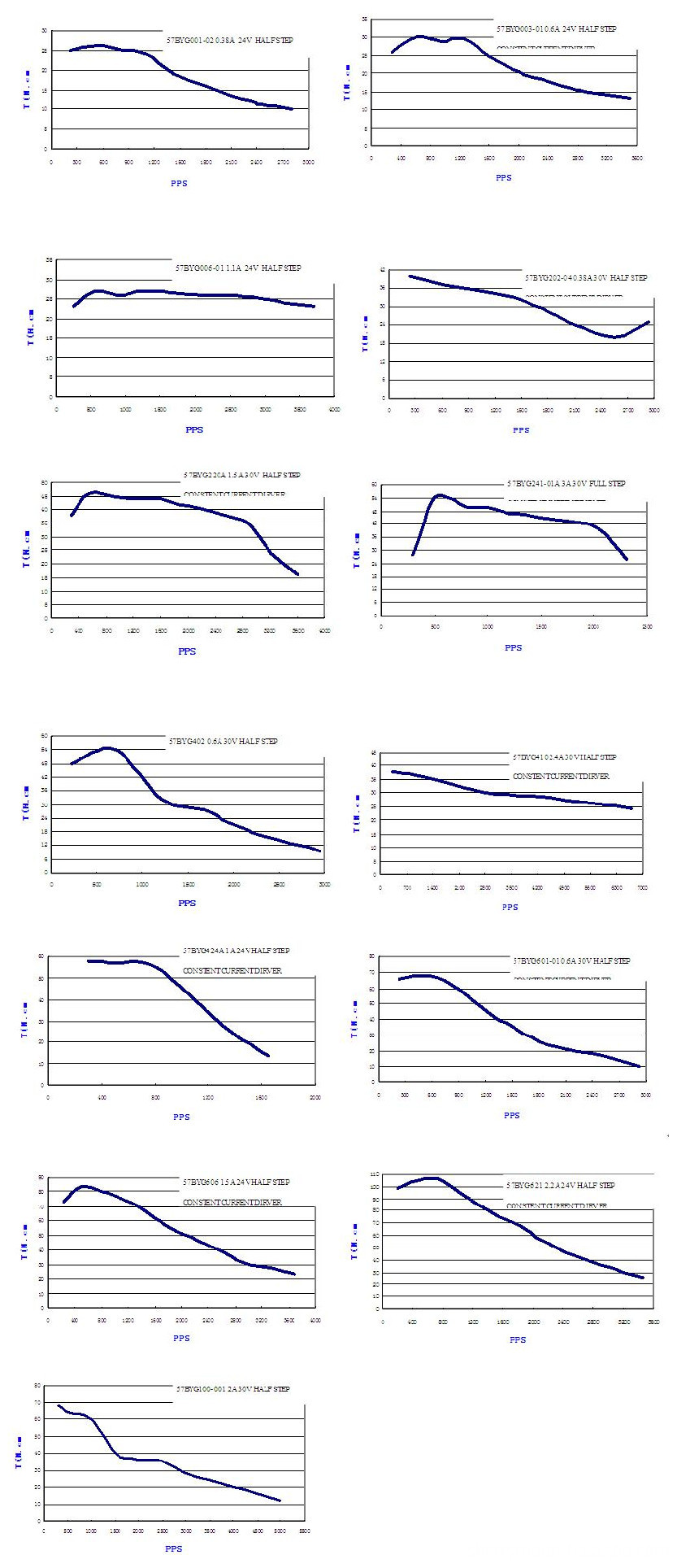

Torque-frequency Characteristics
