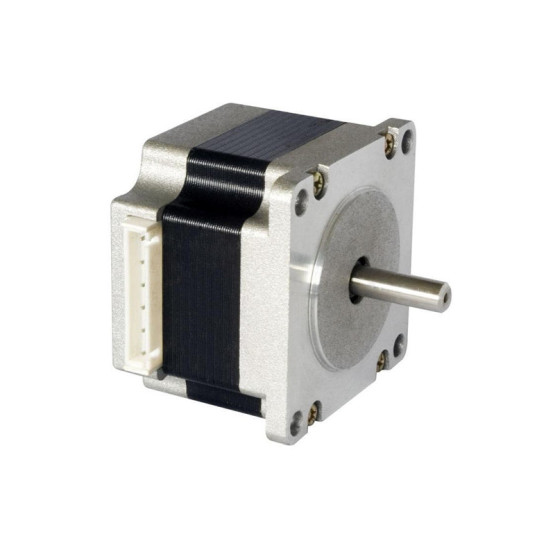

Nema 23 stepper motors / 2 phase or 4 phase stepper motor with JST connector

Basic Info


Model No.: Nema 23 stepper motors / 2 phase or 4 phase stepper motor with JST connector


Product Description

Features:

  1. Our Hybrid stepper motor rotates at the step angle of 1.8 degrees with a full and high holding torque.
  2. The holding torque can reach as much as 25kg.cm with a motor body length flexible from 41mm to 115mm.
  3. No contact brushes are installed into our Hybrid stepper motors while NMB namebrand ball bearings will help the motors with the performance improvement as well as the extension of life-cycle.
  4. Brings together the best of both VR stepper motors and PM ones to formulate a construction with multi-toothed stator poles and a permanent magnet rotor.
  5. Our Hybrid stepper motors are accompanied by JST namebrand female connectors to succeed with a further assembly with your final applications.

Applications:
   Our NEMA Size 23 Hybrid stepper motors are very popular among application engineers of computer disk drives, CD players, pick and place machines and embroidery machines.



Specifications:

Model

Motor Length L(mm)

Phase Voltage  (V)

Phase Current

(A)

Phase Resistance  (Ω)

Phase Inductance  (mH)

Holding Torque (kg.cm)

Lead Wire  (NO.)

Rotor Inertia  (g.c)

Detent Torque  (g.cm)

Weight (kg)

57BYGH001

41

6

0.5

12

20

4

4

120

0.21

0.45

57BYGH013

41

2.7

1.5

1.8

4

4

4

120

0.21

0.45

57BYGH201

51

7.2

0.6

12

25

7

4

275

0.36

0.65

57BYGH206

51

6.6

1

6.6

8.2

7.2

6

275

0.36

0.65

57BYGH218

51

2.6

2

1.3

4

9

4

275

0.36

0.65

57BYGH436

56

2.4

3.0

0.8

1.4

9

6

300

0.4

0.7

57BYGH420

56

3.6

2

1.8

2.5

9

6

300

0.4

0.7

57BYGH502

67

3.4

2

1.7

3

10

6

360

0.5

0.82

57BYGH506

67

2.4

3

0.77

1

9

6

360

0.5

0.82

57BYGH603

78

8.6

1

8.6

18

14.5

6

480

0.68

1

57BYGH633

78

3

3

1

1.6

13.5

6

480

0.68

1

57BYGH800

84

7.5

1.5

5

10

16

8

530

0.65

1.13

57BYGH115-003

115

6.3

3

2.1

9

25

4

810

0.89

1.55

57BYGH115-007

115

4.2

4.2

1

2.3

19.5

8

810

0.89

1.55
























*The aboved are just representative products. Derivative products can be produced according to customer’s requirem

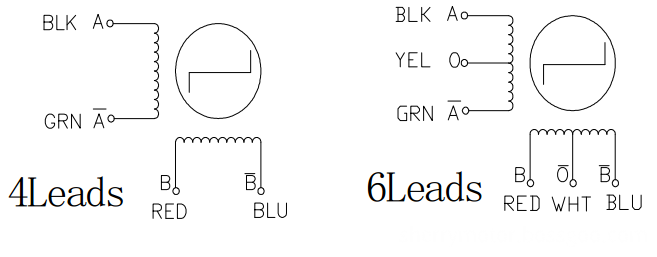

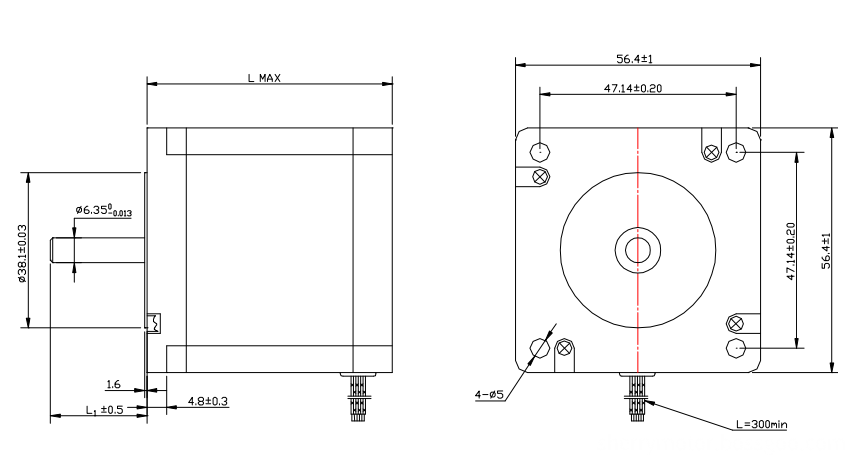

Dimensions:

(Unit=mm)


Nema 23 stepper motors / 2 phase or 4 phase stepper motor with JST connector
