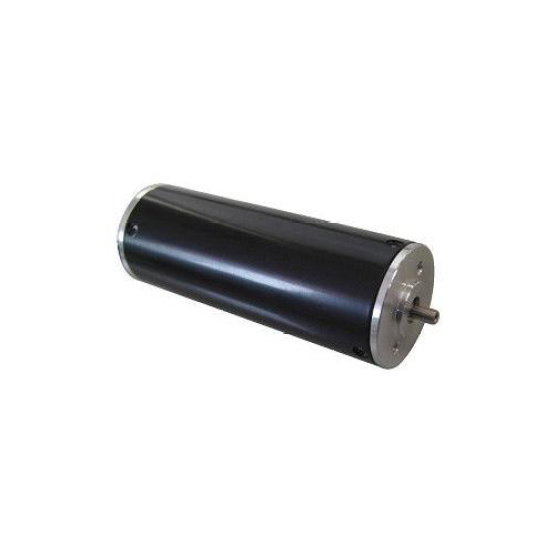

Customized circuit board dc brushless motor 28mm with SKF or NMB ball bearings/ 28BL brushless motor

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Delivery Time: 45 Days

Basic Info


Model No.: Customized circuit board dc brushless motor 28mm with SKF or NMB ball bearings/ 28BL brushless motor

Application: Power Tools, Car, Household Appliances, Industrial

Operating Speed: High Speed

Number of Poles: 4

Certification: ISO9001, CCC


Additional Info


Transportation: Ocean,Air

Port: Shanghai,Ningbo,Tianjing


Product Description

customized circuit board dc brushless motor 28mm with SKF or NMB ball bearings/ 28BL brushless motor

28BL brushless dc motor/ 28mm hall sensor motors customized circuit board





Certification:

TS-16949/RoHS/ISO14001

Model Number:

28BL

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:



Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

10,000pcs/month





The 28BL brushless motor is so named because it has a frame size of 28mm. It’s a customized circuit board dc brushless motor with SKF or NMB bearing. This series is designed with 4 poles and 3 phases. Its rated speed is 3000rpm.



Features:

1.     28mm series of brushless DC motors is constructed in a configuration of both 4-pole and 3-phase.

2.     Using an existing steel pipe in diameter of 28mm as the housing, the motor body length will be flexible from 41mm to 78mm.

3.     Supports the application speeds up to 3000rpm while providing long and reliable performance.

4.     In a small size for 12VDC or 24VDC working voltage while a lower torque is sufficient for the applications.

5.     SKF or NMB ball bearings, hall sensors, customized circuit board and etc. safeguards a consist quality of our BLDC motors.

6.     Aluminium alloyed die cast end caps and extended shaft can be optimized for your final applications.

Applications:

This series of brushless DC motors is widely utilized in precision instruments, medical facilities, and textile machinery.




Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No. of Pole

No. of Phase

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

Back EMS (V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length (L)

28BL01

12

≤0.9

3000

4

3

0.015

0.045

2.7

0.035

3.37

1.5

40.5

28BL02

24

≤1.0

3000

4

3

0.03

0.09

3.0

0.058

6.1

2.5

53

28BL03

24

≤1.5

3000

4

3

0.05

0.15

4.5

0.057

6.1

6

78

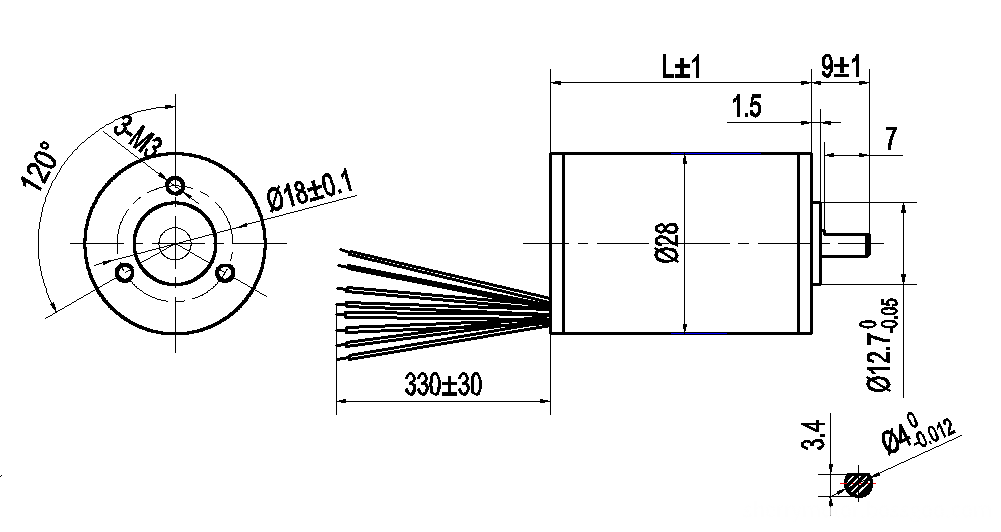

Dimensions:

(Unit=mm)



Dimensions
