Water pumps high speed brushless dc motors copper windings Hall sensors

Payment Type: T/T
Incoterm: FOB,CIF
Delivery Time: 45 Days

Basic Info


Model No.: Water pumps high speed brushless dc motors copper windings Hall sensors

Application: Power Tools, Car, Household Appliances, Industrial, Universal

Certification: ISO9001, CCC

Operating Speed: High Speed

Excitation Mode: Compound

Function: Control

Casing Protection: Protection Type

Number of Poles: 4

Structure and Working Principle: Brushless


Additional Info


Packaging: Cartons/ Pallets

Transportation: Ocean,Air

Port: Shanghai


Product Description

Water pumps high speed brushless dc motors copper windings Hall sensors

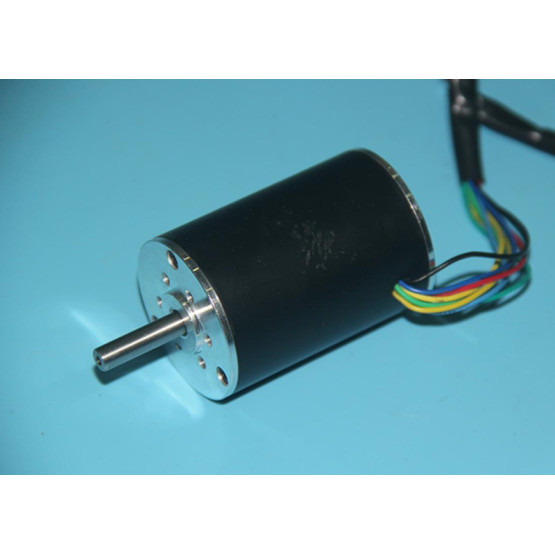

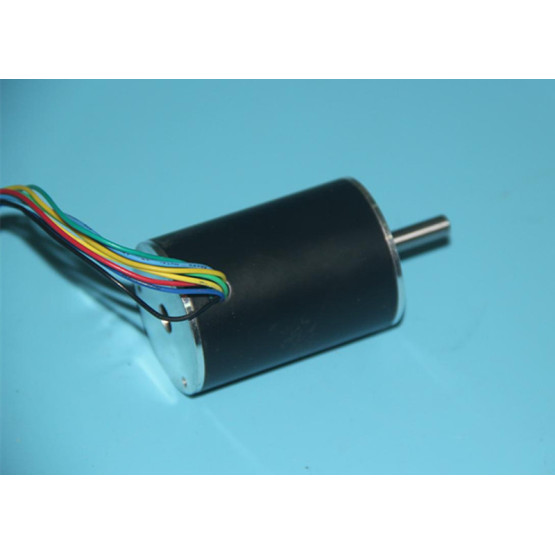

33mm BLDC motors with rare earth magnets Hall sensors for water pumps



Certification:

TS-16949/RoHS/ISO14001

Model Number:

33BL

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 15.90-18.90 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

10,000pcs/month



Features

  1. Typically, this series of BLDC motors is constructed with wye windings, which allow a basic configuration of 3-phase and 4-pole.
  2. Both the front end cap and the housing are zinc die cast into an integral whole to greatly eliminate the involvement of manual laboring while an economic design is assured.
  3. Low voltage, low current, high speed up to 4600rpm and low rotor inertia are for a wide range of applications.
  4. The light weight less than 200g per unit makes the motor product more extensively applied to some of portable precision tools or instruments.
  5. Well-known name brand magnets, high-quality copper windings, hall sensors help a lot to improve the motor performance.

Applications:

Our brushless DC motors are perfect for applications such as feed drives for CNC machine tools, industrial robots, and water pumps.




Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

BackEMS(V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length (L)

33BL01

12

1

4580

0.025

0.090

6.18

0.0155

1.2

1.2

38

33BL02

24

1.7

5800

0.049

0.226

7.70

0.0311

3.2

1.9

51

33BL03

12

0.8

4000

0.025

0.090

6.18

0.1900

2.1

1.2

42.5

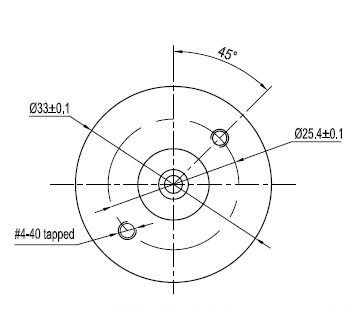

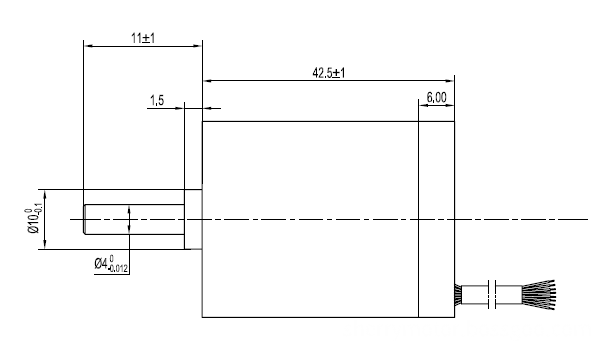

Dimensions:
(Unit=mm)
Dimension

Dimensions



Tag :
high speed brushless dc motor

high torque brushless dc motor


Application:

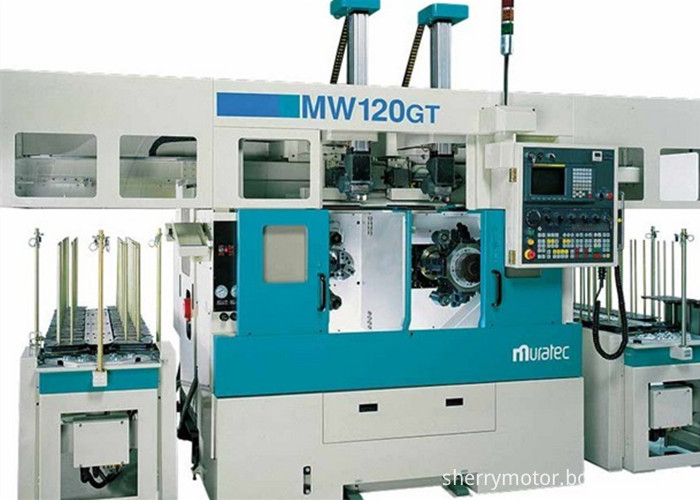

feed drives for CNC machine tools

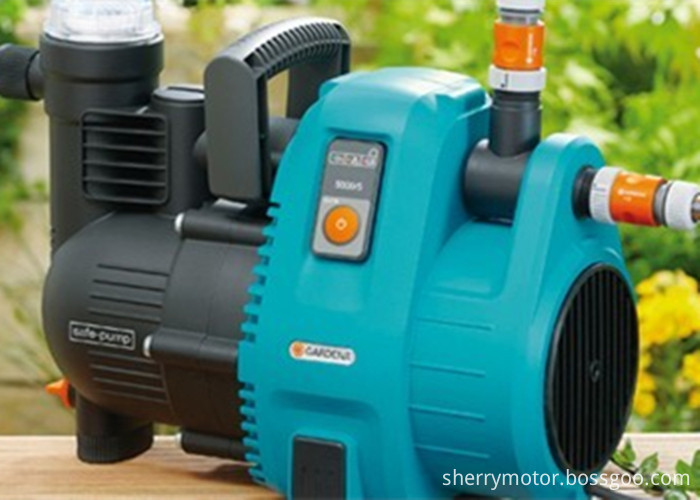

water pump
