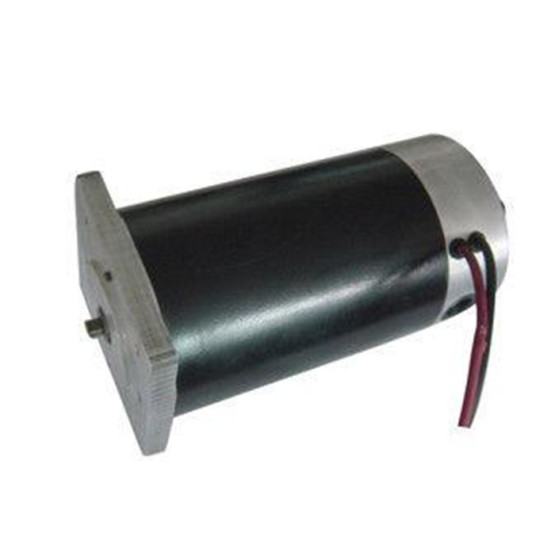

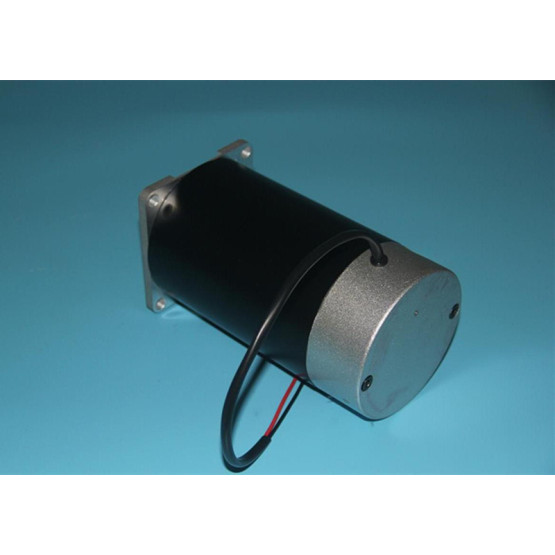

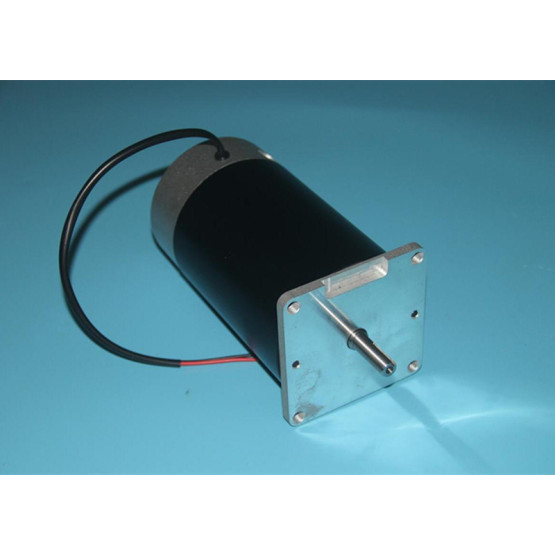

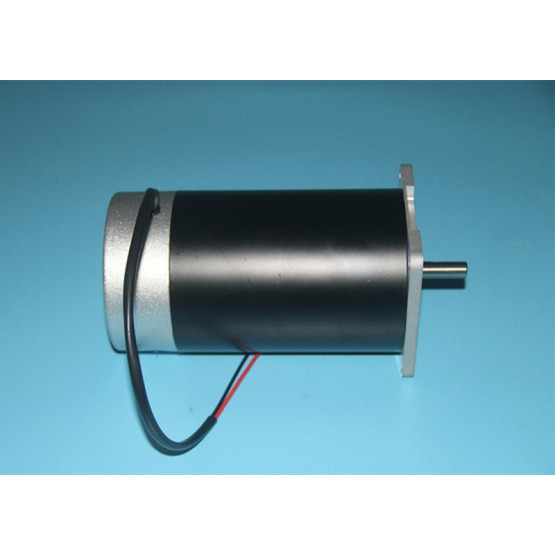

Door openers 110mm brushed DC motors aluminium die cast endcaps

Basic Info


Model No.: Door openers 110mm brushed DC motors aluminium die cast endcaps


Product Description


Certification:

TS-16949/RoHS/ISO14001

Model Number:

110ZYT

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

5,000pcs/month



Features:

  1. It has made the motor weight decreased a lot by having Aluminium die cast endcaps even if the motor diameter is as big as 110mm.
  2. The front endcap can be machine-turned by having more pilot designs as well as mounting hole patterns for a further assembly with the applications.
  3. The rugged, heavy-gauge steel housing is participated in the main materials for long-life and durability.
  4. The rated torque can be designed up to 1.7N.m and it sometimes will be reasonably modified by the design engineer to create a more suitable starting torque to fit any individual application.
  5. The cartridge brush assemblies have been installed into the rear endcap to allow the consumers to replace the brushes if any.
  6. Dynamically balanced armatures, sealed ball bearing and are earth magnets are necessarily to be there to maintain the high-efficiency of our brushed PMDC motors.

Applications:

They are widely applied to wheelchairs, golf carts, door openers and conveyors, to name a few.



Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (N.m)

Motor Body Length (mm)

110ZYT006

12

≤30

1500

≤3

1800

1.7

200

110ZYT0071

12

≤34.6

2708

≤4.9

3270

1.0

200

110YT0072

24

≤26

3072

≤2.6

3350

1.6

200

110ZYT0081

48

≤14.3

3304

≤2.5

3560

1.6

200

110ZYT0082

48

≤14.3

3304

≤2.5

3560

1.6

200

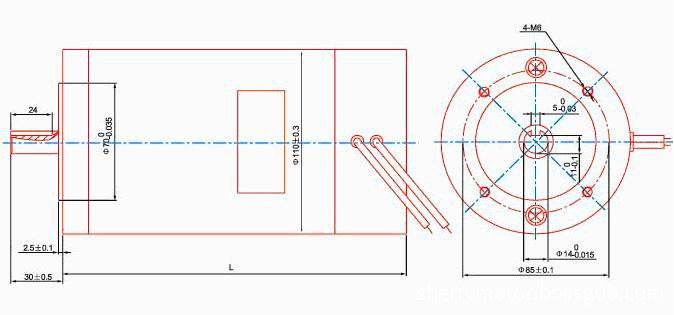

Dimensions:

(Unit=mm)


Dimension
