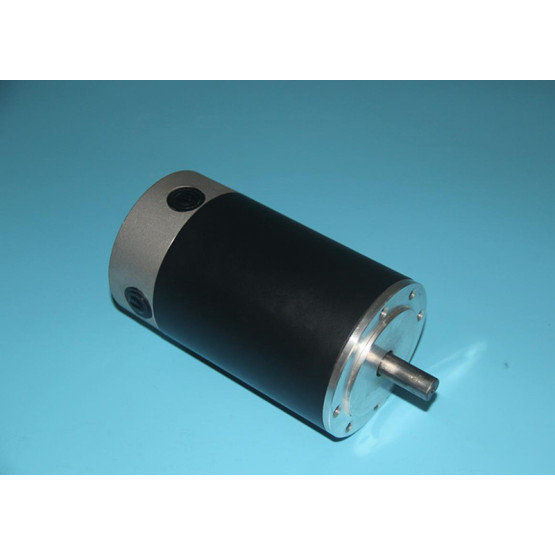

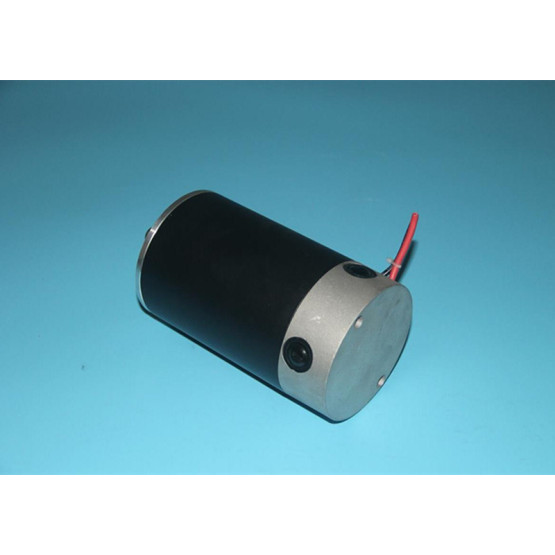

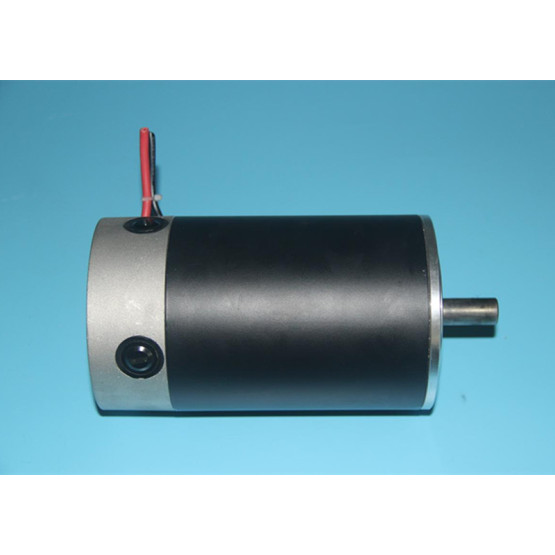

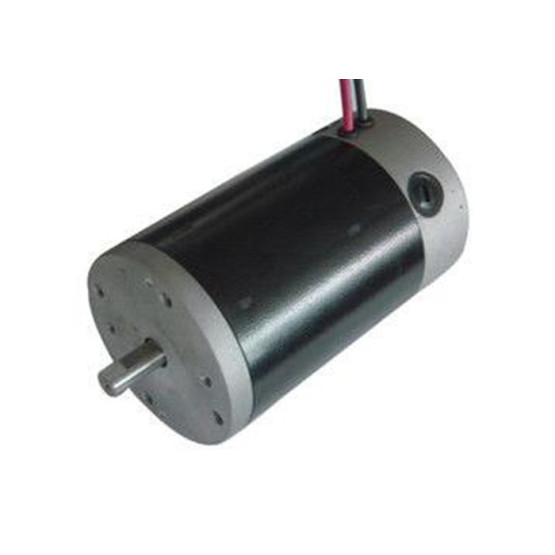

Low voltage 100mm brushed DC motors rugged for wheelchairs golf carts

Basic Info


Model No.: Low voltage 100mm brushed DC motors rugged for wheelchairs golf carts


Product Description

Certification:

TS-16949/RoHS/ISO14001

Model Number:

100ZYT

Payment & Shipping Terms:

Minimum Order Quantity:

100pcs

Price:

USD 55.00-65.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

9,000pcs/month





  1. The motor diameter is constructed at 100mm with flexible motor body lengths.
  2. SKF or NMB quality ball bearings play an important role in smooth and reliable operation.
  3. Well-known namebrands of Nd-Fe-B magnets also contribute a lot to the upgrading of output torque and the extension of life-cycle.
  4. Because of a nice linear speed-torque curve, our brushed DC motors particularly suit adjustable speed and servo control applications where the motor will operate at less than 5000rpm.
  5. Currently our brushed DC motors optionally run at either 12VDC or 24VDC and what’s more, the brushes can be manually replaced if any.
  6. Windings, extended shaft or layout of lead-wires can be OEM to meet your specific requirements.

Applications:

Our 100mm brushed DC motors are widely applied to wheelchairs, golf carts and conveyors.



Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (N.m)

Motor Body Length (mm)

100ZYT001

24

≤15.6

3454

≤2.3

3921

0.8

165

100ZYT002

24

≤20.3

4148

≤3.5

4660

0.8

165

100ZYT003

24

≤7.5

1450

≤1.2

1600

0.8

165

100ZYT004

24

≤10.5

2250

≤1.5

2350

0.8

165

100ZYT005

12

≤24.5

1500

≤3

1900

1.2

200

100ZYT006

24

≤24

3170

≤2.6

3700

1.5

145

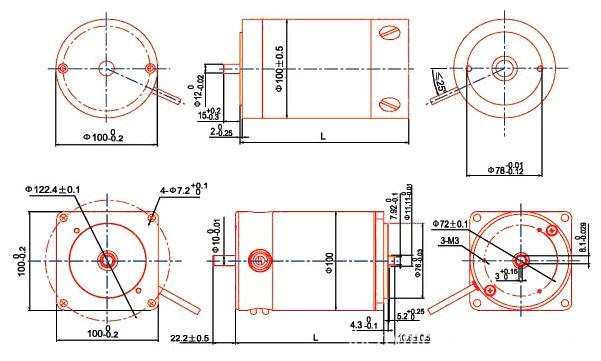

Dimensions:

(Unit=mm)


Dimension
