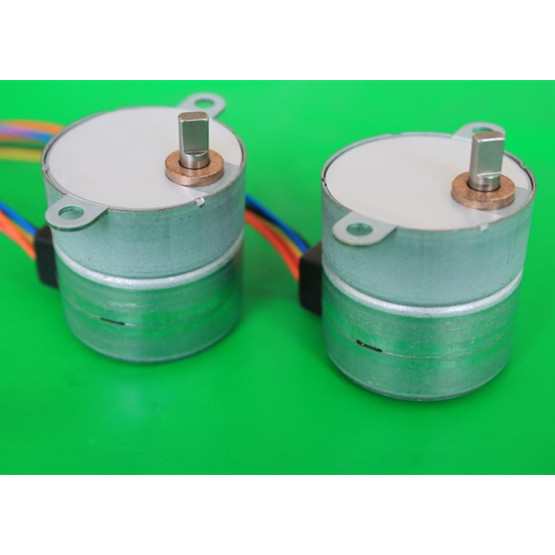

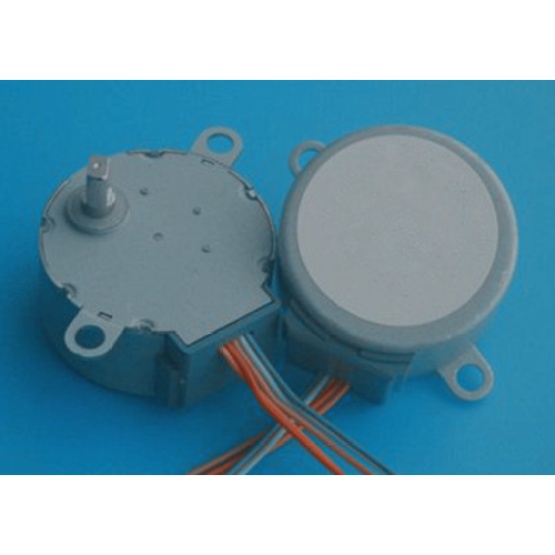

Permanent magnet stepper motor unipolar bipolar for programmable controllers

Basic Info


Model No.: Permanent magnet stepper motor unipolar bipolar for programmable controllers


Product Description



Certification:

TS-16949/RoHS/ISO14001

Model Number:

35BYHJ

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 12.90-15.90 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

45 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

50,000pcs/month





Features:

  1. Frame size 35mm in diameter and the speed ratio can be modified to fit your specific application if larger quantities are to be purchased.
  2. Our 35mm series PM stepper motors are not only compact in size but also they boast good torque characteristic.
  3. Being with 2 options in step angle, say, at 7.5°or 15°, the PM stepper motor has been assembled with a spur gearbox to better fit the fine positioning applications which require a lower speed but a higher holding torque.
  4. The spur gears normally are made from metals and hardly to be worn out.
  5. Currently our 35mm spur gear PM stepper motors have been uniform with 4-phase windings, but in various current ratings.

Applications:

Our PM stepping motors with spur gears, are popular in processing control systems, tape and disk drive systems and programmable controllers.



Specifications:

Model

Step Angle

 ( ° )

Voltage

(VDC)

Current

 (A)

Resistance

 (Ω)

Inductance

(mH)

Moderating

Ratio

No-load Pullout Frequency

(pps)

No-load Starting Frequency

(pps)

Pull-in Torque

(g.cm)

35BYHJ05

7.5/5

12

0.4

30

17

1/5

460

360

700(At 200pps)

35BYHJ06

7.5/6

12

0.4

30

17

1/6

460

360

800(At 200pps)

35BYHJ08

7.5/8.4

12

0.4

30

17

1/8.4

460

360

800(At 300pps)

35BYHJ10

7.5/10.8

24

0.24

100

110

1/10.8

520

420

3100(At 100pps)

35BYHJ19

7.5/19

12

0.4

30

17

1/19

460

360

2500(At 100pps)

35BYHJ30

7.5/30

12

0.4

30

17

1/30

460

360

2500(At 300pps)

35BYHJ60

7.5/60

12

0.4

30

17

1/60

460

360

3000(At 300pps)

35BYHJ120

7.5/120

12

0.4

30

17

1/120

460

360

8000(At 300pps)

35BYHJ150

7.5/150

24

0.48

50

26.3

1/150

580

480

9000(At 300pps)

35BYSJ16

7.5/16

12

0.23

52.5

23

1/16

570

470

1300(At 200pps)

35BYSJ19

7.5/19

24

0.13

185

92.6

1/19

530

430

1300(At 200pps)

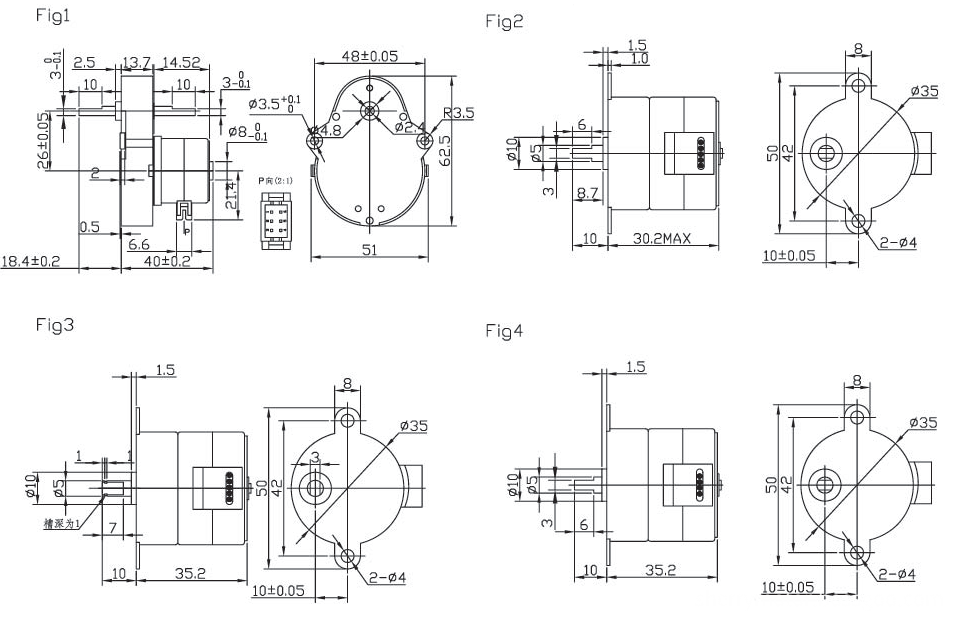

Dimensions:

(Unit=mm)


Permanent magnet stepper motor unipolar bipolar for programmable controllers
