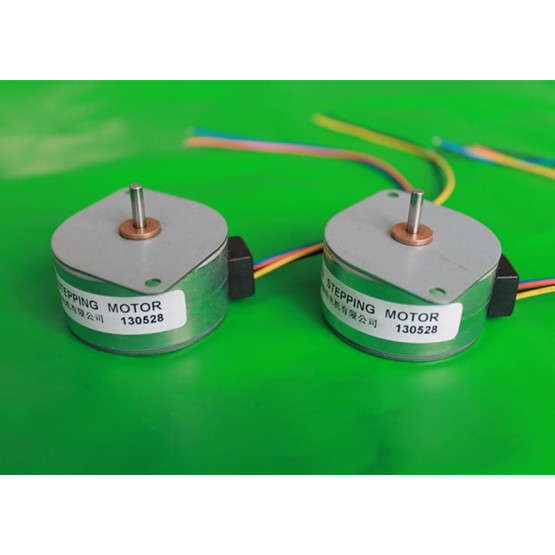

    NEMA 17 PM stepper motors 4 phase windings 7.5° 12v stepper motor

    Contact Now

    Basic Info


    Model No.: NEMA 17 PM stepper motors 4 phase windings 7.5° 12v stepper motor


    Product Description



    Certification:

    TS-16949/RoHS/ISO14001

    Model Number:

    42BY48L

    Payment & Shipping Terms:

    Minimum Order Quantity:

    1000pcs

    Price:

    USD 8.90-9.90 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    150,000pcs/month



    Features:

    1. Simple design, small size, but produces a reasonable detent torque.
    2. Dynamically balanced armature is more critical to achieve a fine positioning in motion control.
    3. Nd-Fe-B magnets will also be adopted to improve the motor performance.
    4. Our PM stepping motor provides a low-priced alternative to the same size Hybrid stepping motors in applications which requires closed loop system, less accuracy and less torque.
    5. More options in mounting configurations are offered upon request.

    Applications:

    At NEMA Size 17, our PM stepper motors are becoming increasingly popular in model airplanes or robots, waste disposal units and undersea oil pumps.



    Specifications:




    Model

    Step Angle

    (°)

    No. of Phase

    Voltage

    (V)

    Current

    (A)

    Resistance

    (Ω)

    Inductance

    (mH)

    Holding Torque

    (g.cm)

    Detent Torque

    (g.cm)

    Rotor Inertia

    (g.cm²)

    42BY48L01

    7.5

    4

    12

    0.18

    70

    47.8

    500

    125

    9.6

    42BY48L09

    7.5

    4

    9

    0.58

    15.5

    11.1

    800

    125

    7.5

    42BY48L013

    7.5

    4

    12

    0.2

    60

    50

    450

    125

    7.5

    42BY48H01

    7.5

    4

    12

    0.25

    48

    37

    550

    125

    9.6

    42BY48H07

    7.5

    4

    12

    0.142

    85



    750

    200

    9.6

    42BY48S01

    7.5

    4

    12

    0.3

    40

    20.5

    550

    100

    9.6

    42BY48S11

    7.5

    4

    12

    0.21

    57

    35

    550

    90

    3.5

    42BY100S

    3.6

    4

    12

    0.16

    75

    37.7

    420

    60

    9.6

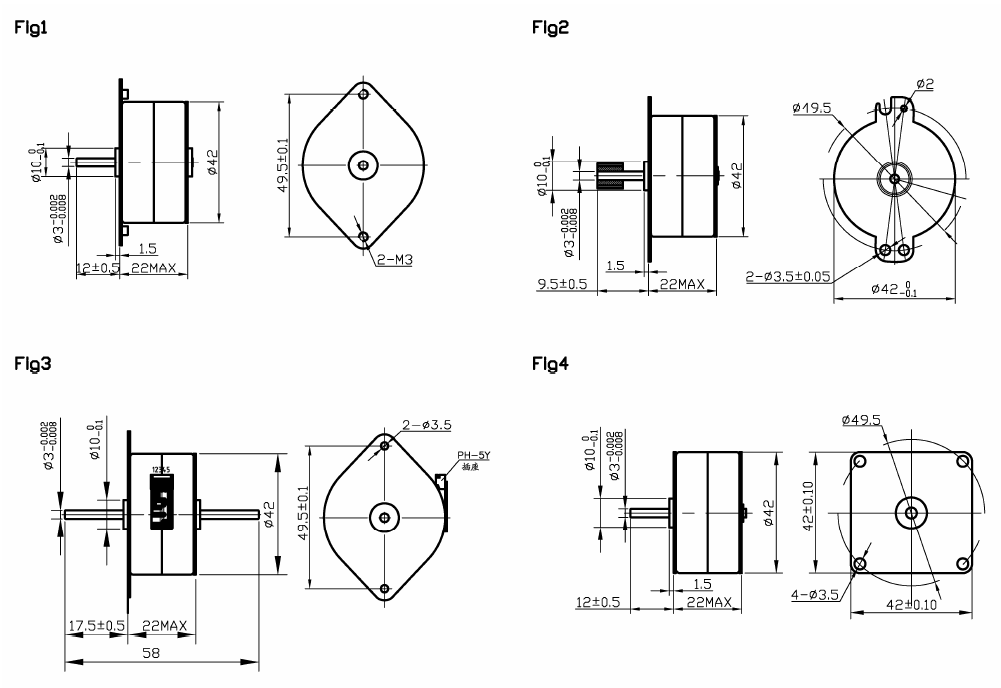

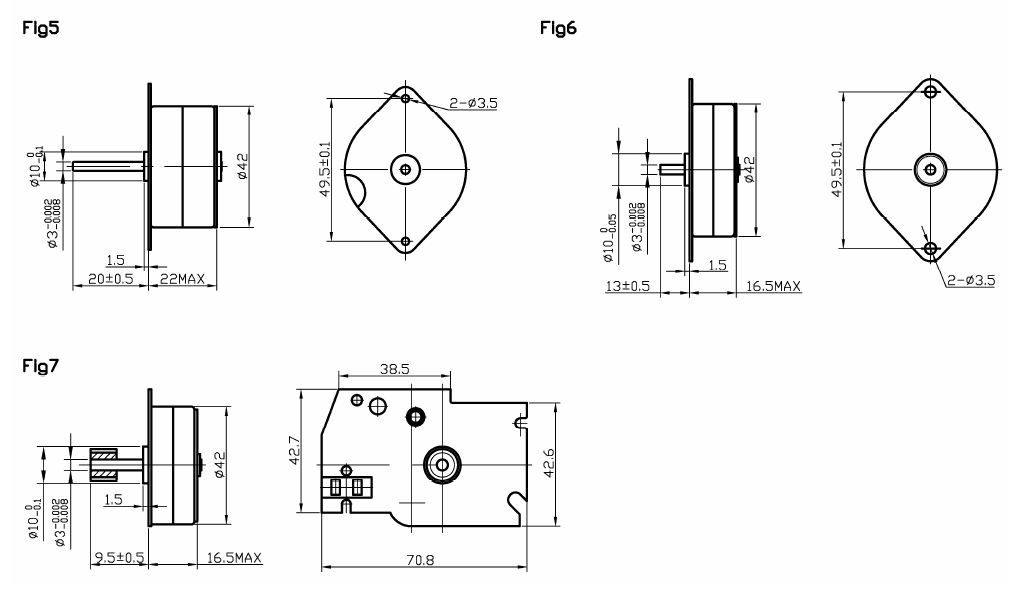

    Dimensions:
    (Unit=mm)


    NEMA 17 PM stepper motors 4 phase windings 7.5°, 12v stepper motor

    NEMA 17 PM stepper motors 4 phase windings 7.5°, 12v stepper motor

    NEMA 17 PM Stepper Motors 4 Phase Windings 7.5 Nd Fe B Magnets Be Adopted
