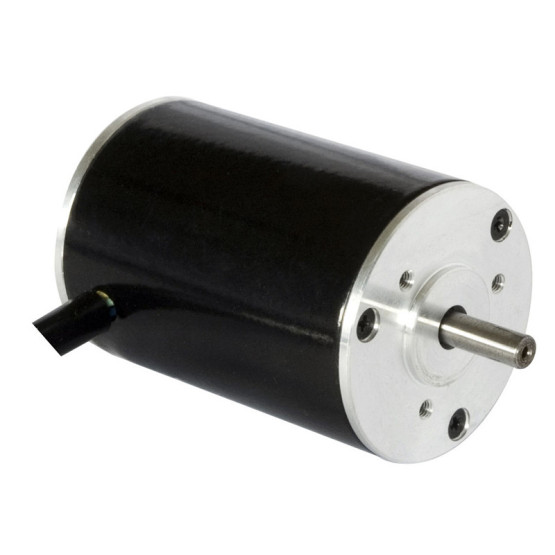

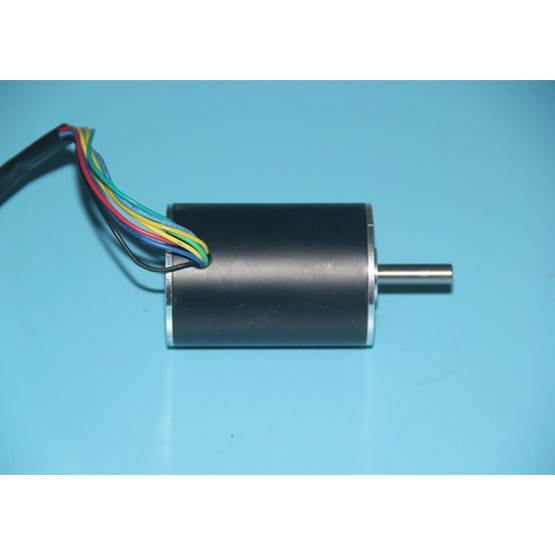

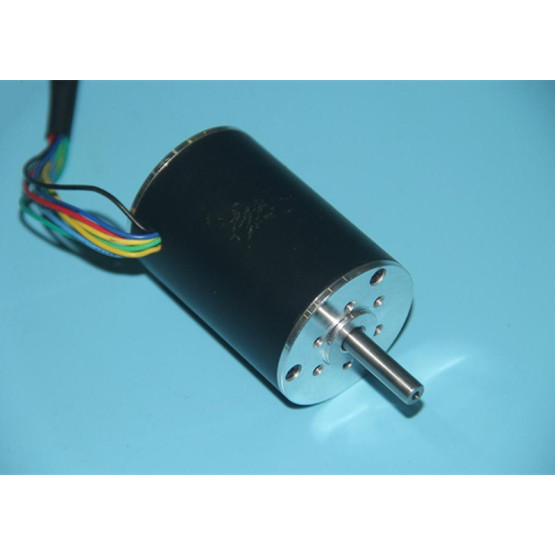

Round brushless dc motors / 24v brushless motor configuration of 4 - pole & 3 – phase

NEMA 17 Small round BLDC motors with 4-pole & 3-phase for elevator door openers

Certification:

TS-16949/RoHS/ISO14001

Model Number:

42BLY

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 19.00-29.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

15,000pcs/month



Features:

  1. Small frame size 42mm for low voltage, low torque range applications.
  2. Rugged and high-gauge steel housing has well protected the big power of Nd-Fe-B magnets installed inside the bldc motor.
  3. Well machine-turned and Aluminium alloyed die cast end caps, economically helps a lot in design.
  4. Both the commutator and brushes are nonexistent in a brushless DC motor to obviously extend the life cycle.
  5. Gear head can be introduced into the brushless dc motor to lower down the speed while increasing the torque.

Applications:

This range of products is typically applied to elevator door openers, foot massagers, and pumps for aquariums.

Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No. of Pole

No. of Phase

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

BackEMS(V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length (L)

42BLY01

24

≤0.9

3000

4

3

0.035

0.11

≤2.7

0.035

3.37

25

42

42BLY02

24

≤2.1

3000

4

3

0.07

0.21

≤6.3

0.035

3.37

35

60

42BLY03

24

≤3.0

5000

4

3

0.13

0.315

≤9.0

0.036

3.38

45

78

 Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.



Dimensions:
(Unit=mm)

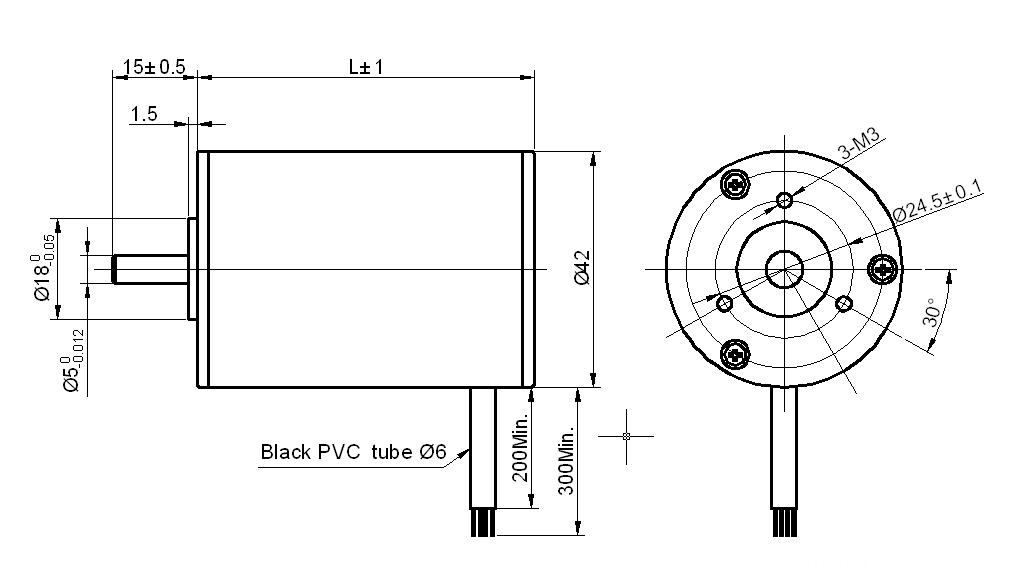

 Dimension

Wiring Diagram:

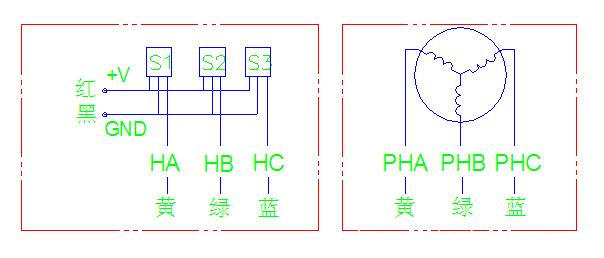

Wiring

Attention: Hall Operation Voltage: +5VDC~+20VDC



Mechanical Characteristics:

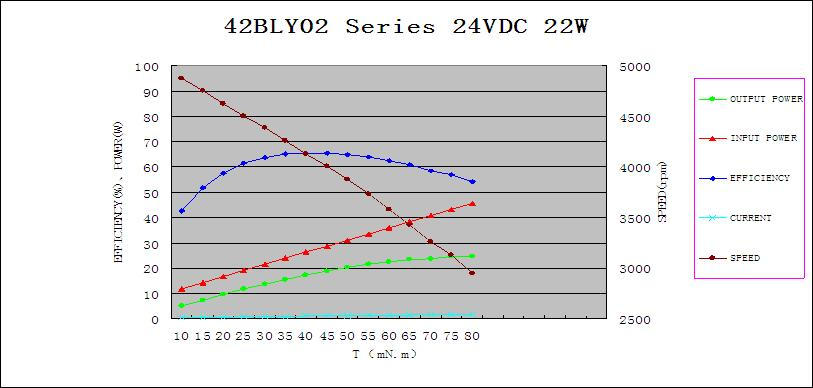

Mechanical Characteristics

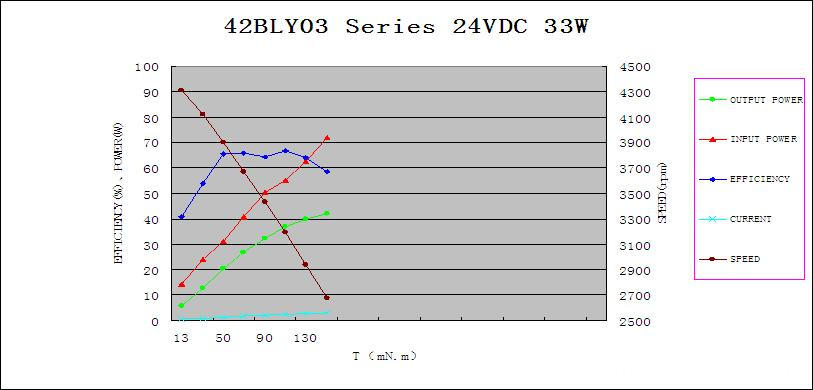

Mechanical Characteristics

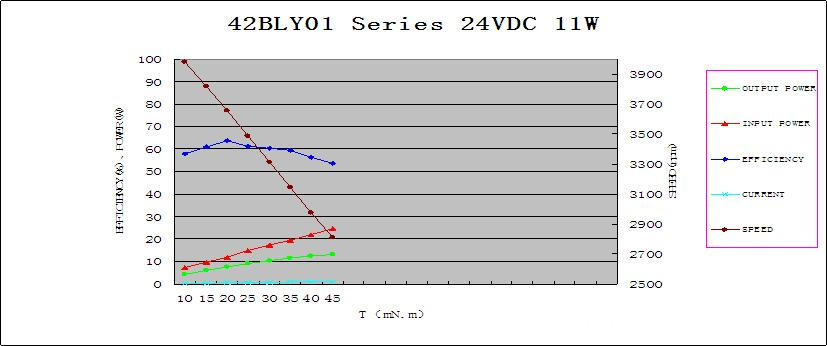

Mechanical Characteristics
