Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Delivery Time: 45 Days

Basic Info


Model No.: Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

Application: Power Tools, Car, Household Appliances, Industrial, Universal

Operating Speed: Adjust Speed

Certification: ISO9001, CCC


Additional Info


Transportation: Ocean,Air

Port: Shanghai,Nanjing,Beijing


Product Description

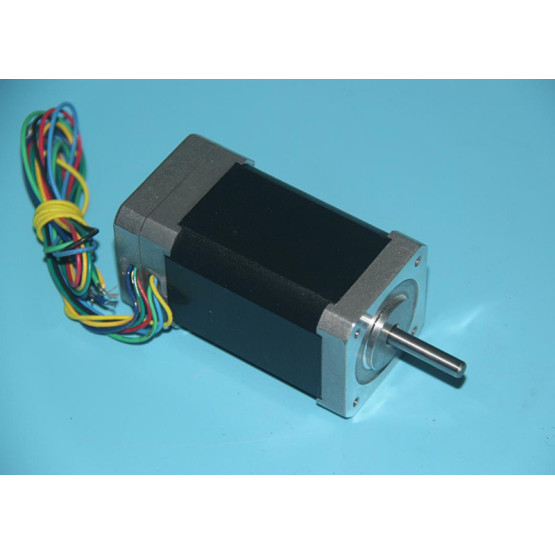

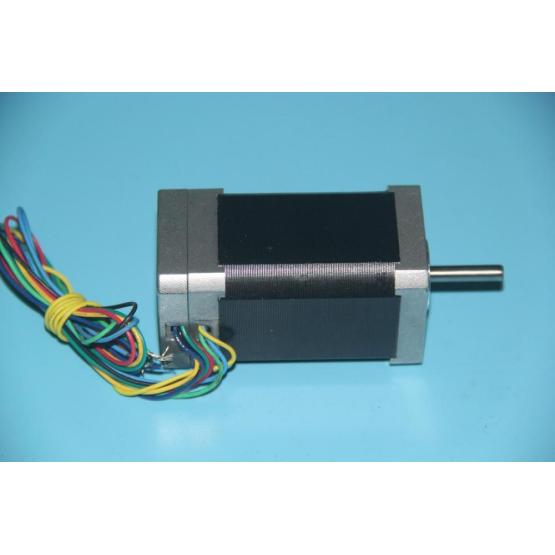

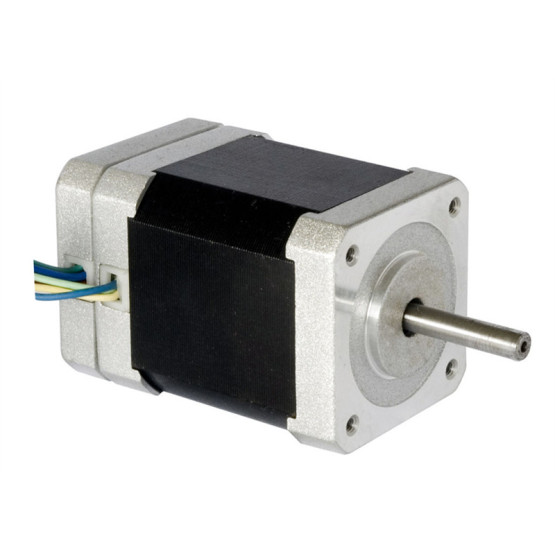

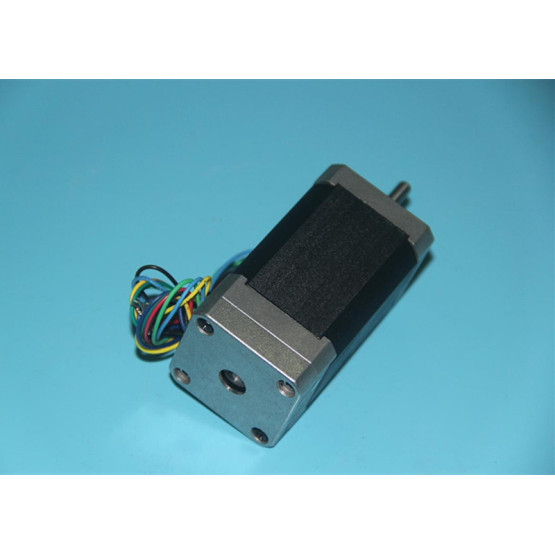

Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

Auto-stacked stator high torque brushless dc motor / stepper motor nema 17

Certification:

TS-16949/RoHS/ISO14001

Model Number:

42BLF

Payment & Shipping Terms:

Minimum Order Quantity:

500pcs

Price:

USD 29.00-35.00 per unit

Packaging Details:

Carton or negotiation

Delivery Time:

40 working days after received your payment

Payment Terms:

negotiation, T/T

Supply Ability:

15,000pcs/month



Features:

  1. The BLF 42mm brushless DC motor has been optimized in performance to run at rated voltage of 24VDC and provides a configuration of 8-pole and 3-phase.
  2. The rated speed of this series is 4000rpm.
  3. 12VDC as the nominal voltage is also available to drive the brushless motor with a cost advantage.
  4. It is constructed with Wye windings connected with Hall sensors of Honeywell brand. The Hall sensor is designed to work from +5VDC to +20VDC, which shall be seriously taken into consideration when a driver has to be properly matched with the brushless motor in motion control.
  5. Our BLDC motor survives from the working condition from -20 degree Celsius to +50 degree Celsius, and the Insulation Class B or greater can be achieved to fit any of the OEM applications.
  6. Motor body length, extended shaft and the pilot can be customized to allow you more options to power your innovation.

Applications:

The application designers would mostly like to choose the brushless DC motor for their applications such as the printers, door openers, and factory automation equipment.


Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

BackEMS(V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length  (L)

42BLF01

24

≤1.9

4000

0.063

0.18

≤5.7

0.035

3.7

24

47

42BLF02

24

≤3.4

4000

0.125

0.38

≤10.2

0.036

3.8

48

63

42BLF03

24

≤5.7

4000

0.188

0.75

≤18.0

0.036

3.8

72

79

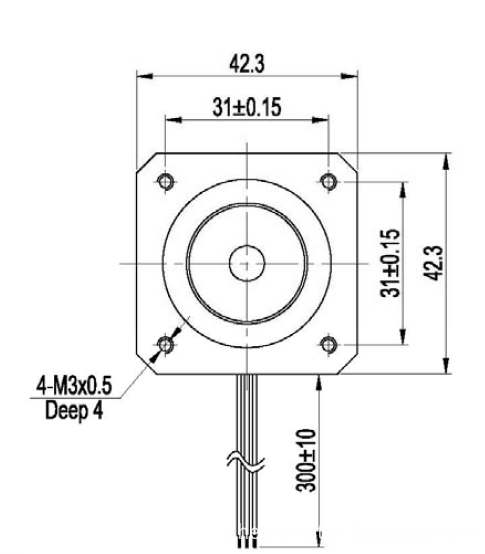

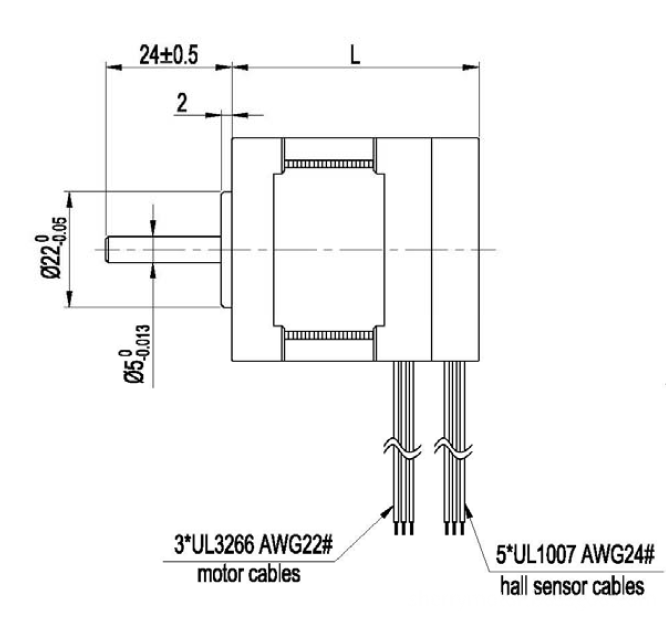

Dimensions:
(Unit=mm)

Dimension

Dimension



Tag :
high speed brushless dc motor

small brushless dc motors
