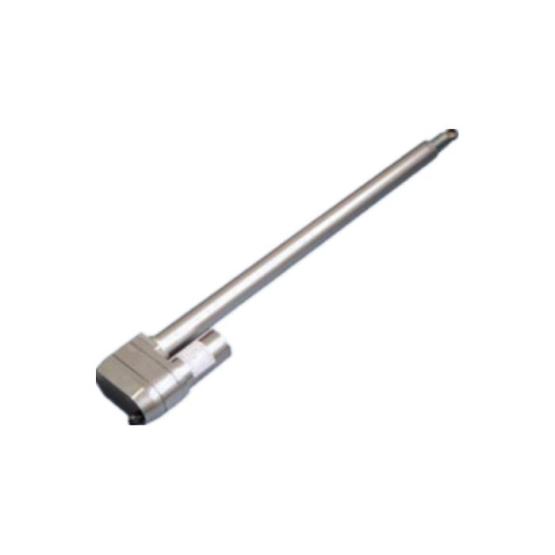

ZGZQ03 dc linear actuator/ protection level IP54 full stroke 900mm
Basic Info
Model No.: ZGZQ03 dc linear actuator
Product Description
Product Code：
DC power source / metal shells / protection level IP54 / Max. loading capacity 7000N / maximally 900mm in full stroke / maximally 12mm/s speed
Product Details:
|
Brand Name: |
Sherry Motors |
|
Model Number: |
ZGZQ03 |
|
Certification: |
UL certified /ISO9000 |
|
Place of Origin: |
China |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
100pcs |
|
Price: |
negotiation |
|
Payment Terms: |
negotiation |
|
Supply Ability: |
10000pcs/month |
|
Delivery Time: |
45 working days after received your payment |
|
Packaging Details: |
Carton or negotiation |
Features:
1、 Input voltage:12 or 24VDC.
2、 Max. loading capacity 7000N
3、 Maximally 900mm in full stroke
4、 Maximally 12mm/s speed
5、 .Gear ratio:20:1 or 40:1
6、 Duty cycle:20%
Applications:
They are perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.
Specifications:
|
Model |
ZGZQ03 |
|
Input |
12/24VDC |
|
Load Capacity |
7000N (Ball Screw) 4500N (ACME) |
|
Speed Max |
12mm/s |
|
Standard Stroke |
500 550 600 650 700 750 800 850 900 |
|
Gear Ratio |
20:1 40:1 |
|
Duty Cycle |
20% |
|
Protection Level |
IP54 |
|
Operation Temperature |
-26℃~+65℃ |
|
ZGZQ03 |
-24 Voltage 12 12VDC 24 24VDC |
-20 Ratio 20 20:1 40 40:1 |
-B Screw Type A ACME B Ball Screw |
-05 Lead 05 5TPI |
-300 Stroke 300 300mm 900 900mm |

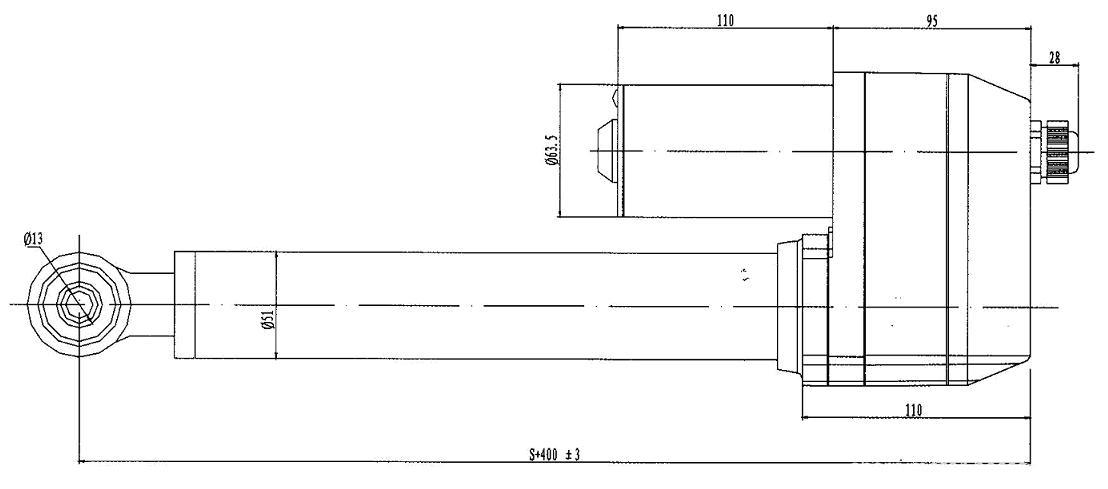

Dimensions:
