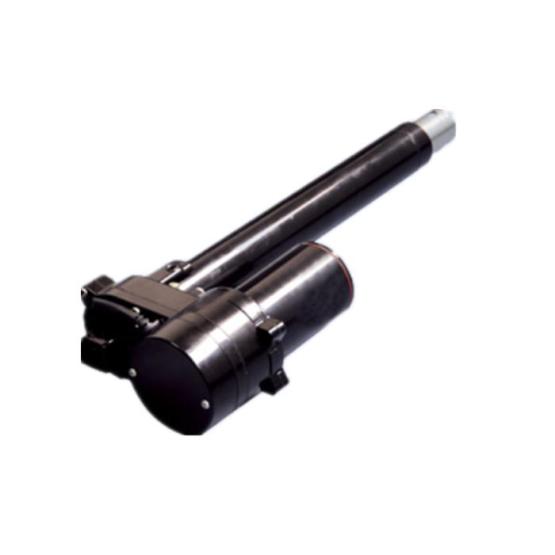

ZGZQ05 dc linear actuator/ metal shell with max loading capacity 2000N
Basic Info
Model No.: ZGZQ05 dc linear actuator
Product Description
Product Code：
DC power source / metal shells / protection level IP3X / Max. loading capacity 2000N / maximally 300mm in full stroke / maximally 6.8mm/s speed
Product Details:
|
Brand Name: |
Sherry Motors |
|
Model Number: |
ZGZQ05 |
|
Certification: |
UL certified /ISO9000 |
|
Place of Origin: |
China |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
100pcs |
|
Price: |
negotiation |
|
Payment Terms: |
negotiation |
|
Supply Ability: |
10000pcs/month |
|
Delivery Time: |
45 working days after received your payment |
|
Packaging Details: |
Carton or negotiation |
Features:
1、 Input voltage:24 or 36VDC.
2、 Max. loading capacity 2000N
3、 Maximally 300mm in full stroke
4、 Maximally 6.8mm/s speed
5、 .Gear ratio:20:1
6、 Duty cycle:20%
Applications:
They are perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.
Specifications:
|
Model |
ZGZQ05 |
|
Input |
24/36VDC |
|
Load Capacity |
2000N |
|
Speed Max |
6.8mm/s |
|
Standard Stroke |
50 100 150 200 250 300 |
|
Gear Ratio |
20:1 |
|
Duty Cycle |
20% |
|
Protection Level |
IP3X |
|
Operation Temperature |
-26℃~+45℃ |
|
ZGZQ05 |
-24 Voltage 24 24VDC 36 36VDC |
-20 Ratio 20 20:1 |
-A Screw Type A ACME |
-06 Lead 06 6TPI |
-100 Stroke 100 100mm 300 300mm |

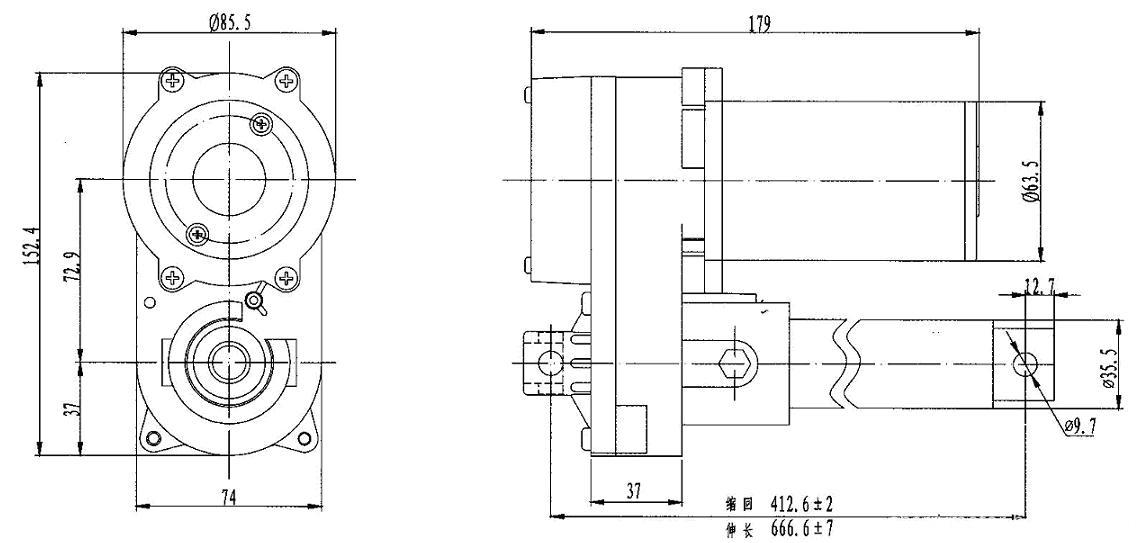

Dimensions:
